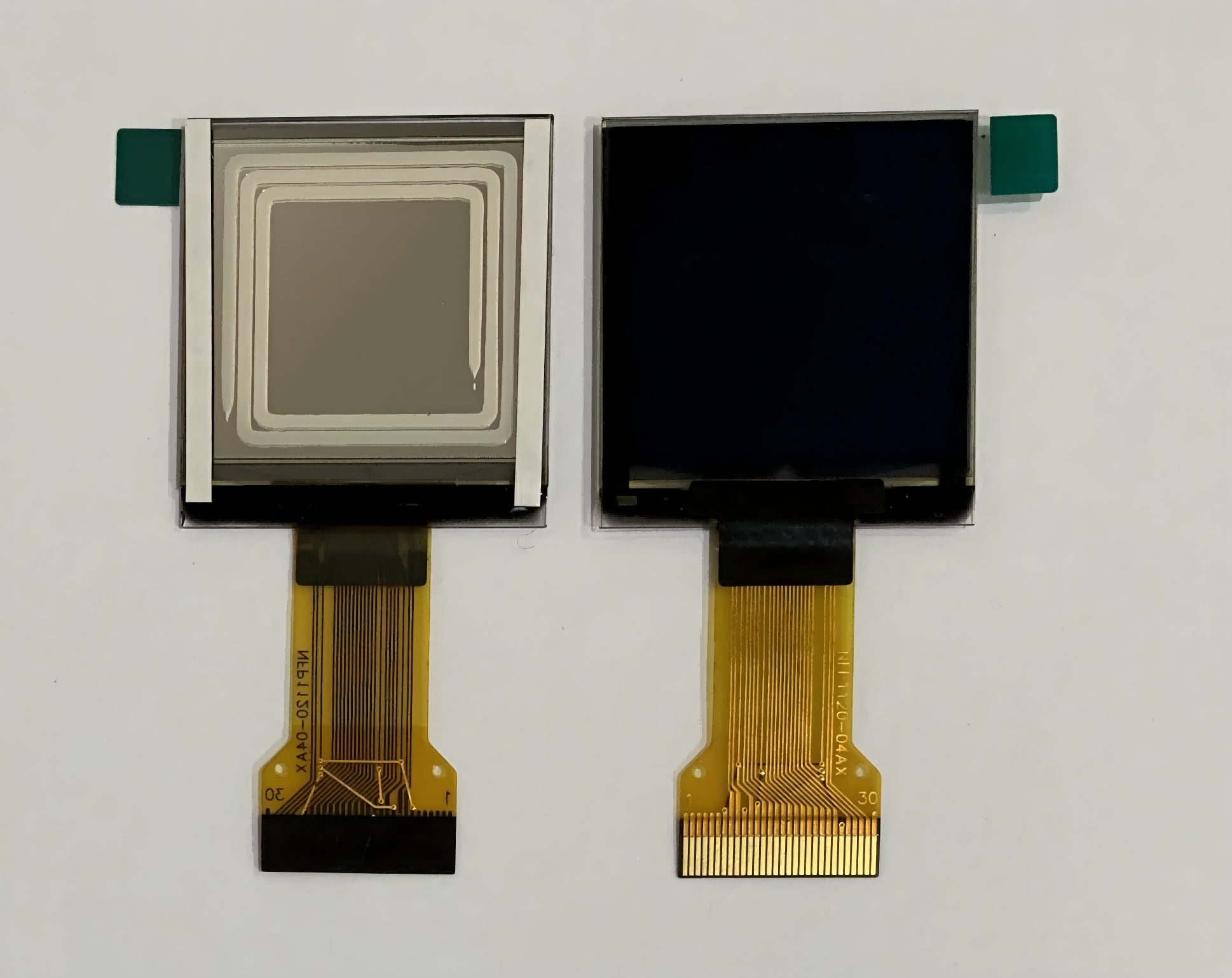

1.4'' 1.4inch oled display panel 160x160 small oled display multi-Interface square shape oled
- Overview
- Recommended Products
Driver IC:CH1120
Interface:
8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Color options:White

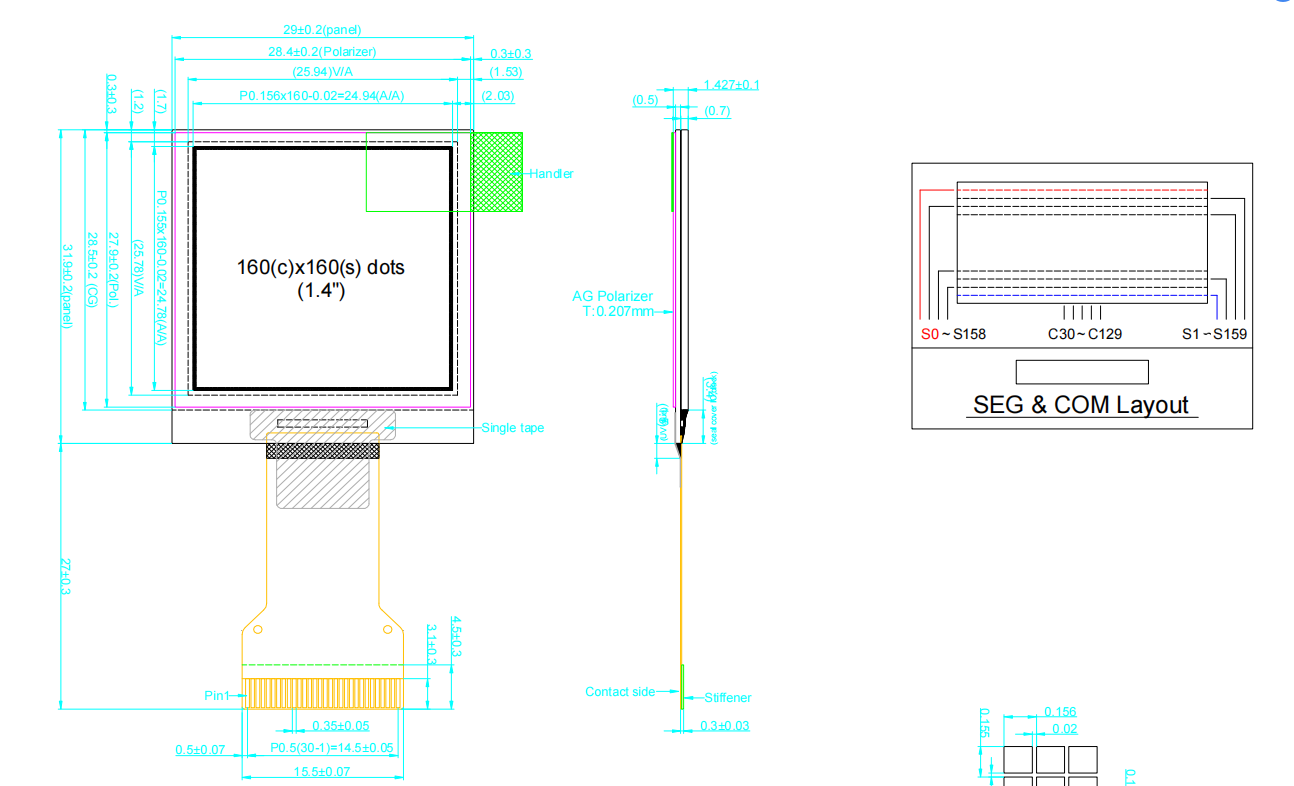

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 160 x 160
3) Panel Size: 29 x 31.9 x 1.427 (mm)
4) Active Area: 24.94 x 24.78 (mm)
5) Pixel Pitch: 0.156 x 0.15 (mm)
6) Pixel Size: 0.136 x 0.135(mm)
