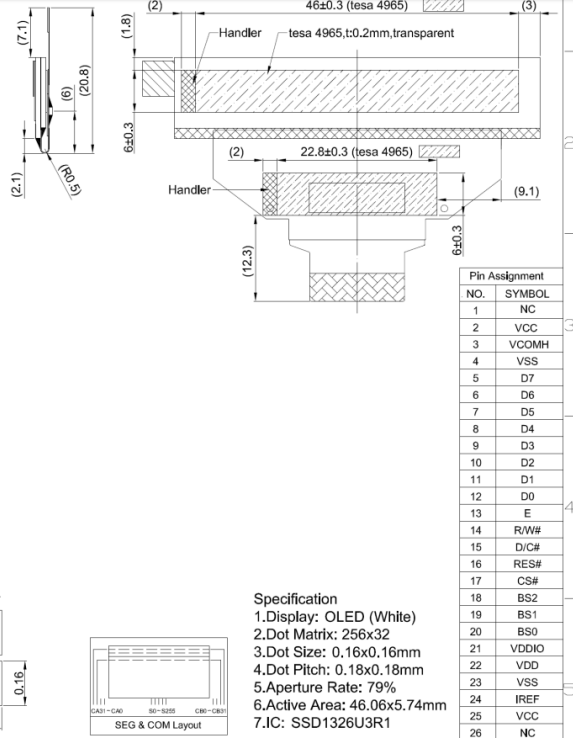

Driver IC:SSD1326
Interface:Parallel/I²C/4-wireSPI
Color options:White
1 Dot Matrix256 (W) x 32 (H)dot
2 Dot Size:0.16 (W) x 0.16 (H)
3 Dot Pitch:0.18 (W) x 0.18 (H)
4 Aperture Rate:79%
5 Active Area:46.06 (W) x 5.74 (H)
6 Panel Size:52 (W) x 11.5 (H)

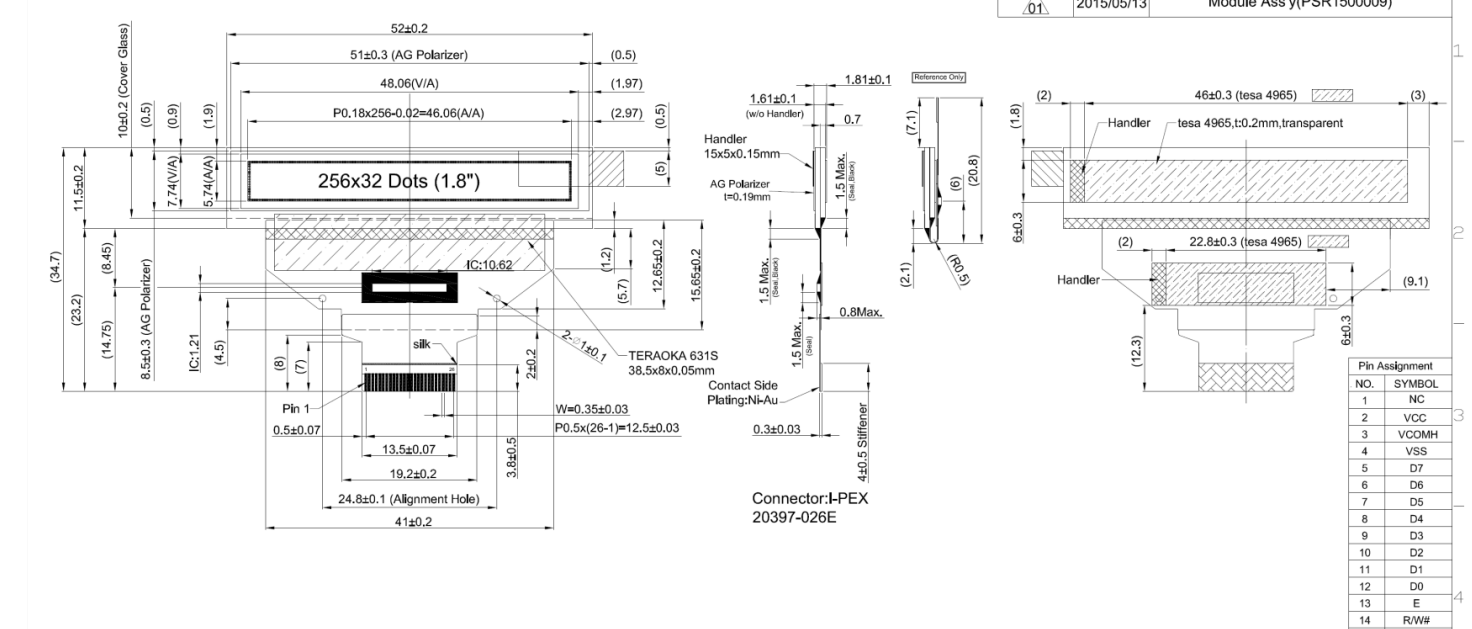

8 Module Size:52 (W) x 34.7 (H) x 1.81 (D)
9 Diagonal A/A size:1.8inch
FEATURES
Small molecular organic light emitting diode.
Color : White
Panel matrix : 256*32
Driver IC : SSD1326
Excellent quick response time.
Extremely thin thickness for best mechanism design : 1.81mm
High contrast : 10,000:1
Wide viewing angle : 160
8-bit 6800-series Parallel Interface, 8-bit 8080-series Parallel Interface,
Serial Peripheral Interface and I2C Interface.
Wide range of operating temperature : -40 to 85 °C
Anti-glare polarizer.
