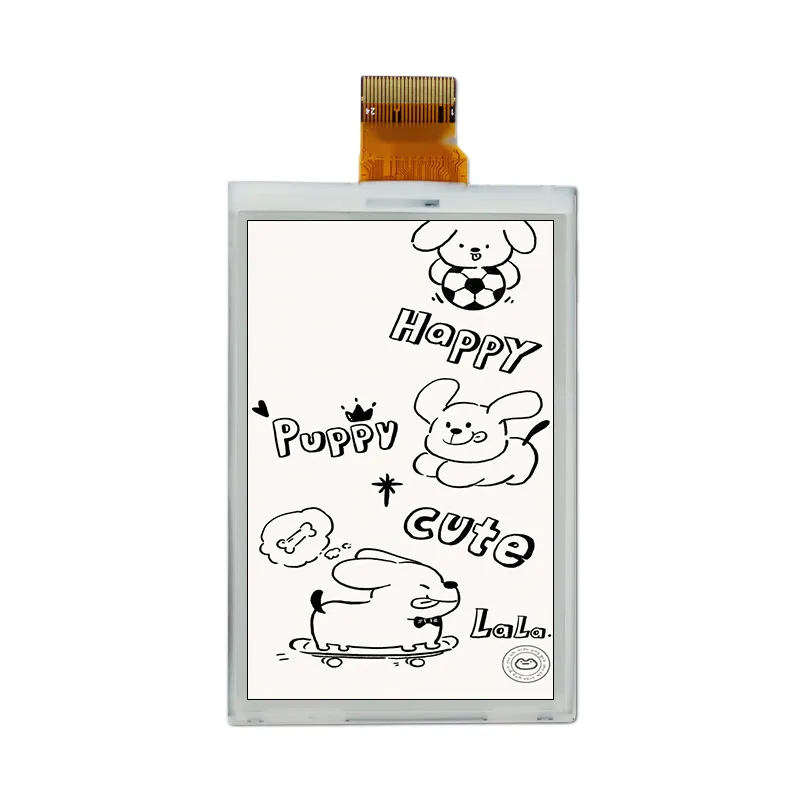

How an E Ink Display Works: The Science of Electronic Ink

Electrophoretic Physics: How Electric Fields Move Pigment in an E Ink Display

Core electrophoretic principle: Charged pigment particles in suspension

E Ink displays work based on something called electrophoretic physics. Basically, there are tiny pigment particles that carry electrical charges floating around in a clear fluid inside microscopic capsules or little cups. When there's no electricity running through them, these particles just hang out evenly spread throughout the display. Now here's where it gets interesting. When we apply an electric field, those charged particles start moving because of what scientists call Coulomb forces. The white ones, which are usually made from titanium dioxide, get pulled one way when we apply negative voltage. Meanwhile, the black particles, often carbon black, move in the opposite direction when positive voltage is applied. This whole dance of charged particles creates images at the pixel level. What makes this technology so special is how stable everything stays. The suspension remains steady thanks to some clever chemistry work on surfaces and solvents. This means the display keeps its sharpness and contrast even though it doesn't need constant power to maintain what it shows.

Directional movement under voltage: White vs. black particle behavior

The polarity of voltage has a major impact on which pigment layer becomes visible to viewers. When there's a negative electric field, it pushes the negatively charged black particles down below while pulling the positively charged white particles up towards the surface, creating what looks like a white pixel. Things flip when we apply a positive field instead. Suddenly those black particles float right to the top, making everything appear black. This simple on/off switching based on voltage creates images with really good contrast without needing any kind of backlighting behind the display. The technology works great for things like e-readers where battery life matters a lot since there's nothing extra consuming power in the background.

Crucially, once particles settle at their target electrode, interfacial forces and surface energy barriers lock them in place a hallmark of bistability that eliminates static power draw and defines E Ink s ultra-low-energy operation.

Microcapsule and Microcup Architecture: Engineering the E Ink Display Layer

Encapsulation design: Microcapsules vs. microcups for stability and resolution

The way E Ink holds its pigment suspension comes down to two main designs: one uses polymer microcapsules, the other relies on microcups created through lithography. Let's start with microcapsules first. These are basically tiny spheres made either by coacervation or interfacial polymerization methods. They work well for displays that need to bend and flex, but there's a catch. Because they don't pack together perfectly and leave spaces between them, this limits how sharp the images can get. Now microcups tell a different story altogether. Instead of those flexible spheres, we have rigid little cavities with carefully shaped walls that create each pixel individually. This regular shape means displays can pack more pixels per inch, sometimes over 300 PPI, and stops colors from bleeding into neighboring areas. Plus, since these cups are sealed tight, they last longer without degrading. And here's another bonus: the sealed design opens up possibilities for multiple pigments inside, which makes color e-paper actually feasible.

Material science: Titanium dioxide, carbon black, and nonpolar solvent roles

The white pigment in these materials comes from titanium dioxide nanoparticles. These particles carry a positive charge, reflect light very well, and stay stable even when exposed to normal environmental conditions. For the black counterpart, carbon black is used. It's designed to maintain a steady negative surface charge while absorbing light effectively. When making these materials, manufacturers disperse both pigments into special solvents that don't evaporate easily and remain clear, like isoparaffin or squalane. What makes these solvents so important? They reduce energy losses during operation, stop ions from moving where they shouldn't, and allow the pigment particles to move freely within the material. This free movement is exactly what enables those fast responses seen in electrophoretic displays. The fact that these solvents don't react chemically and barely evaporate means E Ink displays can last for years, sometimes even decades, before needing replacement.

Bistability and Ultra-Low Power Operation: The Defining Advantage of E Ink Display

Zero-power image retention: How bistability eliminates constant refresh

What makes E Ink so efficient? It has this thing called bistability, basically meaning it can keep showing whatever image it's displaying forever without needing any electricity. Most screens today, like those LCDs or OLEDs we see everywhere, need constant power applied just to keep pixels where they are, plus they refresh the whole screen dozens of times every second. But E Ink works differently because of how particles settle into place. When these tiny particles get moved around by electric fields, they stick around thanks to forces like van der Waals attraction, trapped charges on surfaces, and the thickness of the surrounding liquid. No extra power required once they're set. That's why e-readers can sit on a shelf for weeks with a single battery charge, only using energy when new text needs to appear. According to testing standards from organizations like ISO/IEC 19794-5, real bistability means images stay put for over 24 hours without power. And guess what? Commercial E Ink displays actually meet this requirement pretty reliably across different products.

Energy comparison: E Ink display vs. LCD/OLED in real-world use cases

When looking at devices meant primarily for reading documents, E Ink technology absolutely shines compared to regular LCD screens. We're talking about around 99% less power consumption for the same size display. Take a standard 12 inch screen as an example. An E Ink panel will draw only 28 milliwatts when updating the whole screen, whereas a similar sized LCD would need over 1 watt just to stay on continuously. What does this mean in practice? Most people who have used both know the difference firsthand. Backlit tablets tend to run out of juice within a day or two even with light use, while proper e-readers can go months on a single charge if someone reads for about half an hour each day. Why such a big gap? Partly because E Ink displays maintain their image without constant power, but also because they don't need all those energy draining parts found in traditional screens like backlights, color filters, and complicated driver circuits. Looking at the bigger picture, these savings add up over time. Fewer charges needed means less heat generated inside the device and ultimately a smaller carbon footprint overall. The International Energy Agency actually did some research on this and included their findings in their 2023 report on digital energy efficiency, which backs up what we see in everyday use.

Performance Trade-offs and Real-World Applications of E Ink Display Technology

E Ink really shines when we need something readable in bright sunlight, super low power consumption, and content that stays visible for long periods without changing much. That's why it dominates the market for e-readers, those digital price tags on store shelves (called ESLs), and various public display applications. The way E Ink reflects light instead of emitting it makes reading outside on a sunny day practically effortless. Plus, because it doesn't constantly draw power to maintain images, some ESL systems can last months between charges since they only update prices once or twice daily at most. But there are definite downsides holding back wider use. Refresh speeds just cant compete with traditional LCD or OLED screens taking tens to hundreds of milliseconds per frame update. Grayscale changes sometimes leave faint traces or "ghosting" effects unless manufacturers fine tune their waveform algorithms properly. And even though color versions exist now, they still fall short compared to emissive displays when it comes to vibrant colors and consistent appearance from different angles.

What makes E Ink special isn't that it replaces everything else out there, but rather that it solves specific problems where other displays fall short. Take those tiny IoT sensors for instance. They can run for years on just a small coin cell battery thanks to how little power they actually need when sitting idle. Smartwatches and fitness trackers benefit too from their screens staying visible even in bright sunlight without draining the battery so fast. Bus stops around town rely heavily on these displays because they work reliably across extreme temperatures from freezing cold to hot summer days. The technology keeps evolving as well. Manufacturers are working on faster refresh rates and better colors while production gets cheaper over time. We're starting to see E Ink show up in unexpected places now like labels that can be reused multiple times instead of being thrown away after one use, and also in stores where customers can browse products without worrying about screens turning off every few minutes. All this progress still builds upon the same basic principle that made E Ink stand out from day one.

FAQ

What is electrophoretic physics?

Electrophoretic physics involves the movement of charged particles in a fluid under the influence of an electric field, which is the core principle behind E Ink displays.

How do E Ink displays differ from traditional LCDs?

Unlike LCDs, E Ink displays do not require constant power to maintain an image, making them more energy-efficient. They work by reflecting light, which is ideal for reading in bright sunlight.

What is bistability in E Ink technology?

Bistability refers to the capability of E Ink displays to retain an image without power, reducing energy consumption and enhancing battery life significantly.

What are microcapsules and microcups in E Ink displays?

Microcapsules and microcups are structures used to hold pigment particles in E Ink displays. Microcapsules provide flexibility, while microcups offer higher resolution and stability.

Why are E Ink displays efficient for electronic readers?

E Ink displays consume much less power, offer better readability in sunlight, and can hold an image without power, making them perfect for devices like e-readers.
