Driver IC:SSD1312
Interface:I²C
Color options:White
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/28 Duty
Mechanical Specifications

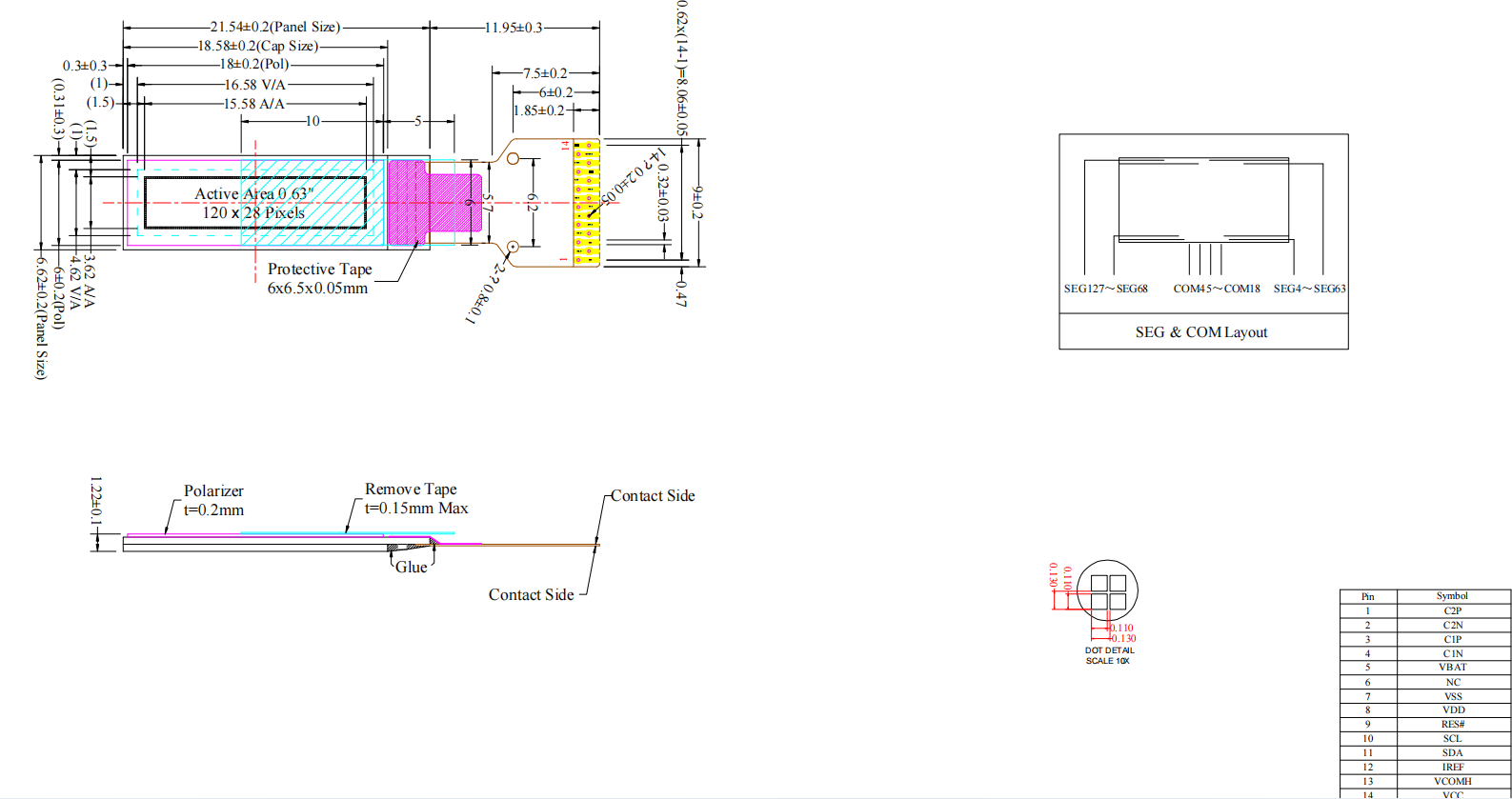

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 120 x 28
3) Panel Size: 21.54 x 6.62 x 1.22 (mm)
4) Active Area: 15.58 x 3.62 (mm)
5) Pixel Pitch: 0.13 x 0.13 (mm)
6) Pixel Size: 0.11 x 0.11 (mm)
