3.38" 3.38inch Bar LCD Screen MIPI 3.7 inch Tft Lcd Display 180x640 Stretched Bar 3.38inch driver IC AXS15230
- Overview
- Recommended Products
Size:3.38inch bar LCD display panel
Drive element:a-Si TFT

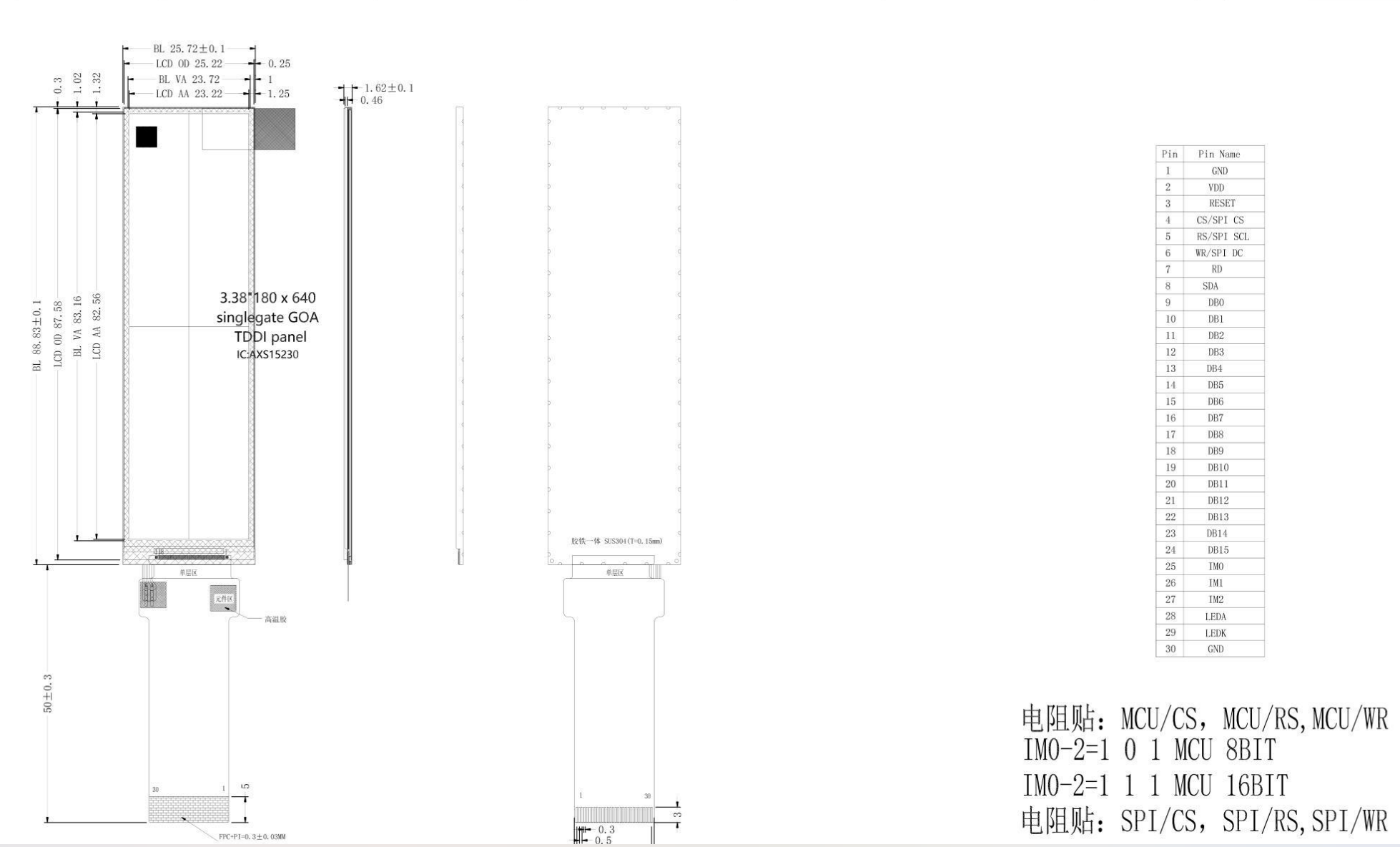

LCM outline size:25.72 (H) x88.83 (V)mm
Active area:23.22 (H) x 82.56(V)mm
Number of pixels:180(H)X640(V)pixels
Pixel arrangement:RGB stripe
Pixel Pitch:129x129
Display color:16.7m color
Viewing direction:ALL
Controller / Driver:AXS15230
Data interface:SPI/MCU
Backlight:4 White LEDs In Parallels
