0.71" 0.71inch white color type 14 pin 48 x 64 resolution soldering oled display panel SPI I2C interface
- Overview
- Recommended Products
Driver IC:SSD1306
Interface:SPI/ I²C
Color options:White

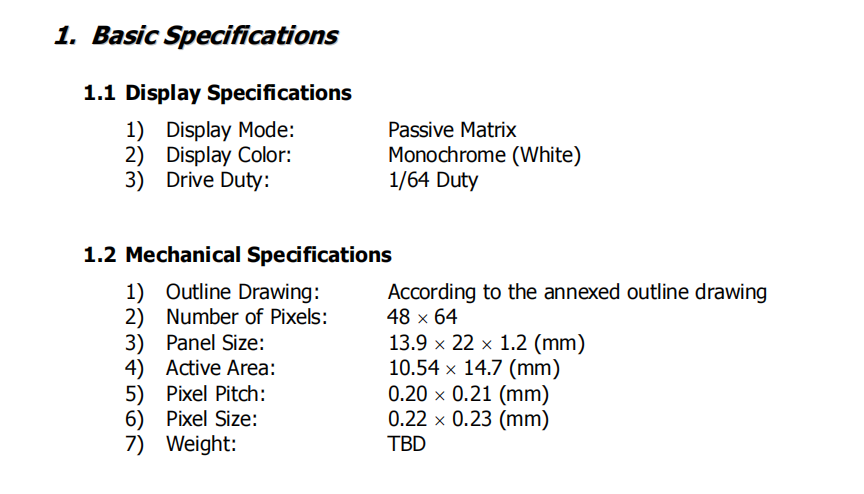

Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/64 Duty
Mechanical Specifications

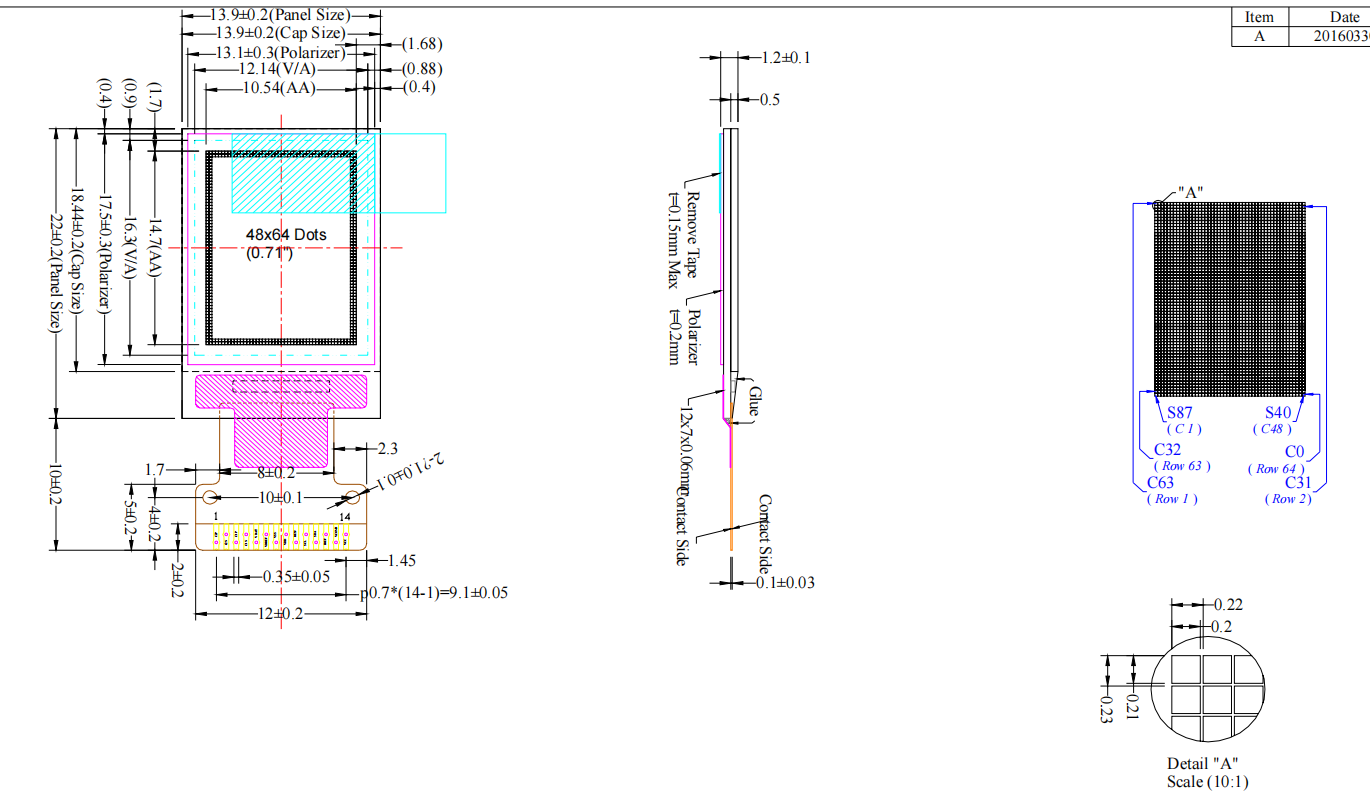

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 48 × 64
3) Panel Size: 13.9 × 22 × 1.2 (mm)
4) Active Area: 10.54 × 14.7 (mm)
5) Pixel Pitch: 0.20 × 0.21 (mm)
6) Pixel Size: 0.22 × 0.23 (mm)
7) Weight: TBD
