2.06inch square amoled display panel ONCELL Touch Panel 410x502 C05300 MIPI SPI MCU Interface Full Color Am Oled Display
- Overview
- Recommended Products

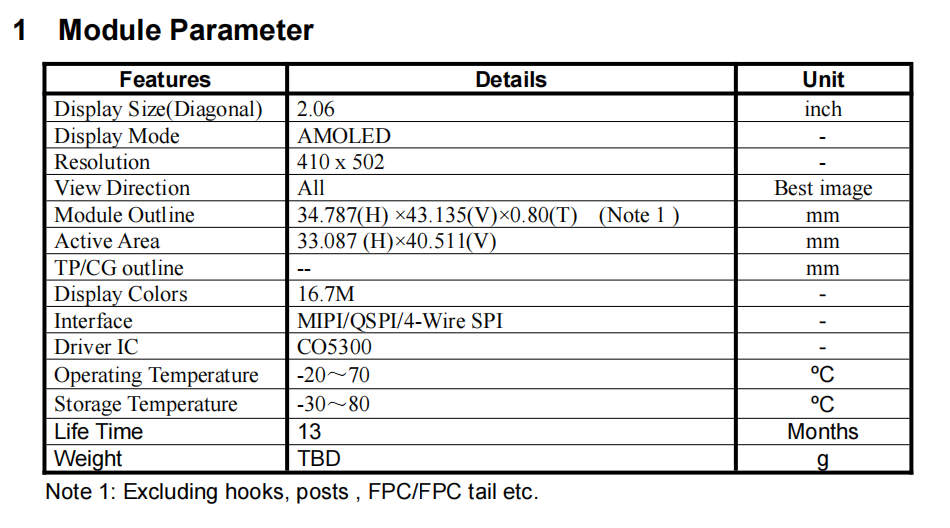

Display Size(Diagonal)：2.06inch
Display Mode:AMOLED
Resolution:410 x 502
View Direction:all

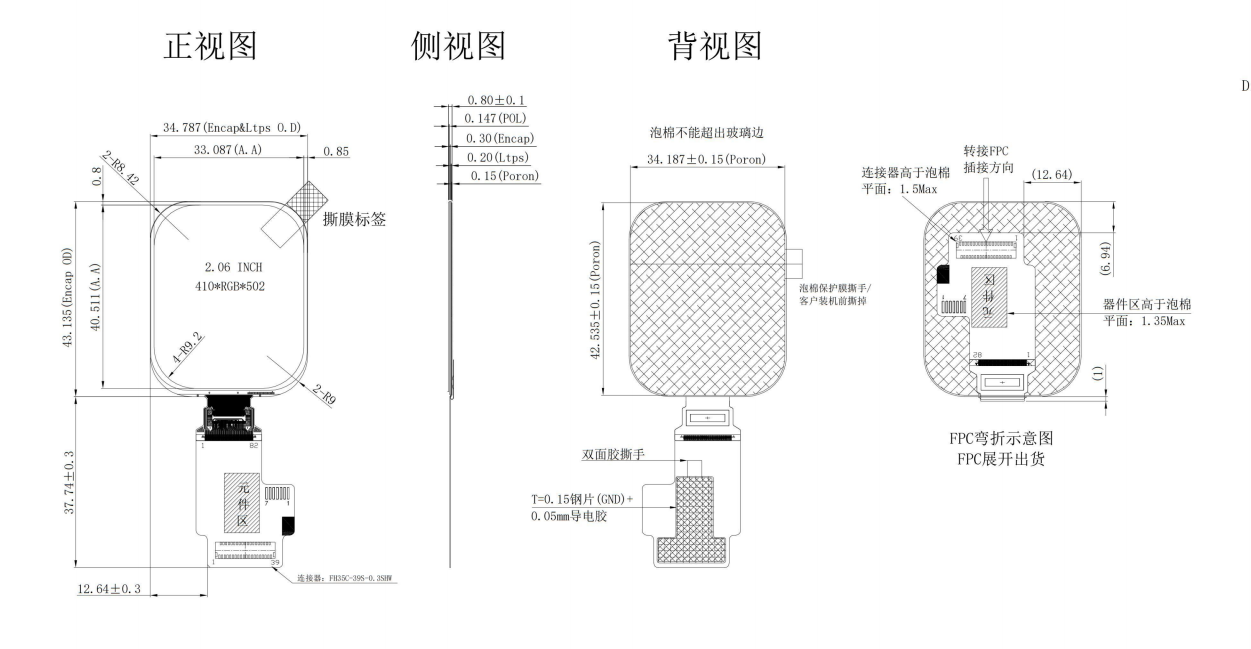

Module Outline:34.787(H) ×43.135(V)×0.80(T)
Active Area:33.087 (H)×40.511(V)
Display Colors:16.7M
Interface:MIPI/QSPI/4-Wire SPI
Driver IC:CO5300
Operating Temperature:-20～70 ºC
Storage Temperature:-30～80 ºC
