OLED Modoule(PCB)

ALL PRODUCTS

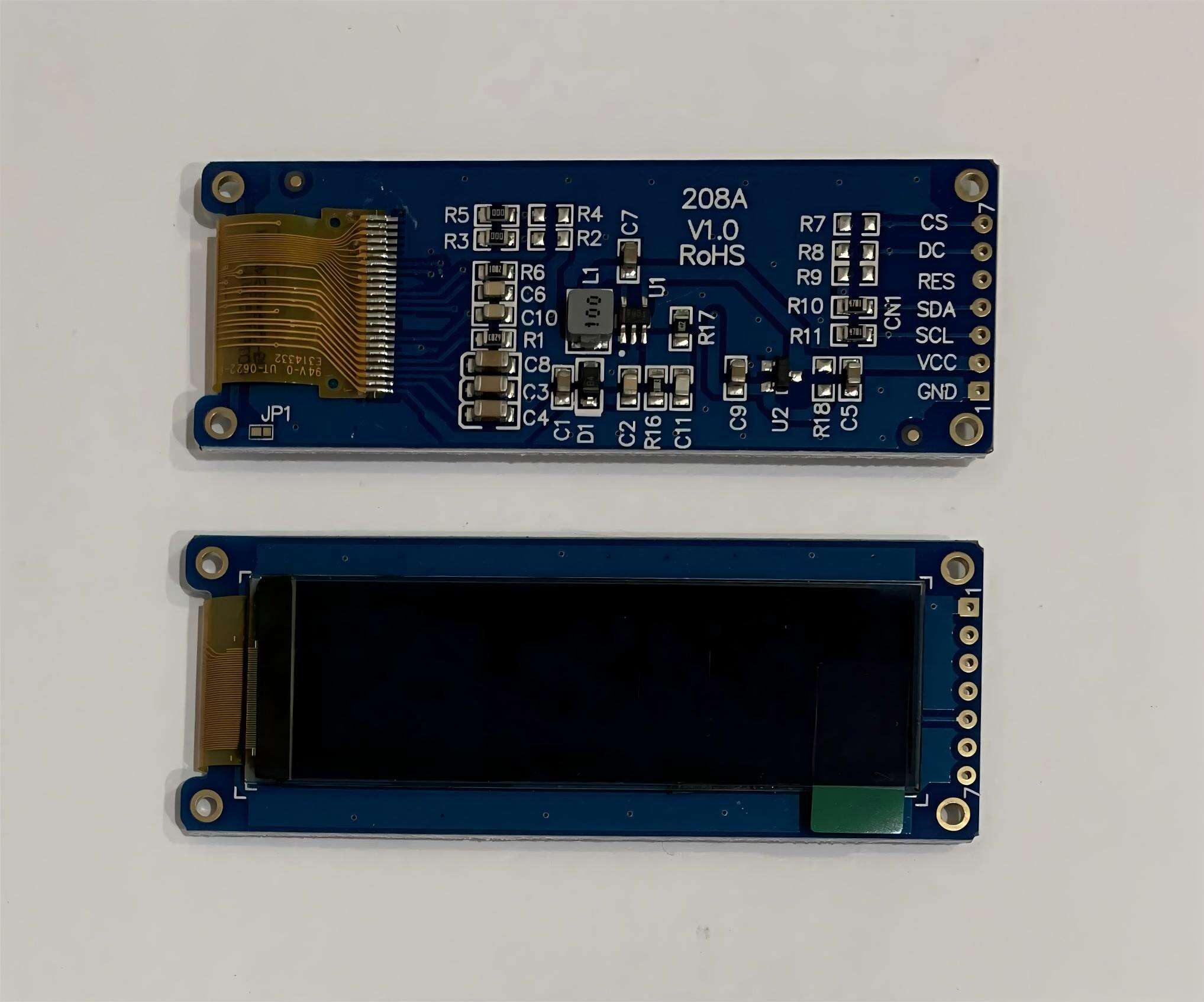

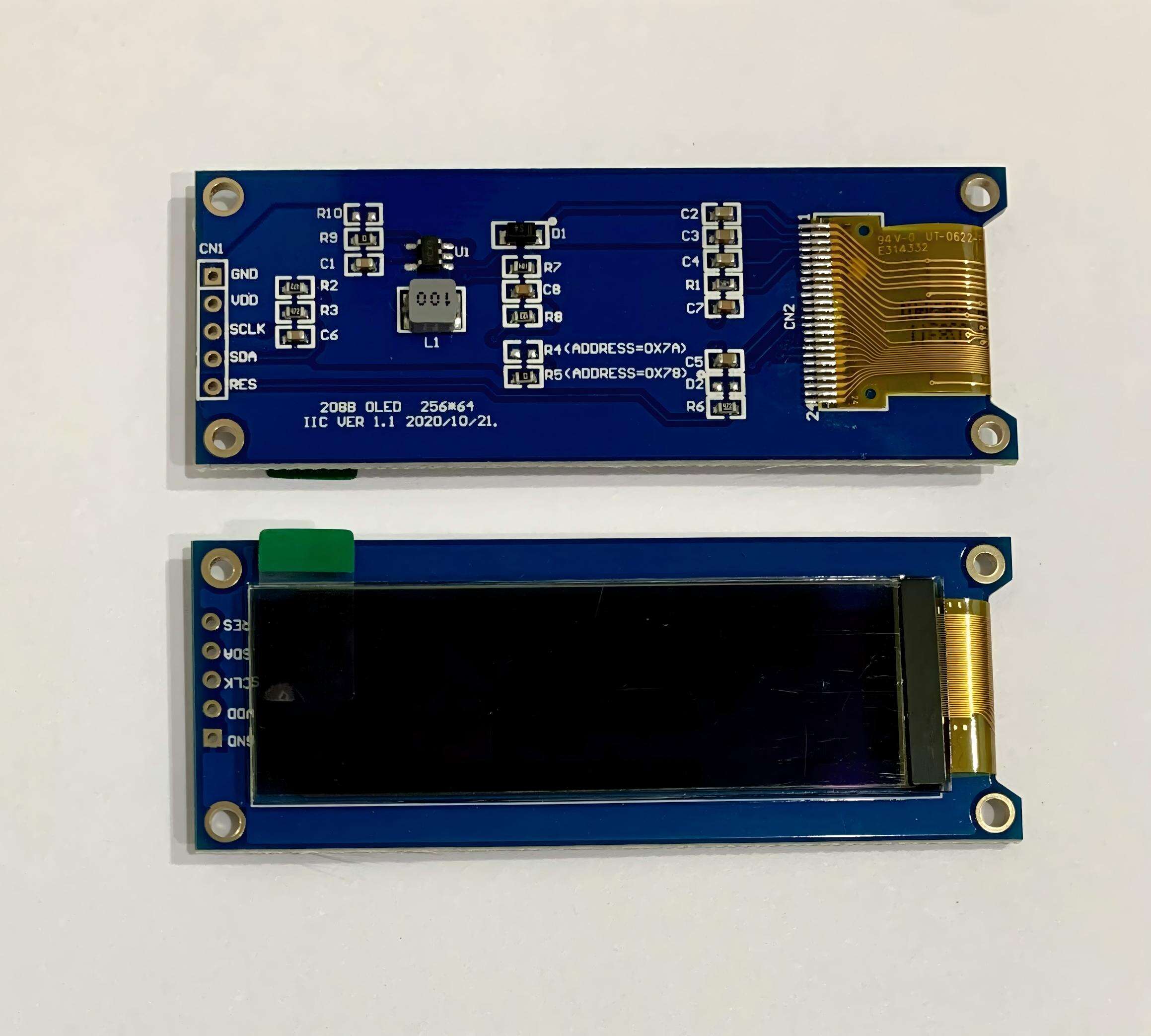

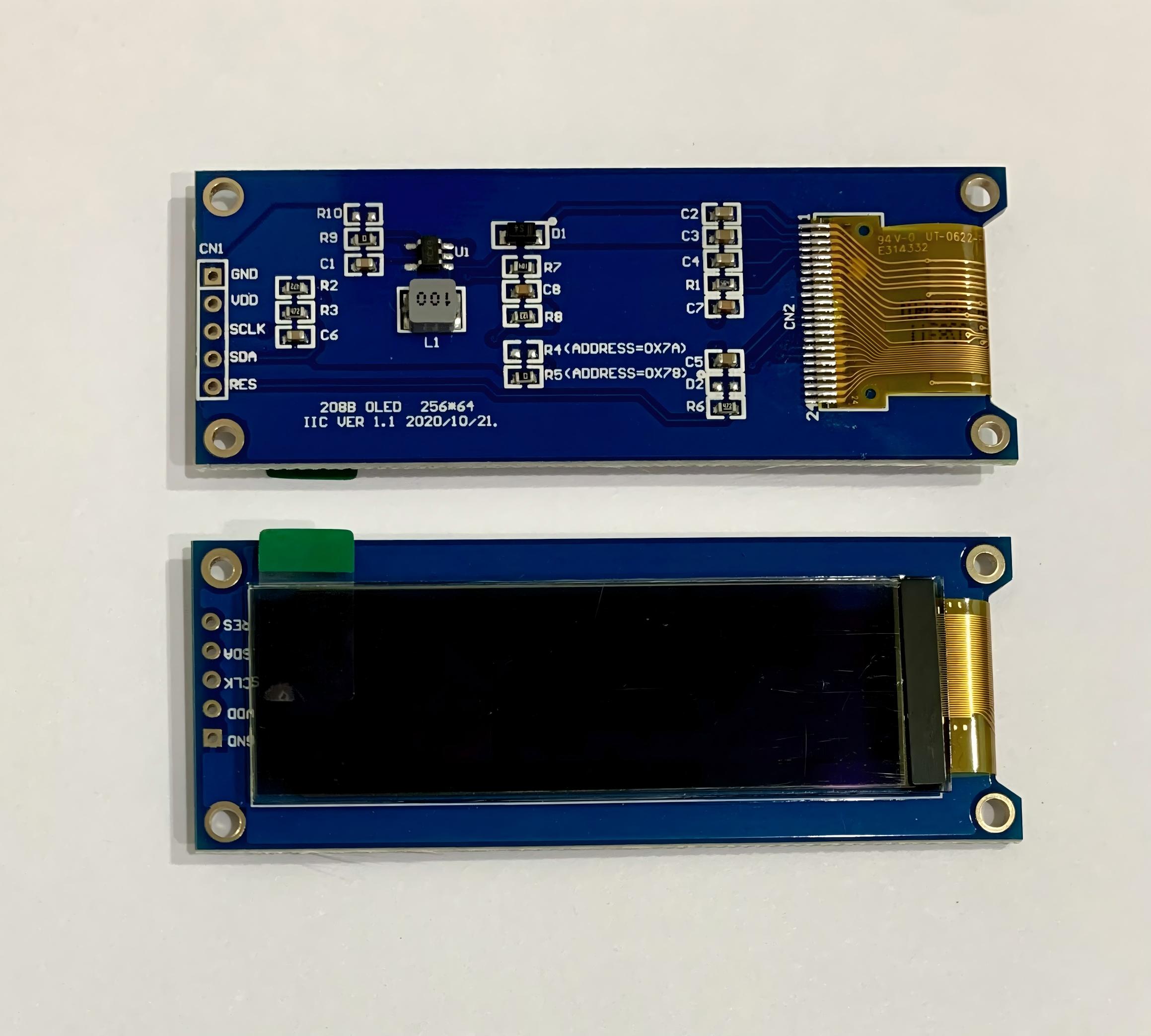

2.08inch oled display module 256X64 Spi I2c Interface Sh1122 Driver 7 Pin 5pin OLED Display
2.08inch oled display module 256X64 Spi I2c Interface Sh1122 Driver 7 Pin 5pin OLED Display
2.08inch oled display module 256X64 Spi I2c Interface Sh1122 Driver 7 Pin 5pin OLED Display
2.08inch oled display module 256X64 Spi I2c Interface Sh1122 Driver 7 Pin 5pin OLED Display
2.08inch oled display module 256X64 Spi I2c Interface Sh1122 Driver 7 Pin 5pin OLED Display
2.08inch oled display module 256X64 Spi I2c Interface Sh1122 Driver 7 Pin 5pin OLED Display

2.08inch oled display module 256X64 Spi I2c Interface Sh1122 Driver 7 Pin 5pin OLED Display

Pin:
Inquiry
  • Overview
  • Recommended Products
FUNCTIONS & FEATURES
Features
- 256X64 dots
- Font Color: YELLOW/WHITE/BULE
- Driver IC:SH1122
- 3/4-wire SPI, IIC
MECHANICAL SPECIFICATIONS
Module Size:72.5L×27.24W×5.3H（MAX）mm
View Area:53.18×14.78mm
Effective Area:51.18×12.78mm
Pixel Size:0.18×0.18mm
Pixel Pitch:0.20×0.20mm
