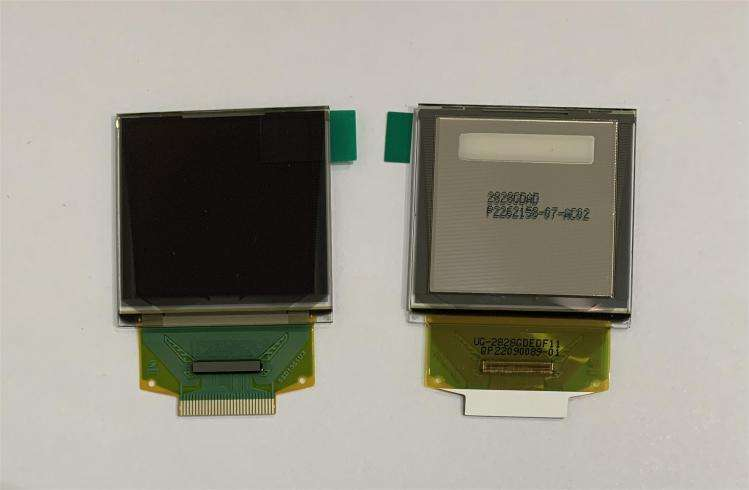

1.5" 128x128 pixels colourful oled screen UG-2828GDEDF11 Parallel SPI ssd1351 small oled display panel
- Overview
- Recommended Products
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: 262,144 Colors (Maximum)
3) Drive Duty: 1/128 Duty
Driver IC:1351
Interface:Parallel, 3-/4-wire SPI
Mechanical Specifications

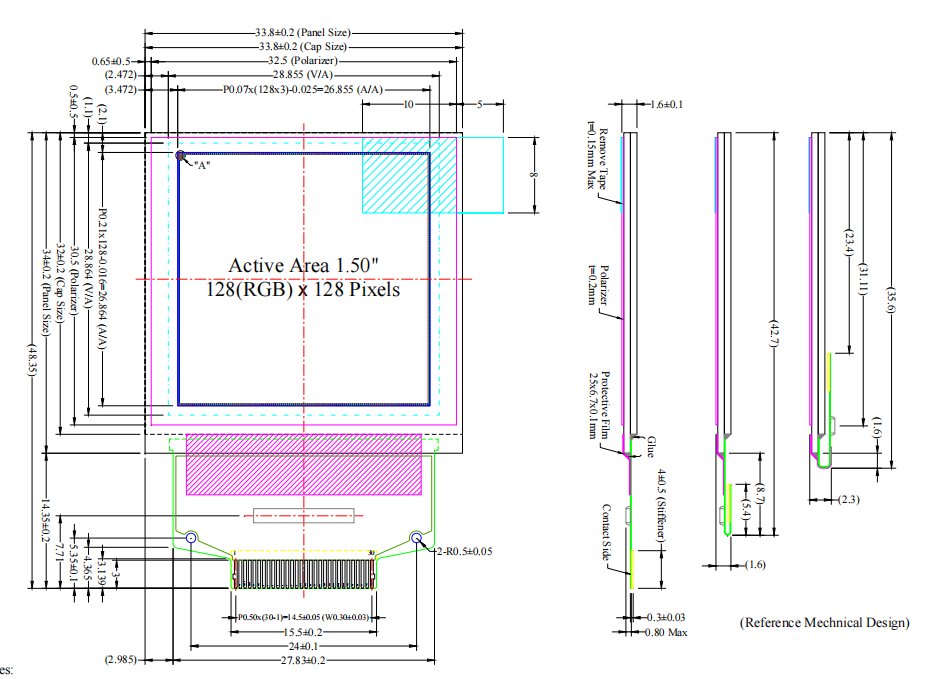

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 128 (RGB) × 128
3) Panel Size: 33.80 × 34.00 × 1.60 (mm)
4) Active Area: 26.855 × 26.864 (mm)
5) Pixel Pitch: 0.07 × 0.21 (mm)
6) Pixel Size: 0.045 × 0.194 (mm)
7) Weight: 3.75 (g)
