Size:1.44inch LCD

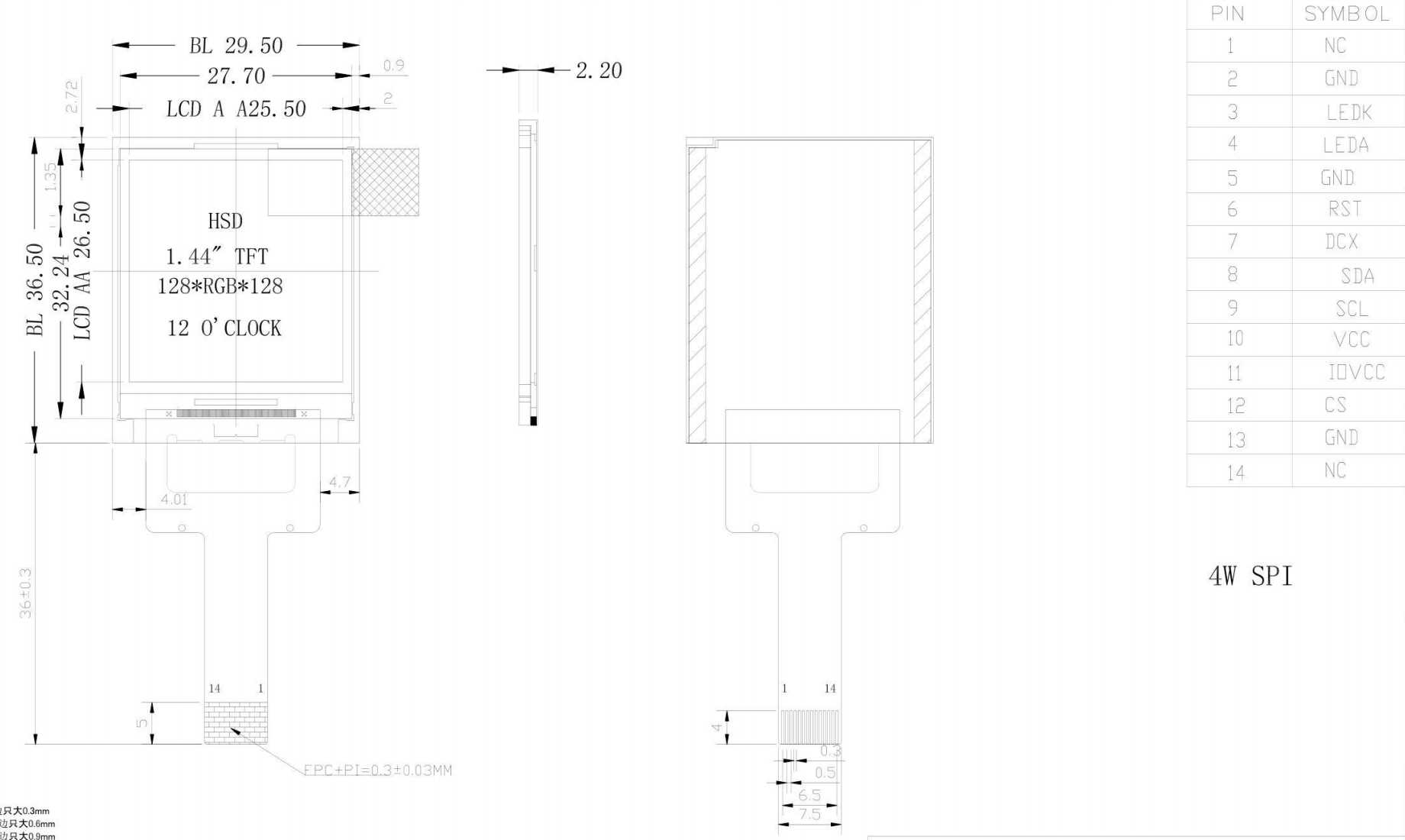

LCM outline size:29.50 (H) x 36.50 (V)mm
Active area:25.5 (H) x 26.5 (V)mm
Number of pixels:128(H)X128(V)
Pixel arrangement:RGB Vertical stripe
Pixel Pitch:0.1992x 0.207mm
Display color:262kcolor
Viewing direction:12 o'clock
Controller / Driver:ST7735
Data interface:SPI 4W
Backlight:2 White LEDs In Parallels
