Driver IC:SSD1312
Interface:4-wireSPI/I²C
Color options:White

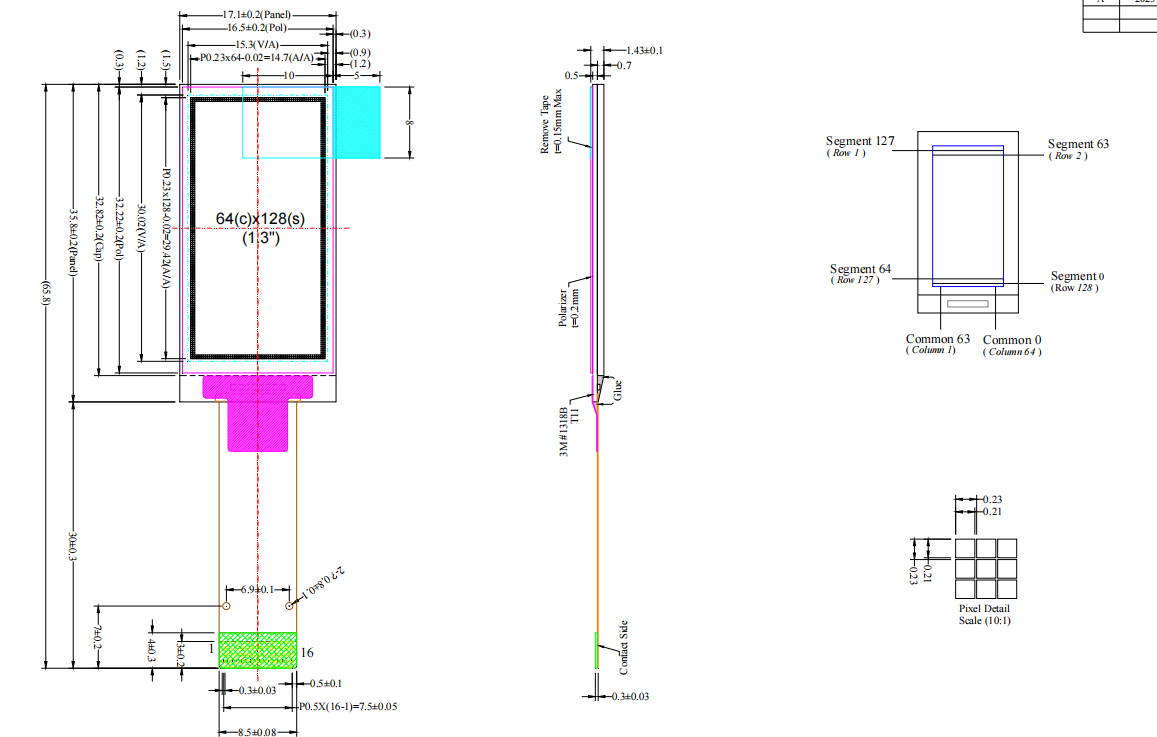

1) Outline Drawing:
According to the annexed outline drawing
2) Number of Pixels: 64 x 128
3) Panel Size:
17.1 x 35.8 x1.43 (mm)
4) Active Area:
14.7 x 29.42 (mm)
5) Pixel Pitch:
0.23 x 0.23 (mm)
6) Pixel Size:
0.21 x 0.21 (mm)
