3.92inch AM OLED Display Panel ONCELL Touch Panel 1080x1240 CH13726A MIPI Interface Full Color Am Oled Display
- Overview
- Recommended Products

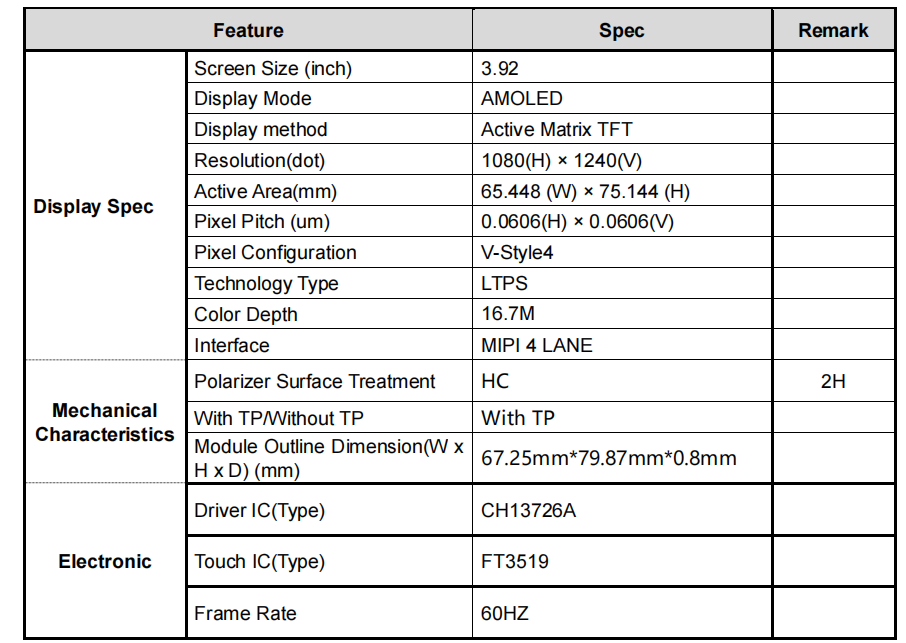

Screen Size (inch) 3.92
Display Mode AMOLED
Display method Active Matrix TFT
Resolution(dot) 1080(H) ×1240(V)
Active Area(mm) 65.448 (W) ×75.144 (H)
Pixel Pitch (um) 0.0606(H) ×0.0606(V)
Pixel Configuration V-Style4
Technology Type LTPS
Color Depth 16.7M
Interface MIPI 4 LANE
Polarizer Surface Treatment HC 2H
With TP/Without TP With TP

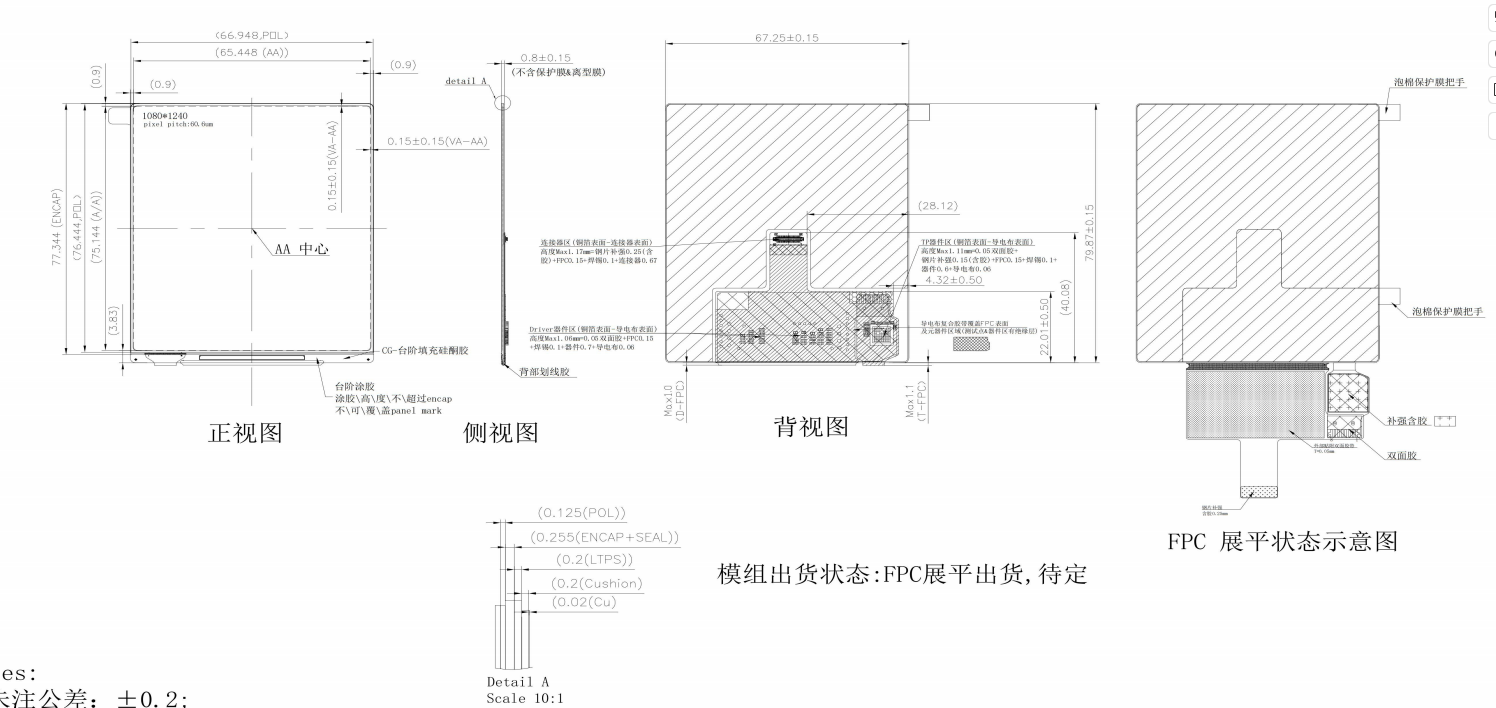

Module Outline Dimension(W x
H x D) (mm) 67.25mm*79.87mm*0.8mm
Driver IC(Type) CH13726A
Touch IC(Type) FT3519
Frame Rate 60HZ
