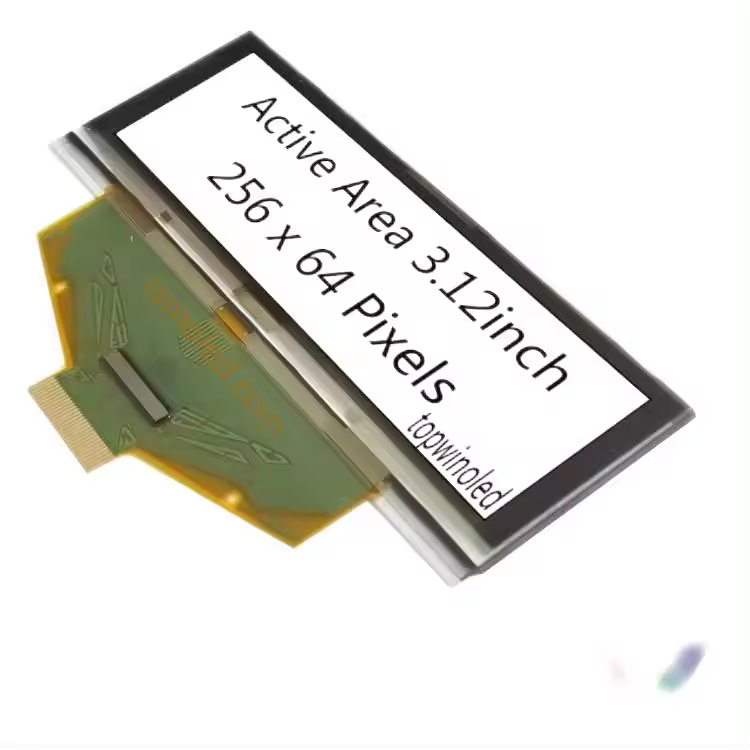

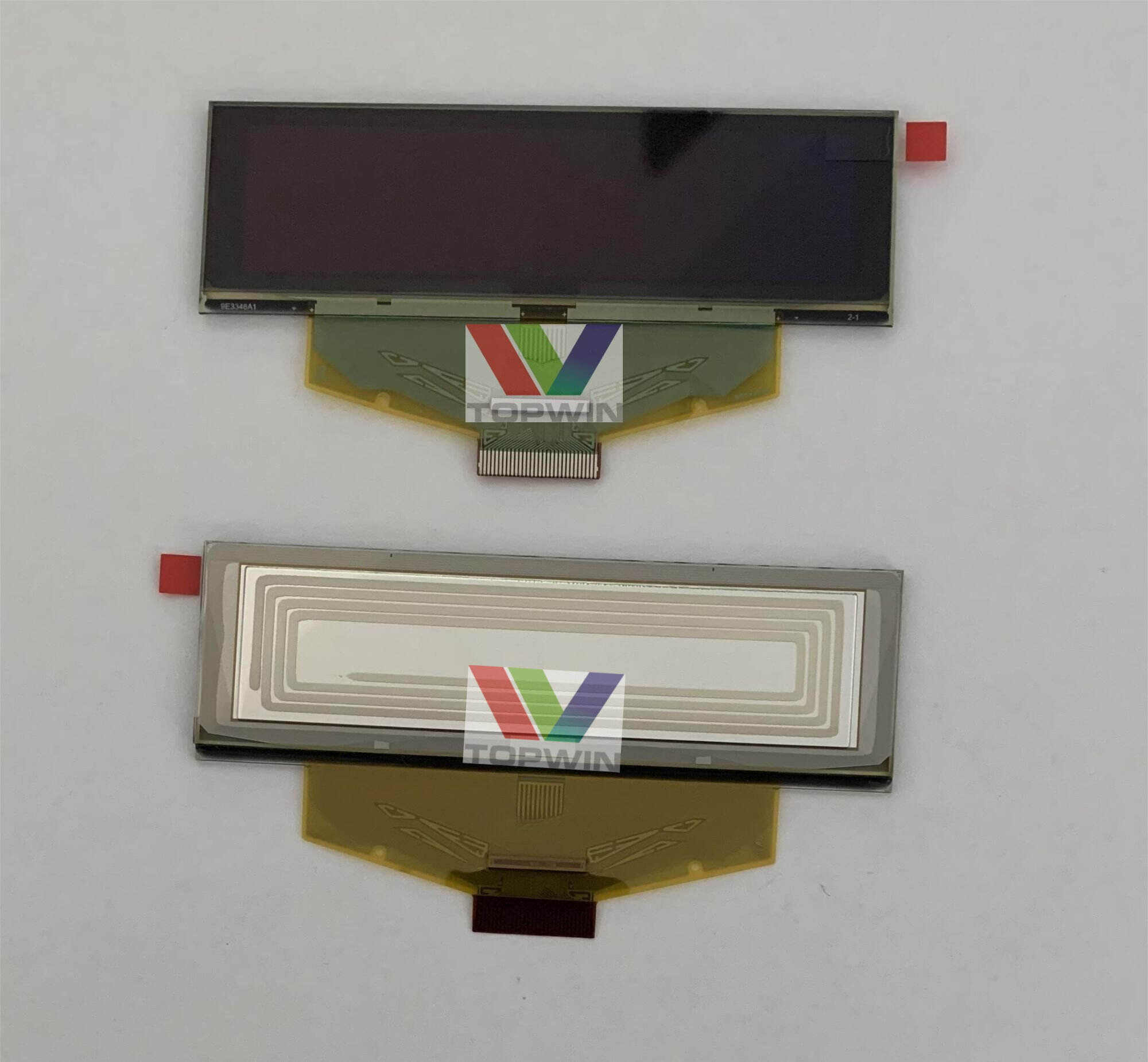

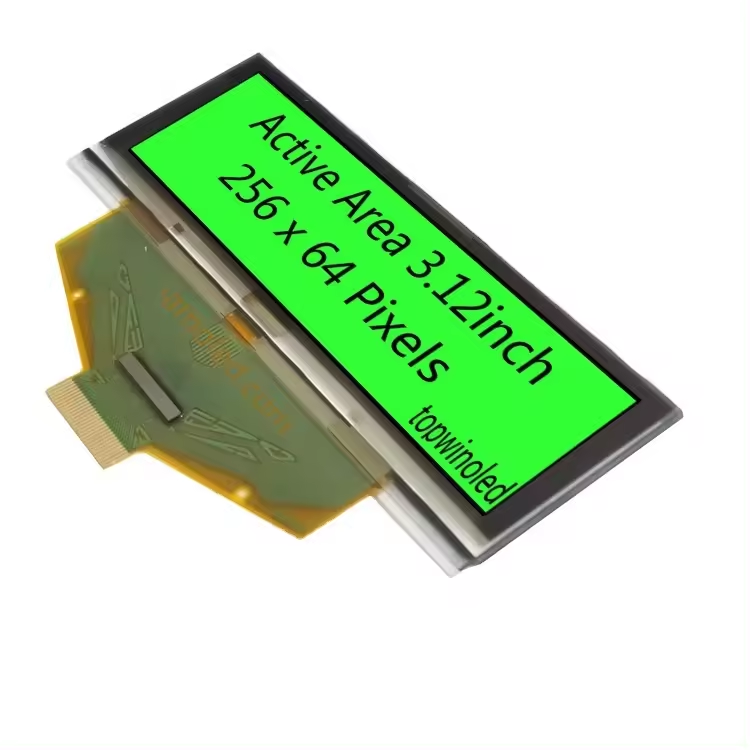

best quality 3.12" 3.12inch 3.12 inch oled display panel blue color oled screen 30 Pin I2C SPI Parallel Interface SSD1322
1) Driver IC:SSD1322
2) Number of Pixels: 256 × 64
3) Module Size: 88.00 × 47.80 × 2.00 (mm)
4) Panel Size: 88.00 × 27.80 × 2.00 (mm) including “Anti-Glare Polarizer”
5) Active Area: 76.78 × 19.18 (mm)
6) Pixel Pitch: 0.30 × 0.30 (mm)
7) Pixel Size: 0.28 × 0.28 (mm)
8) Weight: 9.95 (g) ±10%
9) Color:White, green, yellow, blue
10) Interface:Parallel/4-wireSPI
- Overview
- Contact us for detailed datasheet and prices
- Recommended Products
Get datasheet & sample.
