3.97" 3.97inch 480x800 LCD tft display panel full color high resolution MIPI interface Driver IC ST7701S
- Overview
- Recommended Products
1 LCD Size 3.97 inch
2 Display Mode Normally black
3 Resolution 480(H)RGB x800(V) pixels
4 Pixel pitch 0.108(H) x 0.108(V) mm
5 Active area 51.84(H) x 86.4(V) mm

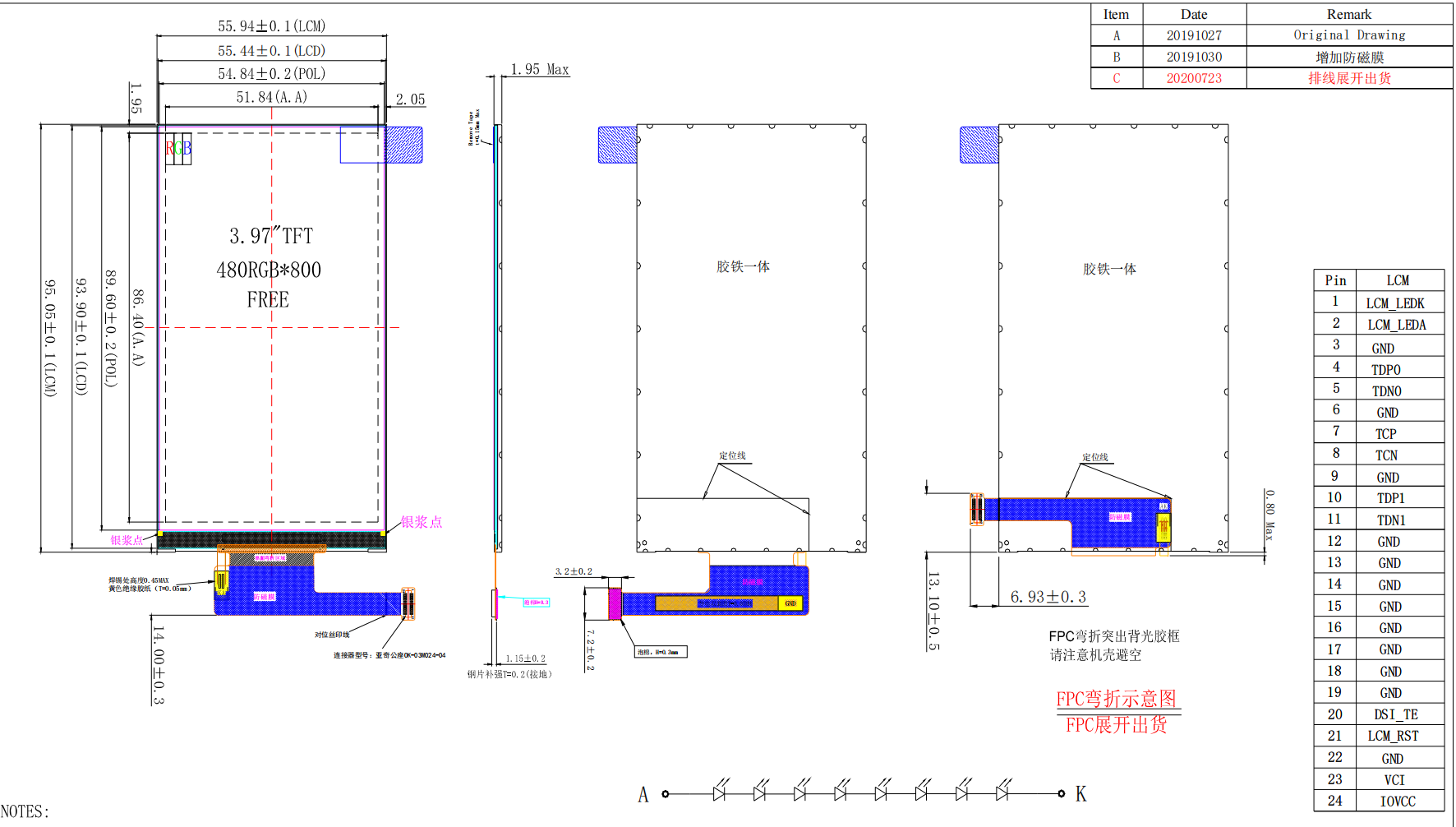

6 Module size 55.94(H) x 95.05(V) x1.95 (D) mm
7 Pixel arrangement RGB Vertical stripe
8 Interface MIPI
9 Display Colors 262K colors
10 Drive IC ST7701S
11 Luminance(cd/m2) 330 (TYP) Cd/m2
12 Viewing Direction All View Best image
13 Backlight 8 White LED Serial -
14 Operating Temp.-20℃~ + 70℃
15 Storage Temp.-30℃~+ 80℃
16 Weight 22.8 g
