0.96" 0.96 inch resolution 80*160 LCD tft display panel IPS full color SPI interface IC ST7735S
- Overview
- Recommended Products

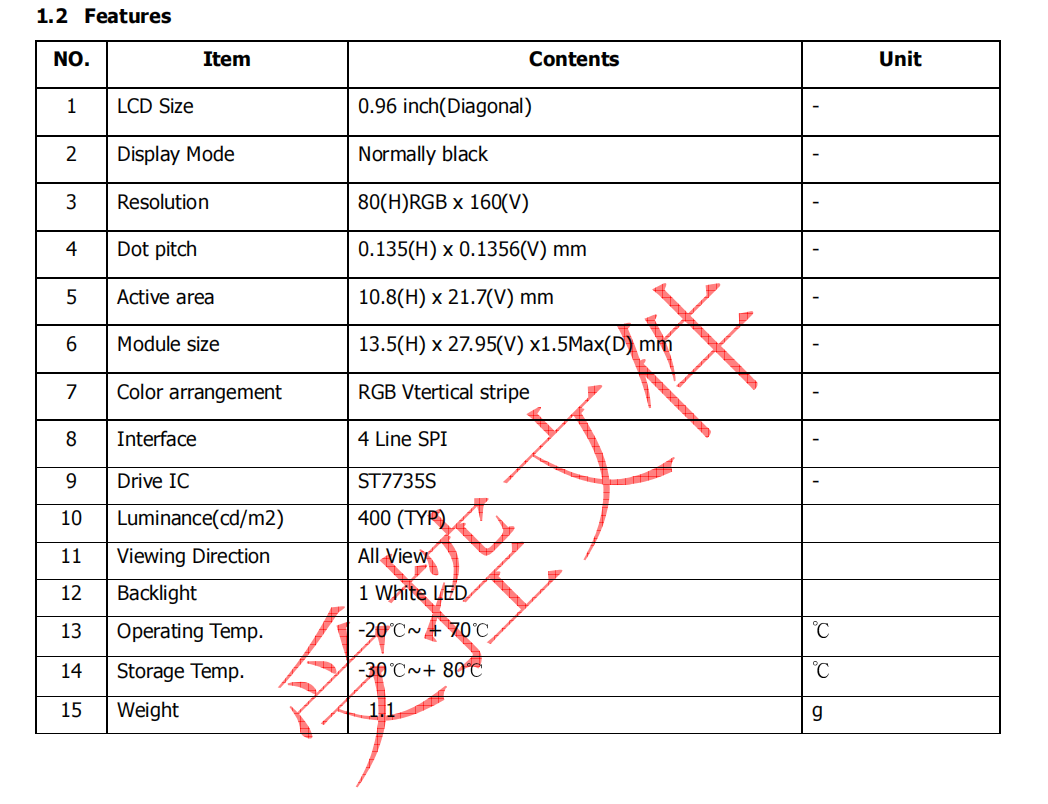

1 LCD Size: 0.96 inch(Diagonal)
2 Display Mode: Normally black
3 Resolution: 80(H)RGB x 160(V)
4 Dot pitch: 0.135(H) x 0.1356(V) mm
5 Active area: 10.8(H) x 21.7(V) mm
6 Module size :13.5(H) x 27.95(V) x1.5Max(D) mm
7 Color arrangement :RGB Vtertical stripe
8 Interface :4 Line SPI
9 Drive IC: ST7735S
10 Luminance(cd/m2) :400 (TYP)
11 Viewing Direction: All View
12 Backlight: 1 White LED
13 Operating Temp.-20℃~ + 70℃
14 Storage Temp.-30℃~+ 80℃
15 Weight 1.1
g
