Driver IC:SSD1306/SSD1315
Interface:Parallel /I2C/ 4-wire SPI
Color options:white/blue
1) Display Mode : Passive Matrix
2) Display Color : Monochrome (White/Blue)
3) Drive Duty : 1/48 Duty

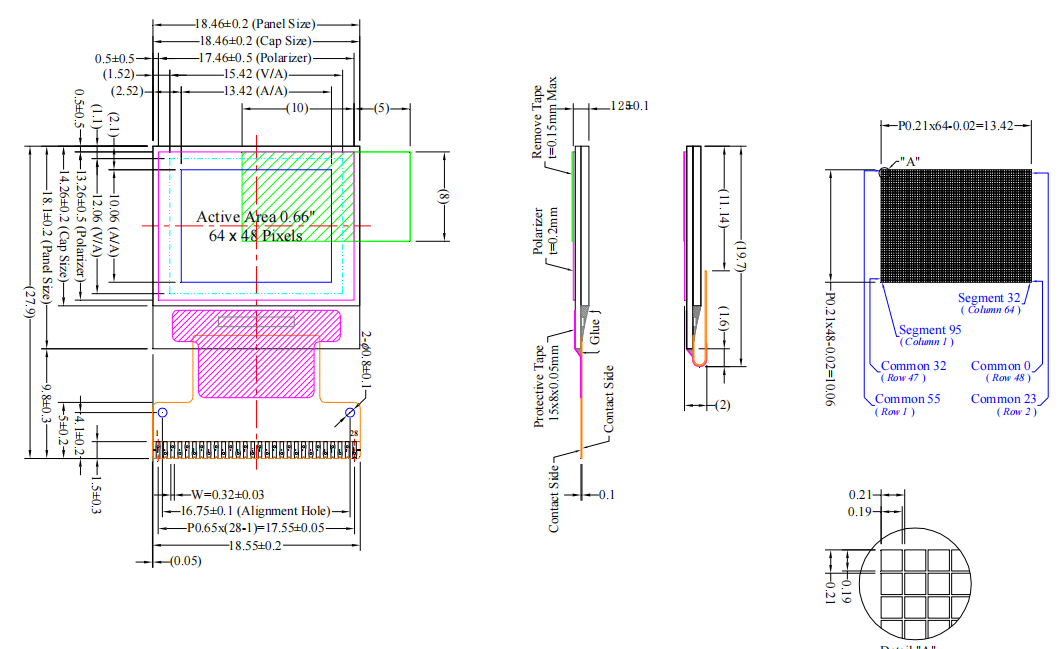

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 64 × 48
3) Module Size : 18.46 × 29.60 × 1.25 (mm)
4) Panel Size : 18.46 × 18.10 × 1.25 (mm) including “Anti-Glare polarizer”
5) Active Area : 13.42 × 10.06 (mm)
6) Pixel Pitch : 0.21 × 0.21 (mm)
7) Pixel Size : 0.19 × 0.19 (mm)
8) Weight : 1.0(g) ± 10%
