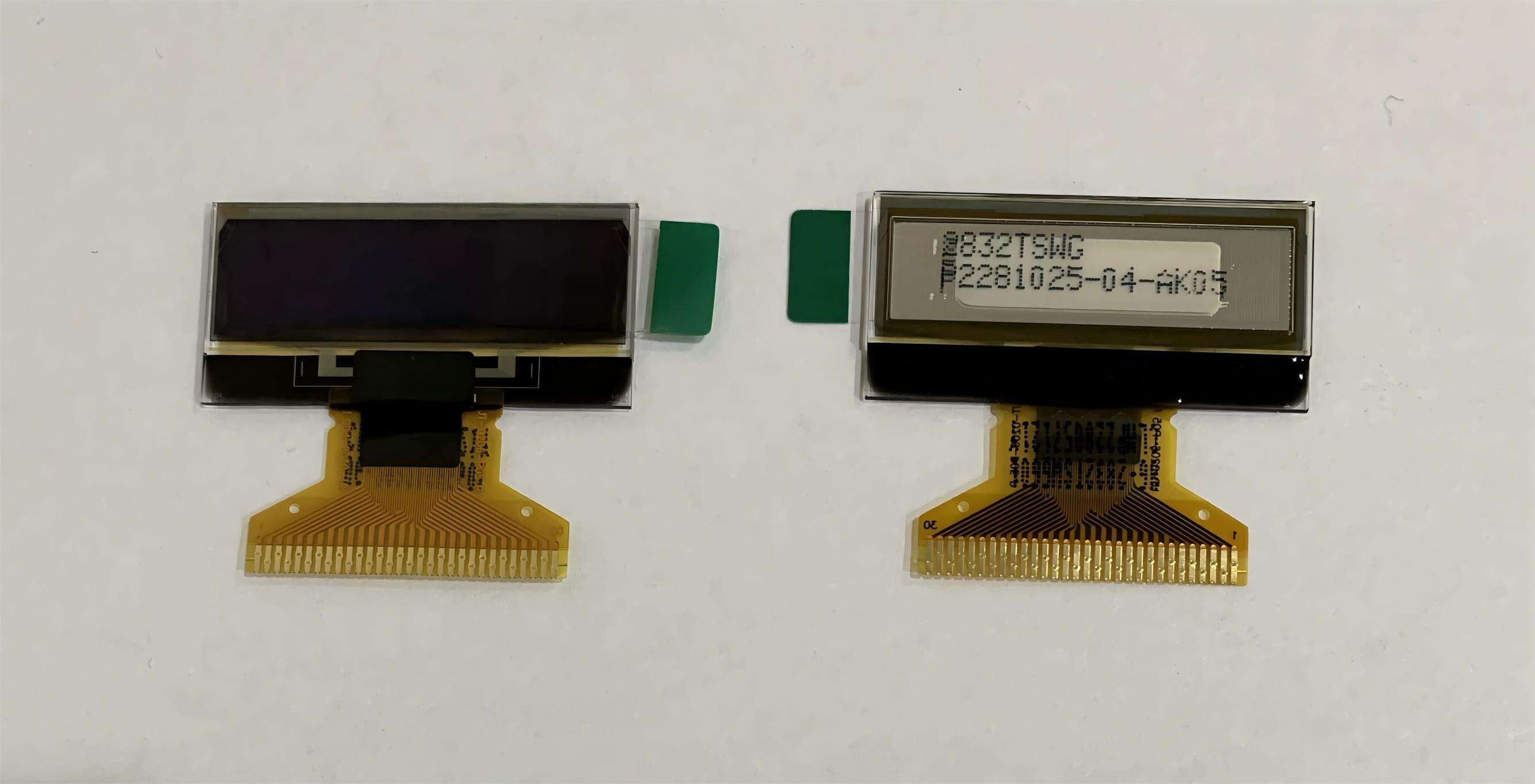

1.04 inch 1.04'' 1.04inch White 30pin soldering type oled display UG-2832TSWGG01 with DCDC inside
- Overview
- Recommended Products
Driver IC:SSD1306
Interface:8-bit 68xx/80xx Parallel,3/4-wire SPI, I²C
Color options:Blue/White

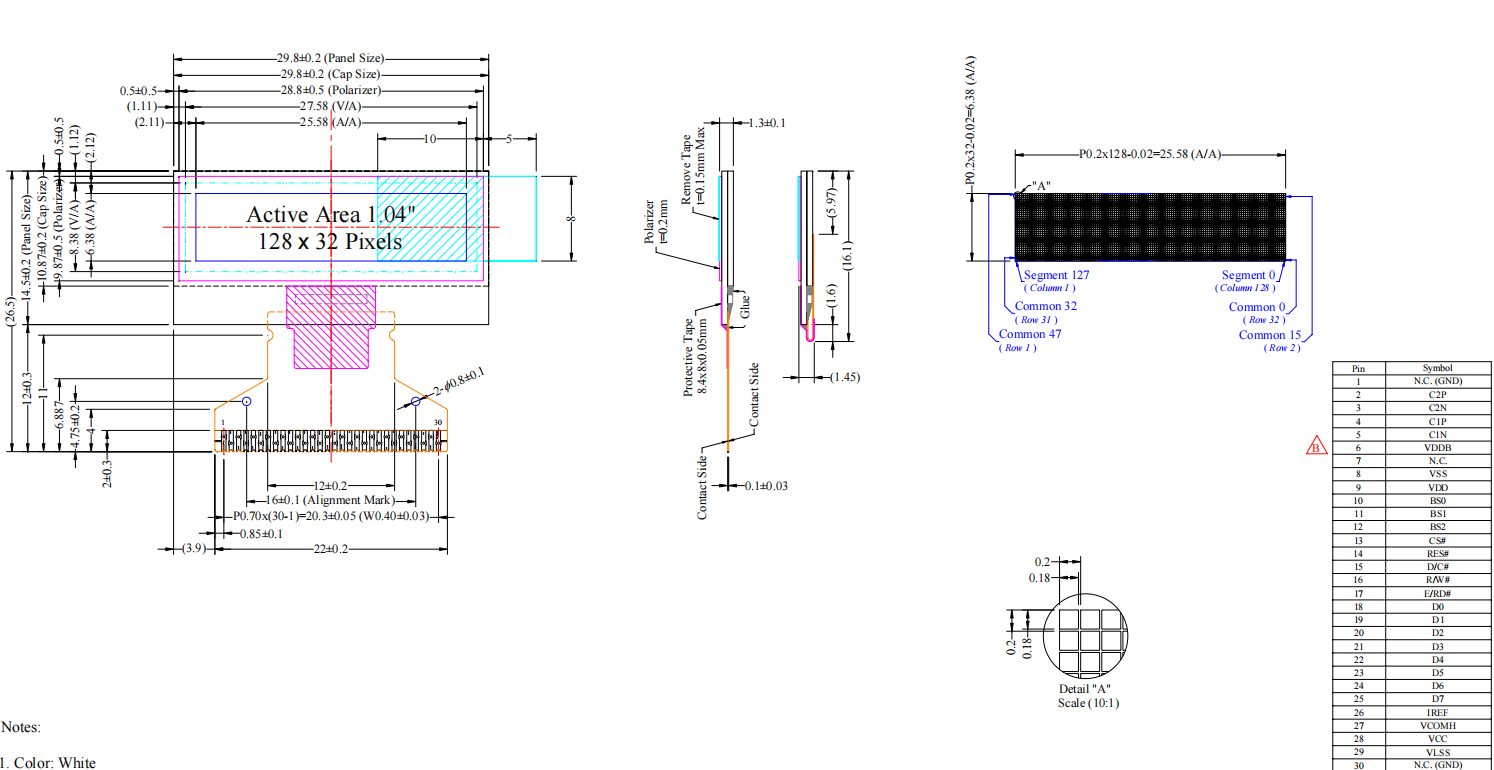

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 32
3) Module Size : 29.80 × 26.50 × 1.30 (mm)
4) Panel Size : 29.80 × 14.50 × 1.30 (mm) including “Anti-Glare Polarizer”
5) Active Area : 25.58 × 6.38 (mm)
6) Pixel Pitch : 0.20 × 0.20 (mm)
7) Pixel Size : 0.18 × 0.18 (mm)
