13.3inch 13.3'' high resolution 1600x1200 E-ink display with16 Grey Level
Optimized for Medical, Educational, and Office Information Display Systems
High-Resolution E-Paper Display for Embedded and Industrial Display Applications
Designed for Document Viewing, E-Paper Readers, and Information Terminals
- Overview
- Contact us for detailed datasheet and prices
- Recommended Products
Screen Size: 13.3Inch
Display Resolution: 1600 (H)×1200(V)Pixel
Active Area: 270.4 (H)×202.8 (V)mm
Pixel Pitch: 0.169 (H)×0.169 (V)mm
Pixel Configuration: Rectangle

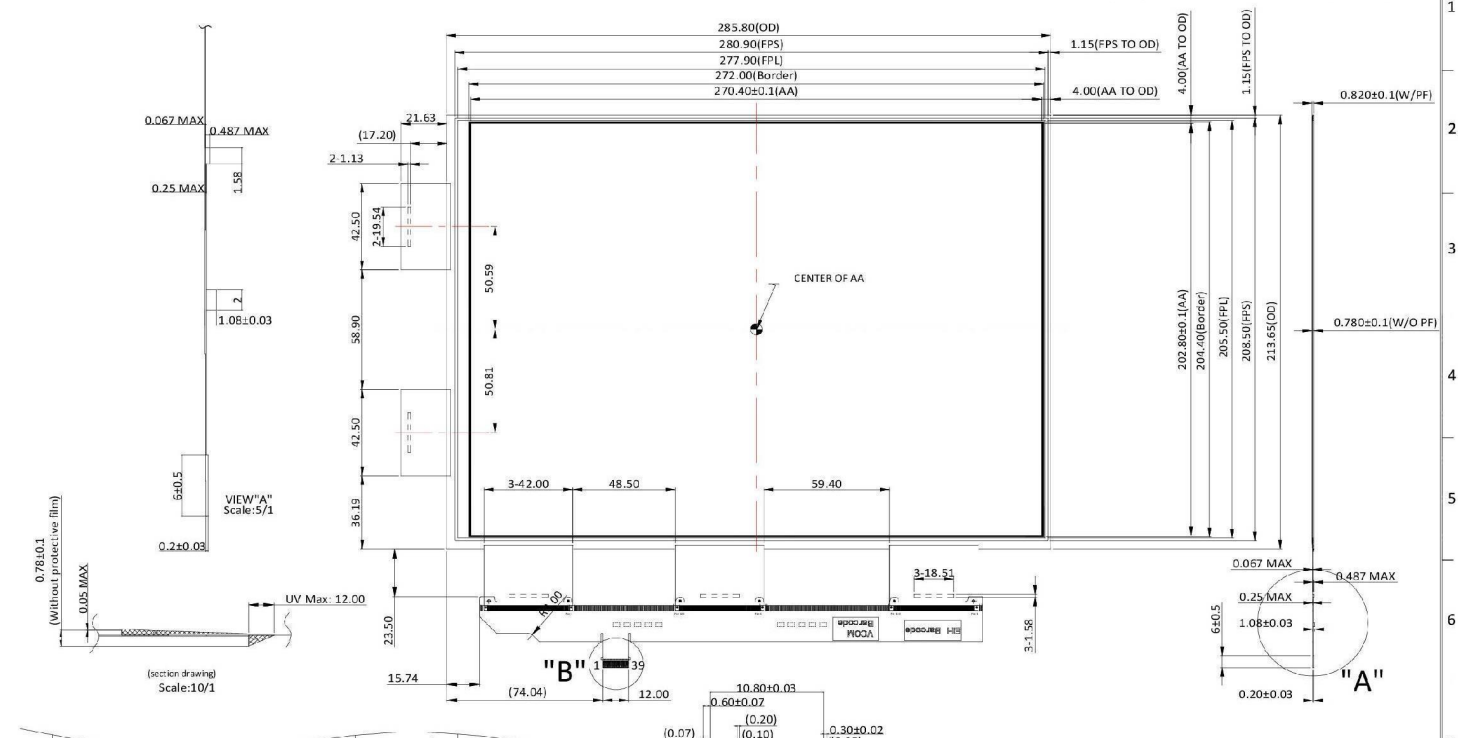

Outline Dimension:
285.80(W)x213.65(H)x 0.78(D)(panel area height)mm
Module Weight: 96g
Number of Gray: 16 Gray Level (monochrome)
Display operating mode: Reflective mode
Surface treatment: Hard Coating
Interface:Parallel
Get sample & datasheet
