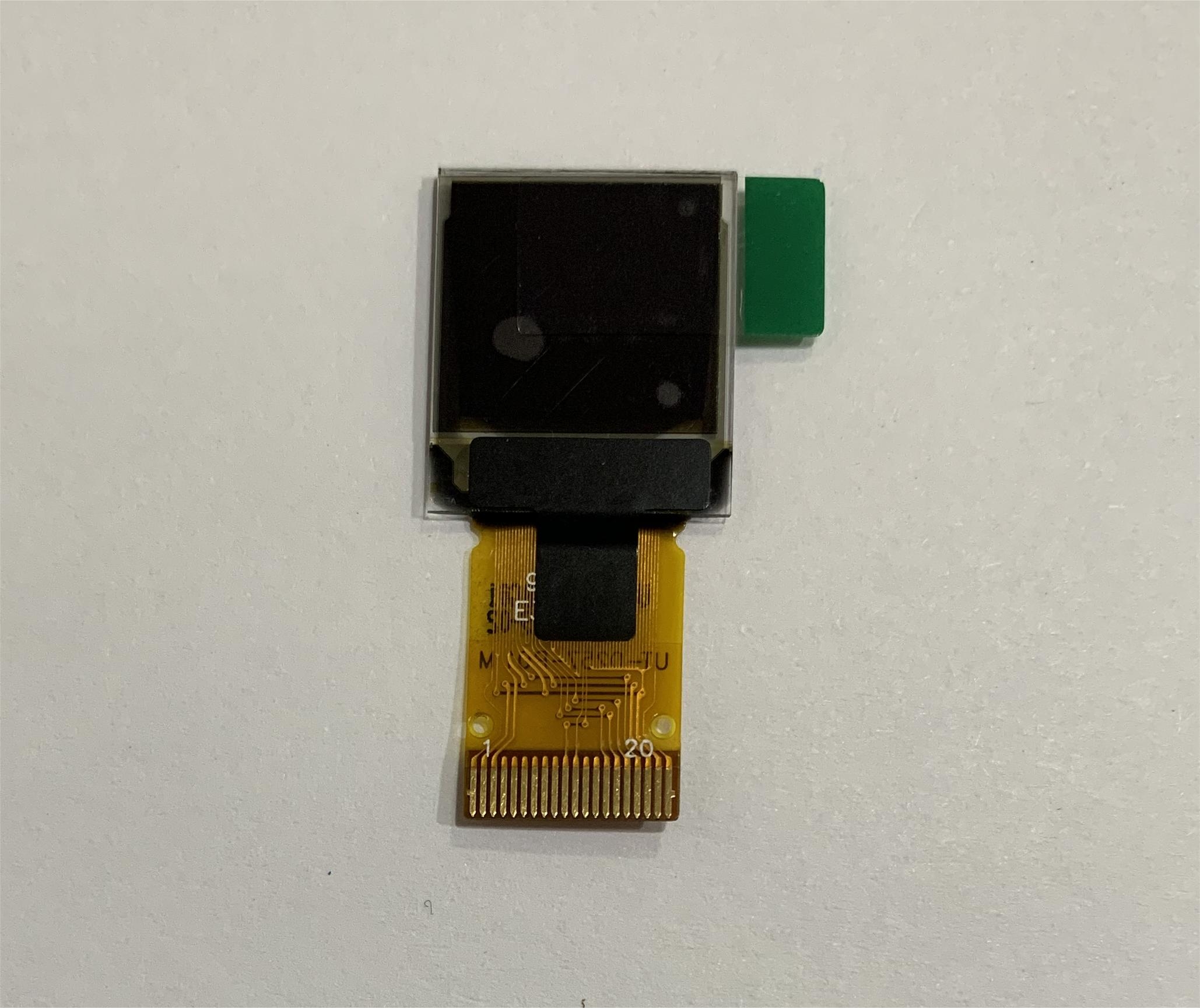

0.6'' 0.6inch 64x64 pixels 20pin 65k colorful ZIF type oled display 4-SPI Interface ssd1357 driving
- Overview
- Recommended Products

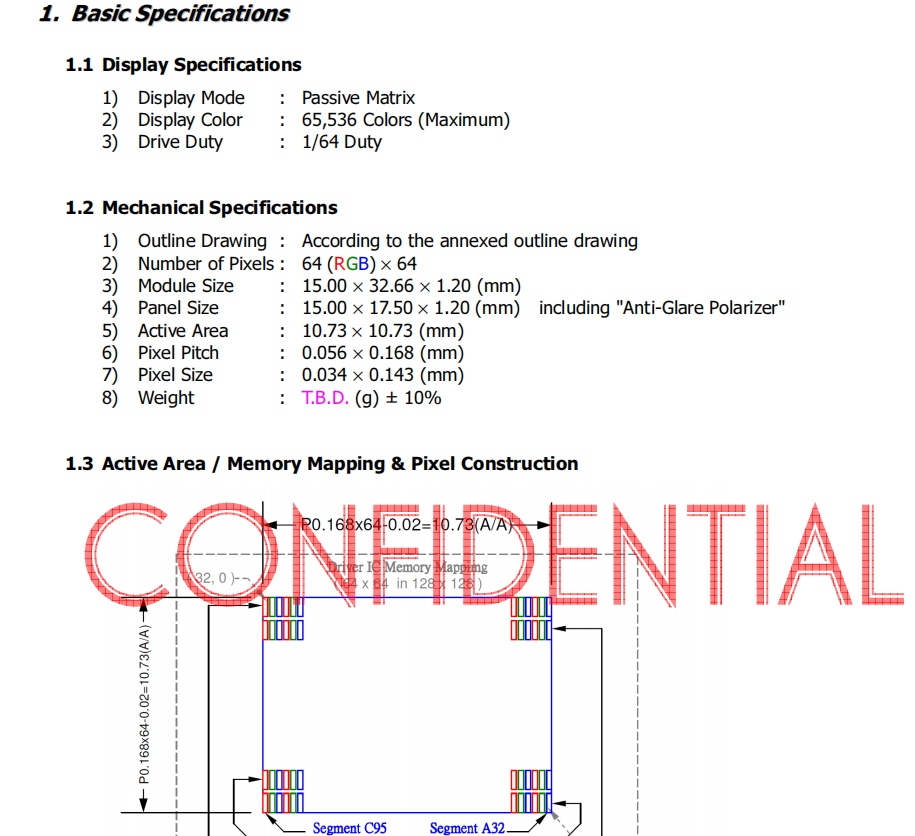

1.1 Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : 65,536 Colors (Maximum)
3) Drive Duty : 1/64 Duty
1.2 Mechanical Specifications

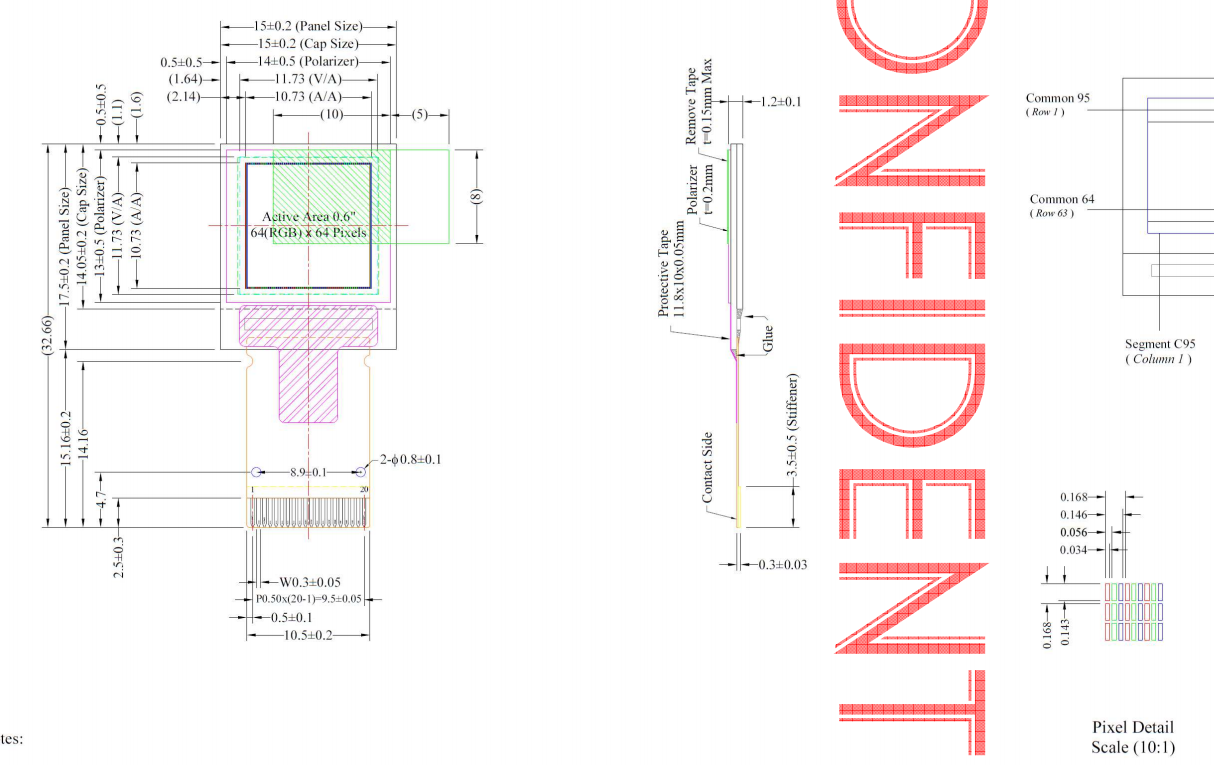

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 64 (RGB) × 64
3) Module Size : 15.00 × 32.66 × 1.20 (mm)
4) Panel Size : 15.00 × 17.50 × 1.20 (mm) including "Anti-Glare Polarizer"
5) Active Area : 10.73 × 10.73 (mm)
6) Pixel Pitch : 0.056 × 0.168 (mm)
7) Pixel Size : 0.034 × 0.143 (mm)
8) Weight : T.B.D. (g) ± 10%
IC:1357
Interface:4-wire SPI
