Size:2.86inch bar lcd display panel
Drive element:a-Si TFT

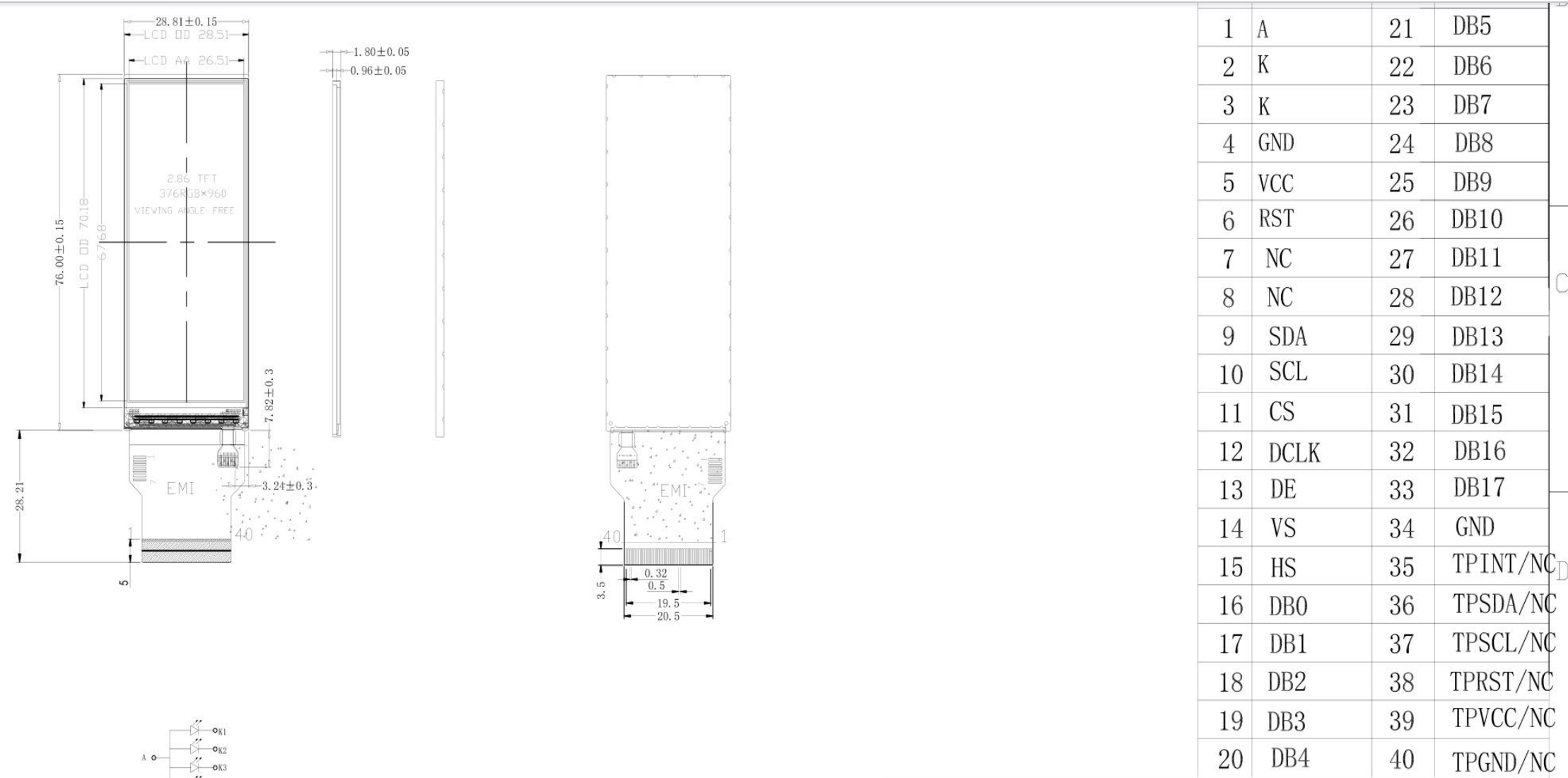

LCM outline size:28.81 (H) x 76 (V)mm
Active area:26.51 (H) x 67.68(V)mm
Number of pixels:376(H)X960(V)pixels
Pixel arrangement:RGB stripe
Pixel Pitch:23.5(H)×3×70.5(V)um
Display color:16.7m color
Viewing direction:ALL
Controller / Driver:ST7701S
Data interface:SPI3W+RGB18bit
Backlight:4 White LEDs In Parallels
