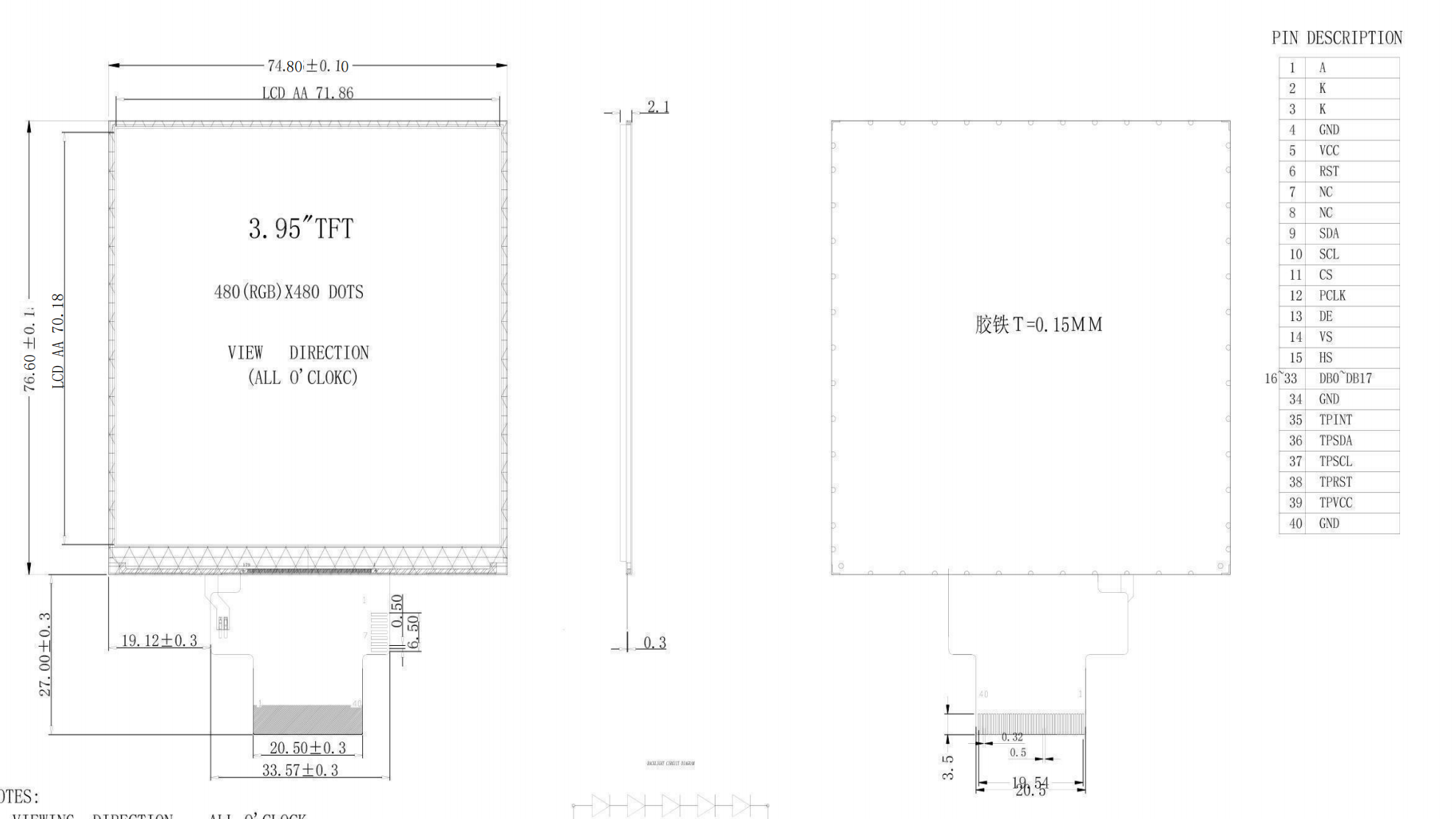

LCM outline size:
74.80 (H) x 76.60(V)mm
Active area:
71.86 (H) x 70.18(V)mm
Number of pixels:480(H)X480(V)
Pixel arrangement:RGB stripe
Pixel Pitch:
0.1497 (H) x 0.1462 (V)um
Display color:16.7m colorcolor
Viewing direction:ALL
Controller / Driver:ST7701S
Data interface:3WSPI+RGB18BIT
Backlight:10 White LEDs In Parallels
