13.3inch 13.3'' high resolution 960x680 E-ink display
Optimized for Medical, Educational, and Office Information Display Systems
High-Resolution E-Paper Display for Embedded and Industrial Display Applications
Designed for Document Viewing, E-Paper Readers, and Information Terminals
- Overview
- Recommended Products
Screen Size: 13.3Inch
Interface:SPI
Color: 2 color / 3 color
Display Resolution: 960(H)×680(V)Pixel
Dpi:88
ActiveArea: 275.52 (H)×195.16 (V)mm
Pixel Pitch: 0.2870×0.2870mm
Pixel Configuration: Rectangle

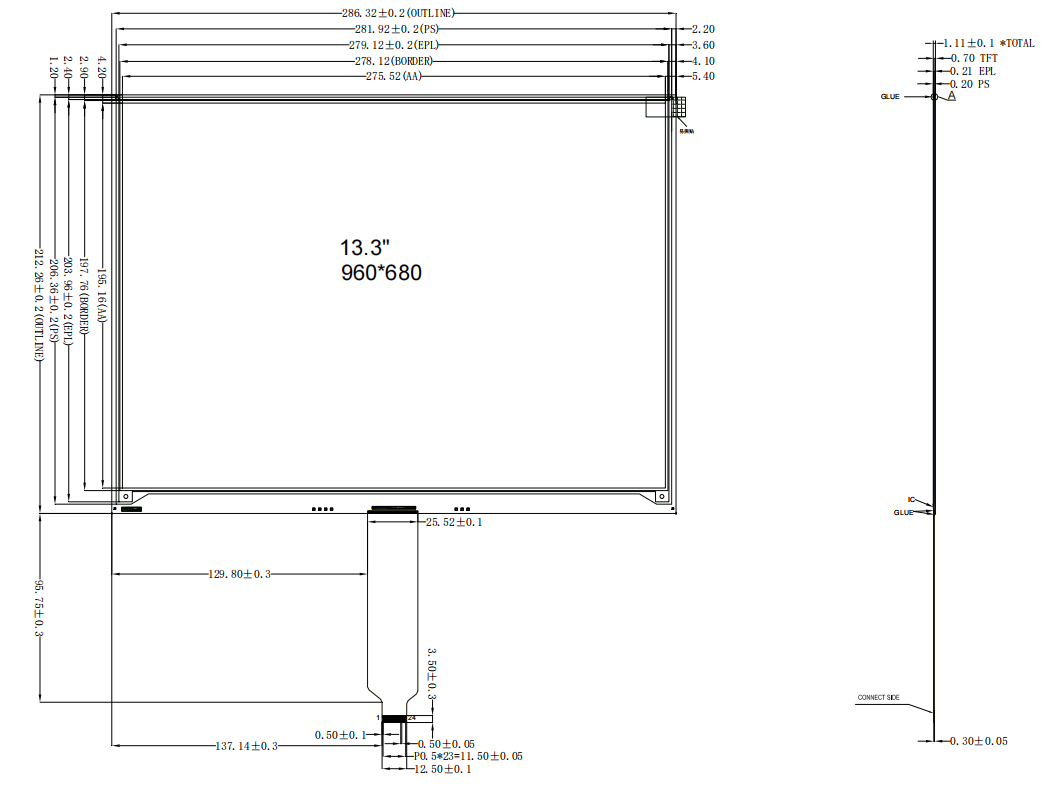

Outline Dimension:286.32 (H)×212.26 (V) ×1.1（D）mm
Without masking film
960×680 pixels display
High contrast
High reflectance
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable display
Commercial temperature range
Landscape, portrait modes
Hard-coat antiglare display surface
Ultra Low current deep sleep mode
On chip display RAM
Low voltage detect for supply voltage
High voltage ready detect for driving voltage
Internal temperature sensor
10-byte OTP space for module identification
Waveform stored in On-chip OTP
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
I2C signal master interface to read external temperature sensor/built-in temperature sensor
