1.08" 1.08 inch resolution 128*220 LCD tft display panel IPS full color SPI interface IC GC9203
- Overview
- Recommended Products

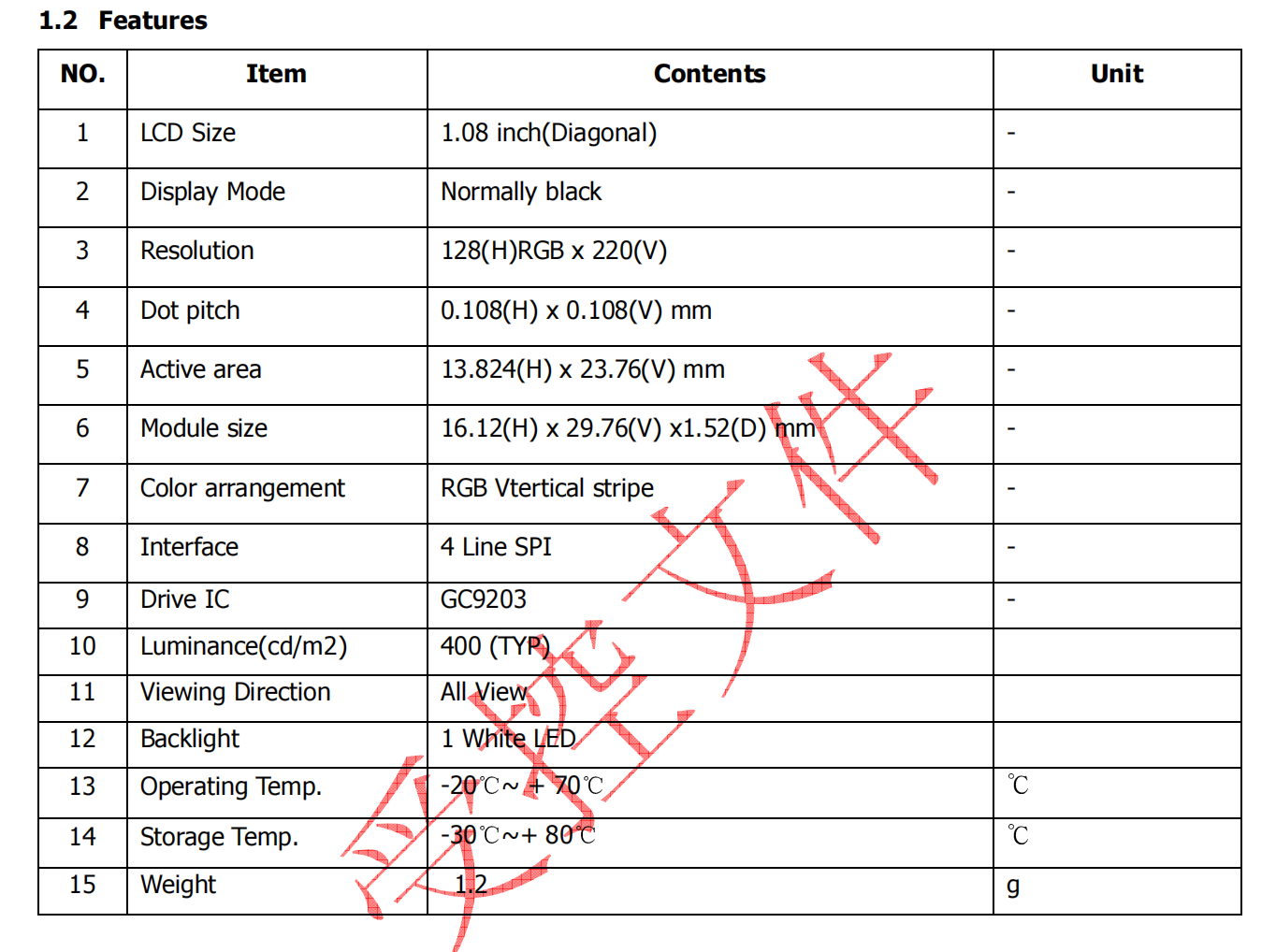

1 LCD Size: 1.08 inch(Diagonal)
2 Display Mode: Normally black
3 Resolution: 128(H)RGB x 220(V)
4 Dot pitch: 0.108(H) x 0.108(V) mm
5 Active area :13.824(H) x 23.76(V) mm
6 Module size :16.12(H) x 29.76(V) x1.52(D) mm
7 Color arrangement :RGB Vtertical stripe
8 Interface: 4 Line SPI
9 Drive IC: GC9203
10 Luminance(cd/m2): 400 (TYP)
11 Viewing Direction: All View
12 Backlight :1 White LED
13 Operating Temp.-20℃~ + 70℃
14 Storage Temp.-30℃~+ 80℃
15 Weight 1.2
g
