3" 3 inch high resolution 480x854 LCD tft display panel full color SPI RGB interface IC ST7701
- Overview
- Recommended Products
Size:3 inch LCD

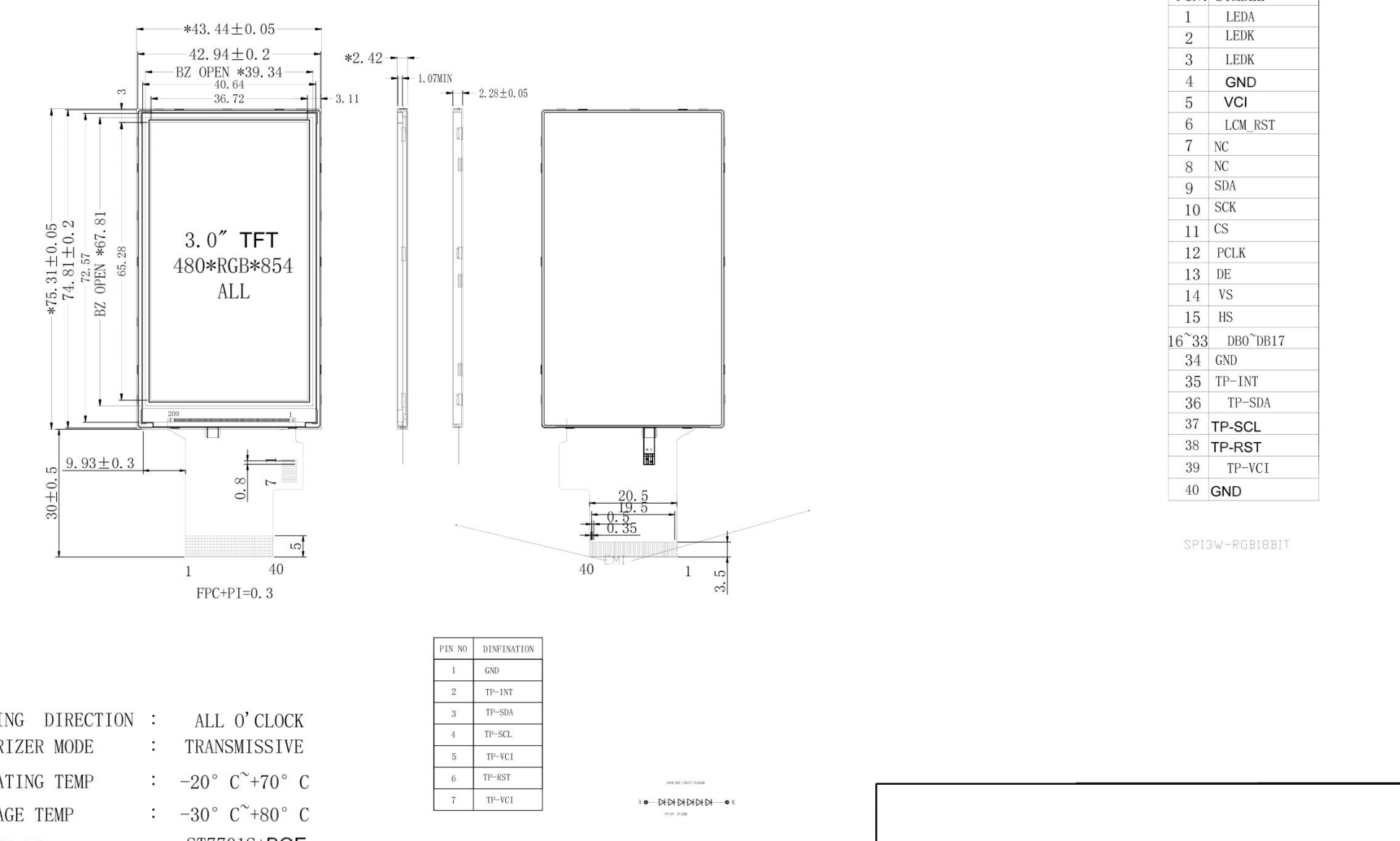

LCM outline size:43.34 (H) x 75.31 (V)mm
Active area:36.72 (H) x 65.28(V)mm
Resolution:480(H)X854(V)
Pixel arrangement:RGB stripe
Pixel Pitch:25.5HX76.44V
Display color:16.7m color
Viewing direction:ALL
Controller / Driver:ST7701S
Data interface:SPI3W+RGB18bit
Backlight:6 White LEDs In Parallels
