Driver IC:SSD1309
Interface:8-bit 68xx/80xx Parallel,3/4-wire SPI, I²C
Color options:Blue
Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : Monochrome (Light Blue)
3) Drive Duty : 1/56 Duty
Mechanical Specifications

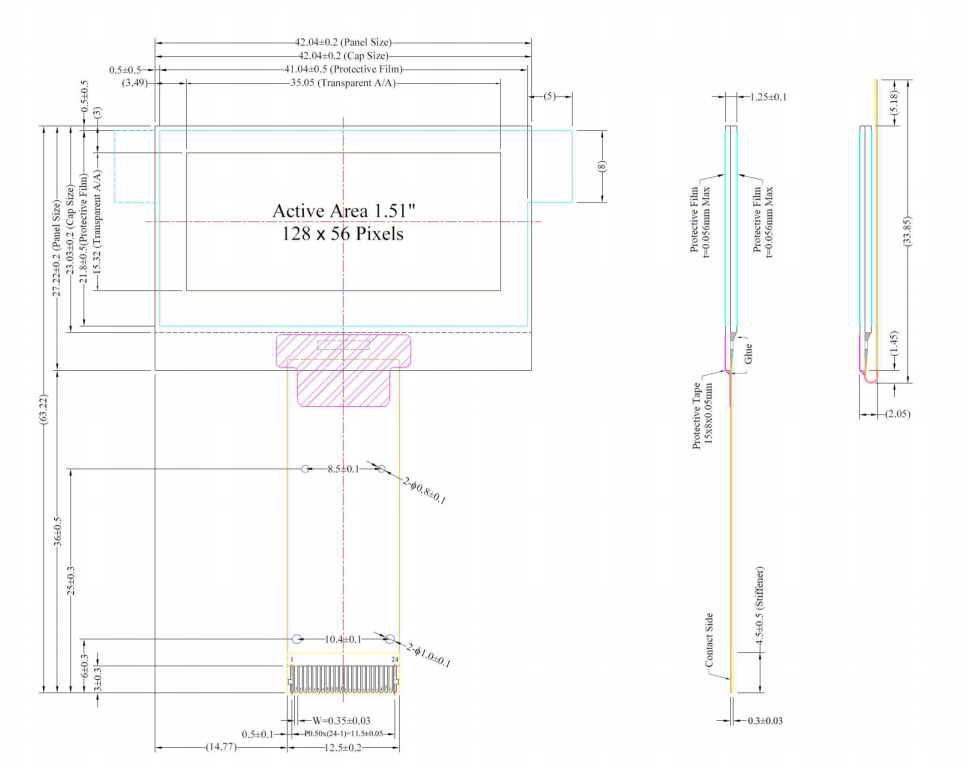

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 x 56
3) Module Size : 42.04 x 63.22 x 1.25 (mm)
4) Panel Size : 42.04 x 27.22 x 1.25 (mm)
5) Active Area : 35.05 x 15.32 (mm)
6) Pixel Pitch : 0.274 x 0.274 (mm)
7) Pixel Size : 0.254 x 0.254 (mm)
