Resolution:128X64
Display Specifications
Display Mode
Passive Matrix—OLED
Color: Yellow/White/Green
Interface:8-Bit 68XX/80XX Parallel、 SPI
Drive Duty:1/64

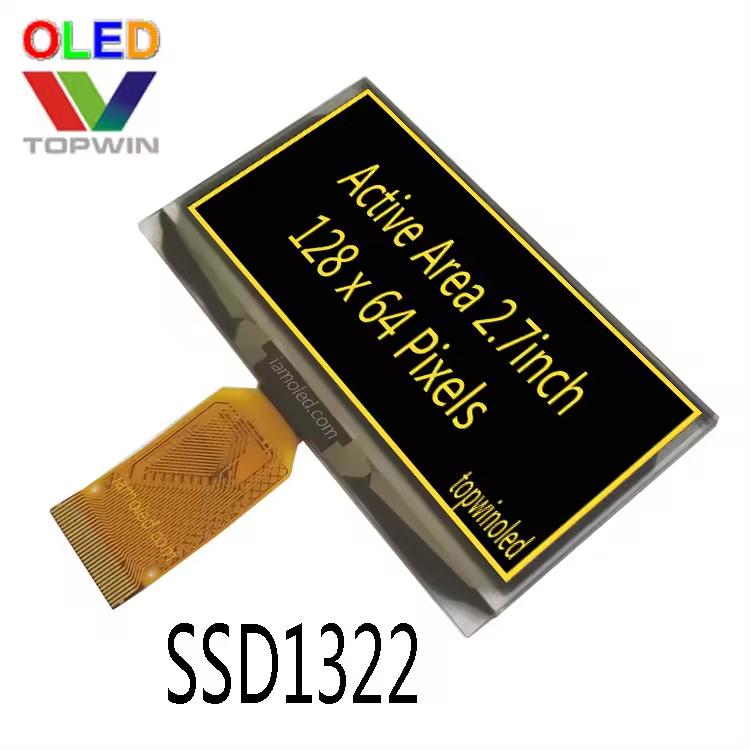

Driver IC:SSD1322
Shell:0.5T
Mechanical Specifications

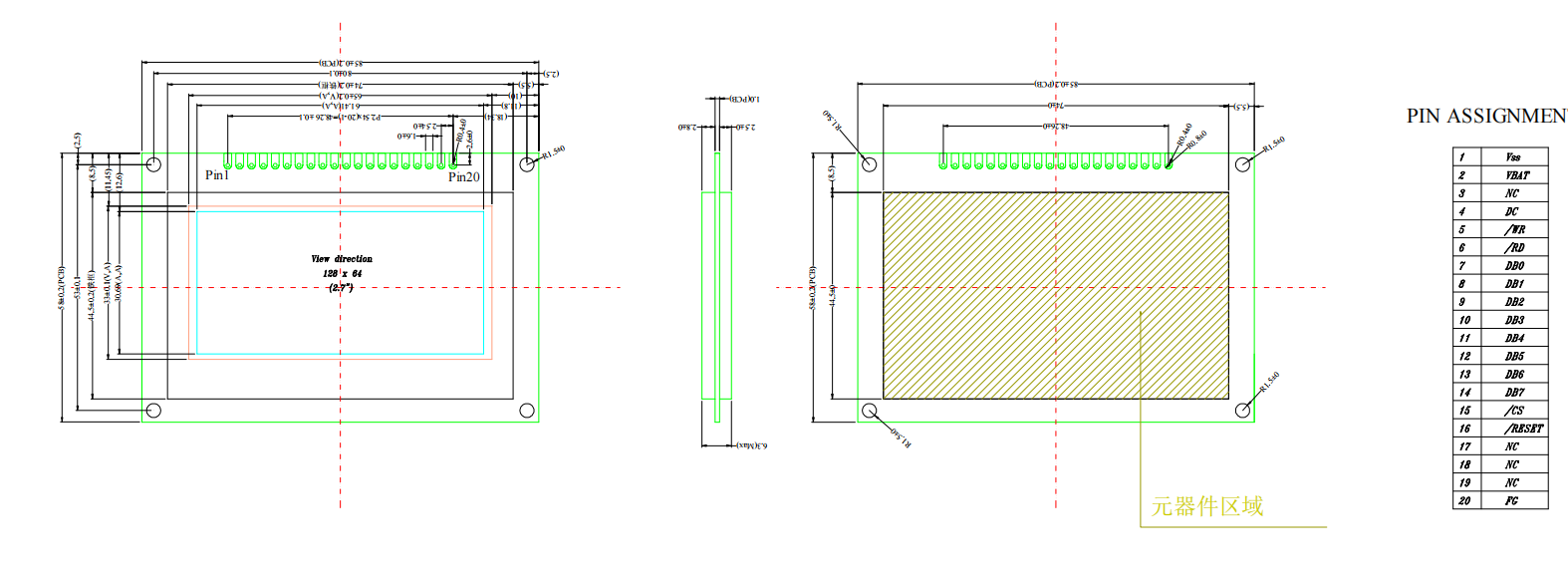

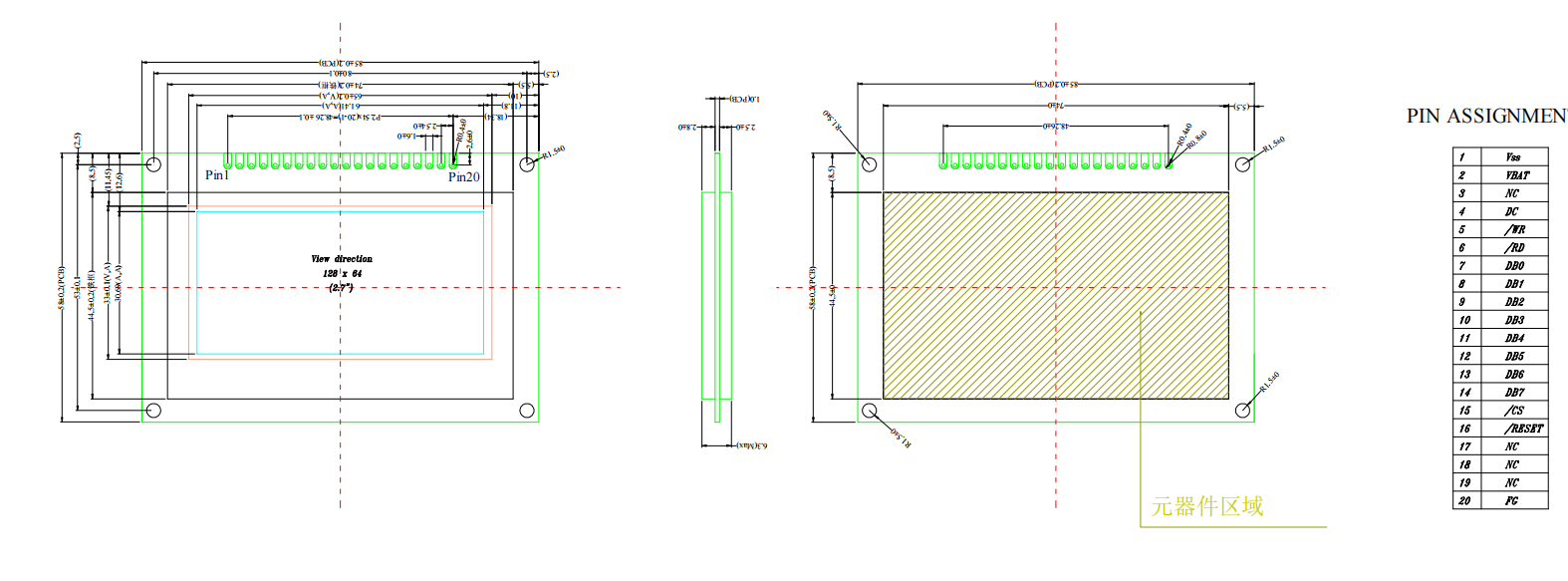

Outline Drawing:85.0(W)x58.0(H)x7.0Max(T) mm
View Area: 65.0(W)x33.0(H) mm
Active Area:61.41(W)x30.69(H) mm
Lattice:128dots x 64dots --
Pixel Pitch:0.48(W)x0.48(H) mm
Pixel Size:0.45(W)x0.45(H) mm
