Driver IC: SSD1322/1325/1327
Interface:Parallel/4-wireSPI
Color options:White/blue/yellow/green
1.1 Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : Monochrome with 16 Gray Scales (White/Yellow/Green)
3) Drive Duty : 1/64 Duty
1.2 Mechanical Specifications
1) Outline Drawing : According to the annexed outline drawing

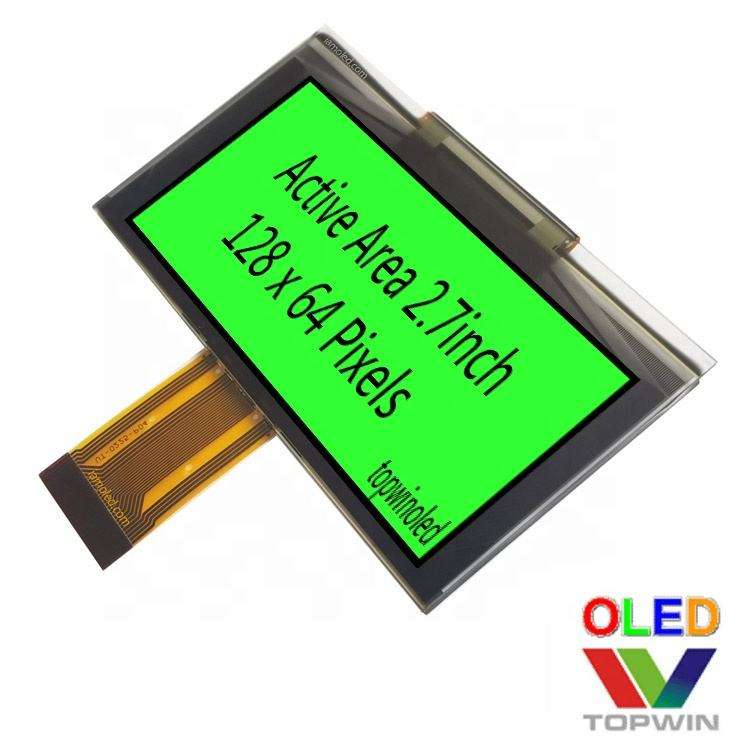

2) Number of Pixels : 128 × 64
3) Panel Size : 73.00 × 41.86 × 2.00 (mm)
4) Active Area : 61.41 × 30.69 (mm)
5) Pixel Pitch : 0.48 × 0.48 (mm)
6) Pixel Size : 0.45 × 0.45 (mm)
7) Weight : 12.17 (g)
