1 LCD Size 1.3 inch(Diagonal) -
2 Display Mode Normally black -
3 Resolution :240(H)RGB x 240(V)
4 Dot pitch :0.0975(H) x 0.0975(V) mm
5 Active area :23.4(H) x 23.4(V) mm

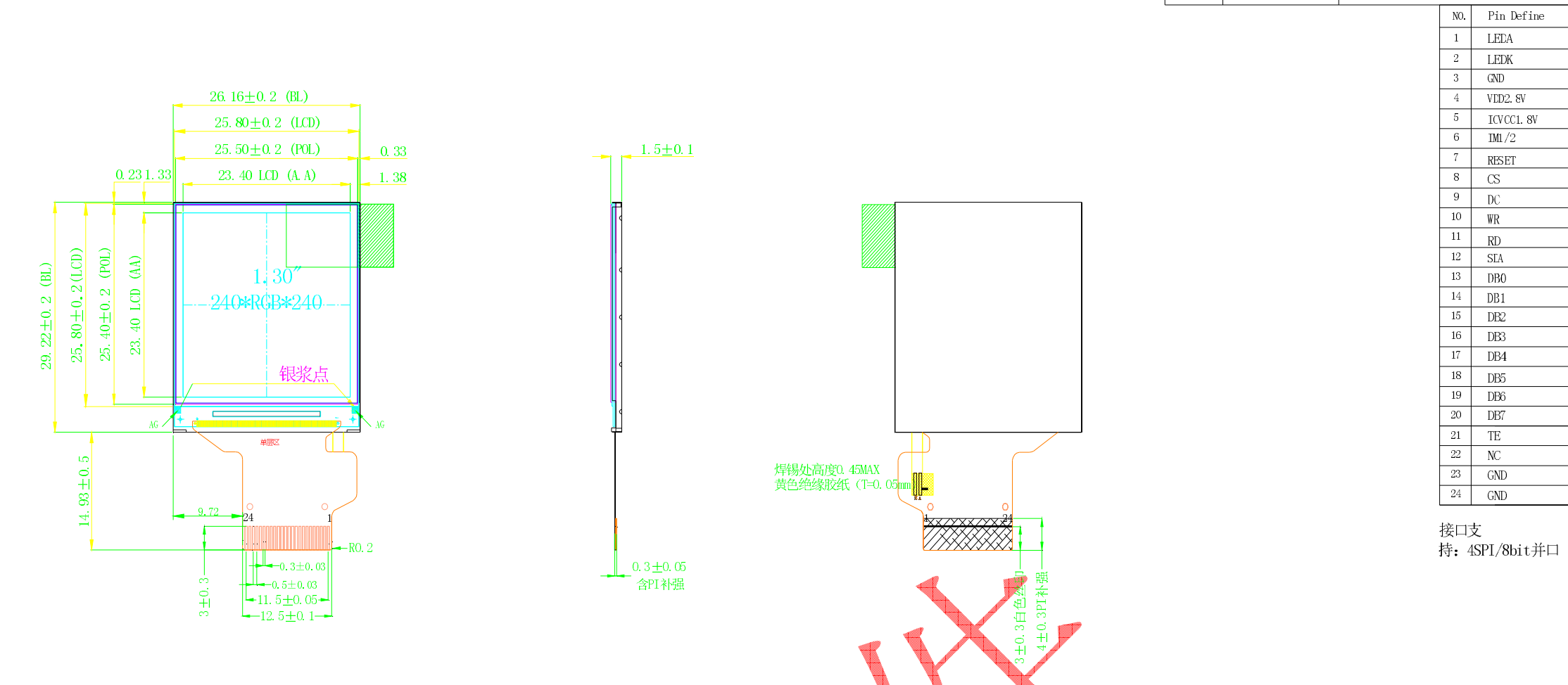

6 Module size: 26.16(H) x 29.22(V) x1.5(D) mm
7 Color arrangement :RGB Vtertical stripe
8 Interface :MCU8BIT/SPI4
9 Drive IC :ST7789
10 Luminance(cd/m2) :350 (TYP)
11 Viewing Direction :All View
12 Backlight :2 White LED
13 Operating Temp.-20℃~ + 70℃
14 Storage Temp.-30℃~+ 80℃
