11.3"11.3inch Stretched Bar LCD Display panel 440x1920 IPS MIPI Interface 11.26 Inch Bar Type LCD Module Screen for Car Computer
- Overview
- Recommended Products
LCD Size：11.3”inch
Panel Type:IPS
Display Mode:Normal Black
Number of Colors:16.7M
Viewing direction:ALL
Backlight:White LED x16in Parallel/ Series
Contrast Ratio:1000
Interface:MIPI 4Lanes
Driver IC:SC7707
Driver IC RAM Size:RAM lessbit
Luminance:520cd/m2

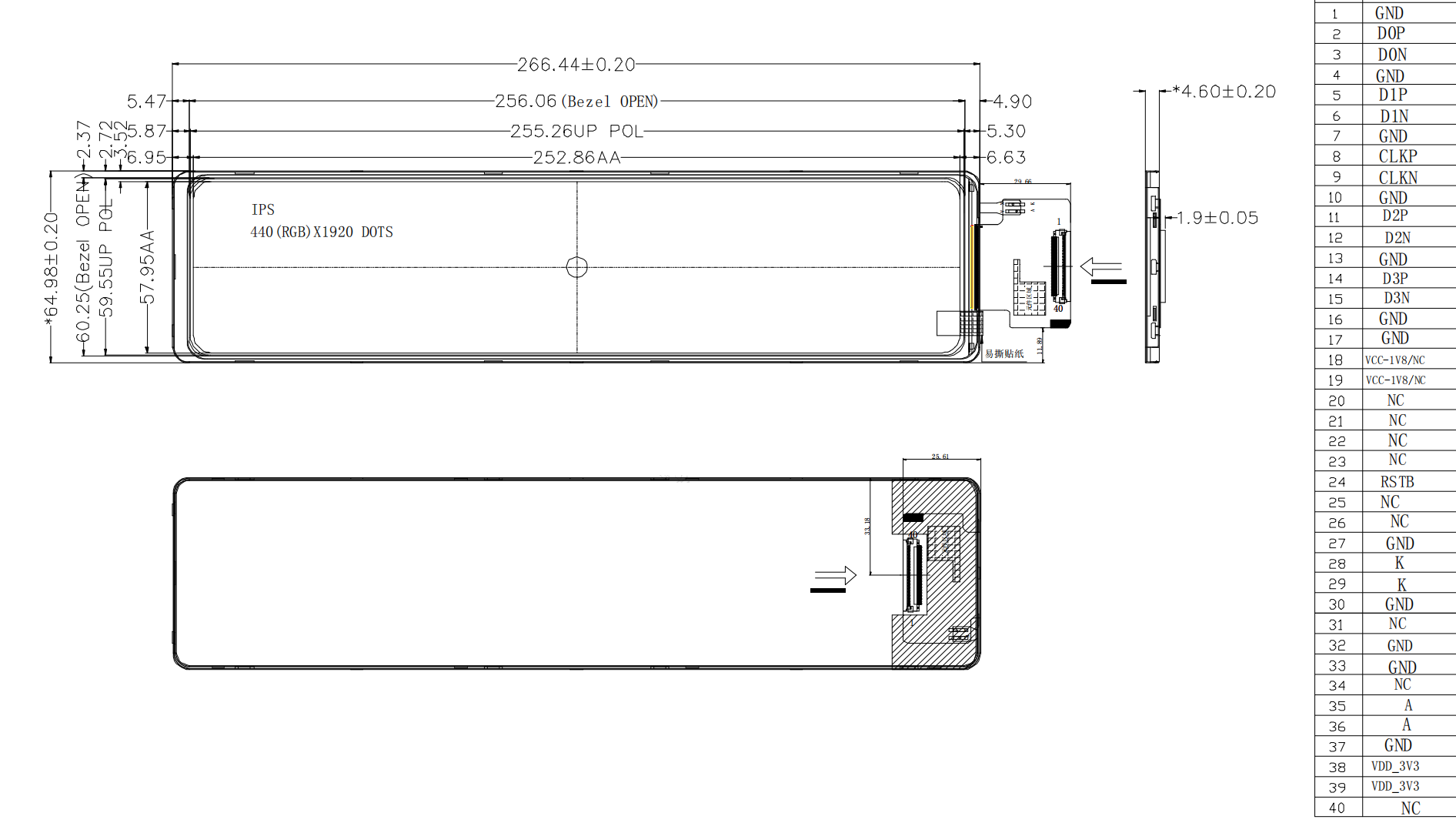

Outline Dimension:64.98(H)x266.44 (V) x4.6 (D) ±0.2mm
Active area (W×H):57.948(H) x252.864 (V)mm
Pixel Arrangement:RGB-stripe
Number of Dots:440xRGBx1920Pixel
Pixel pitch:43.9(H)*3*131.7(V)um
Operating Temperature:-20 ～ +70℃
Storage temperature:-30 ～ +80℃
