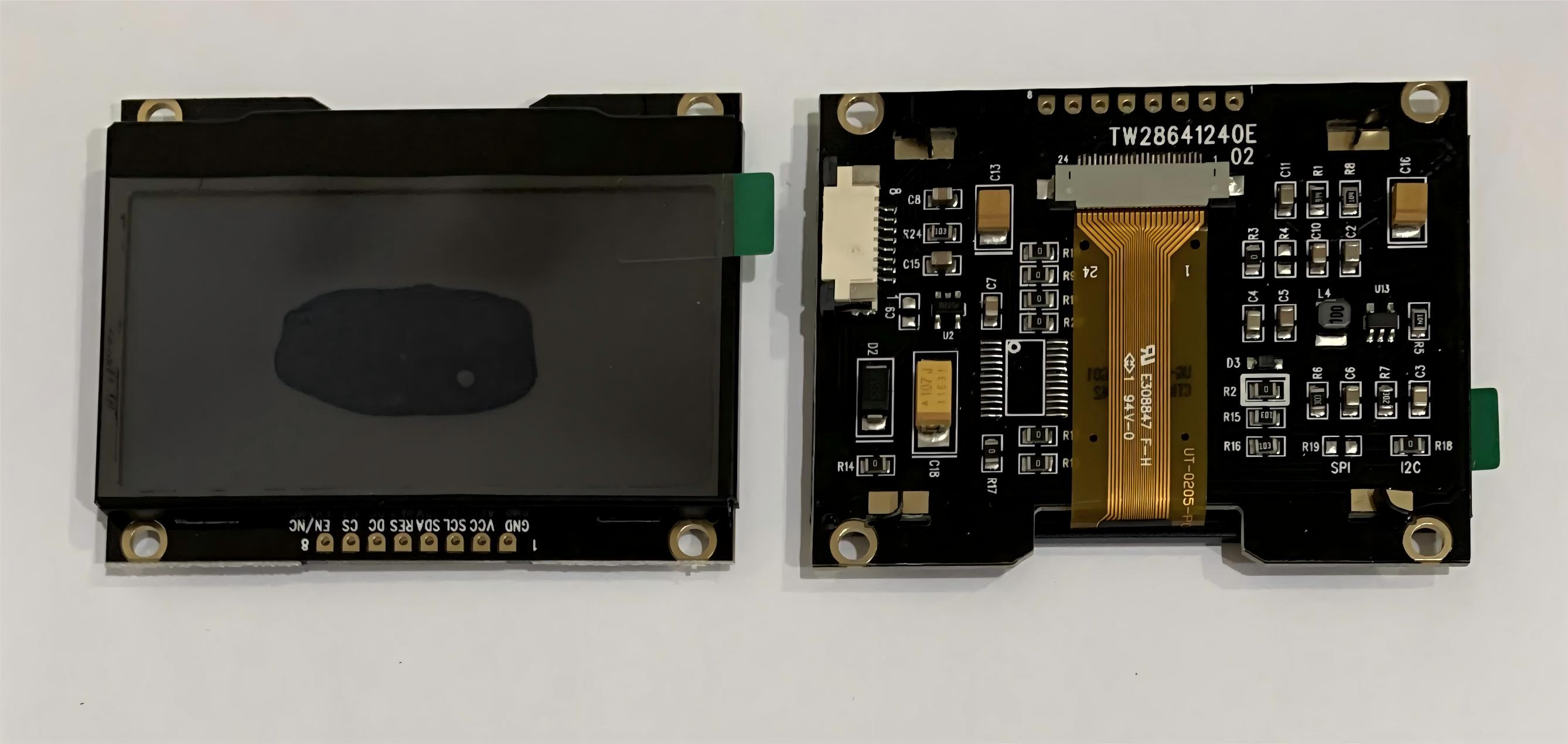

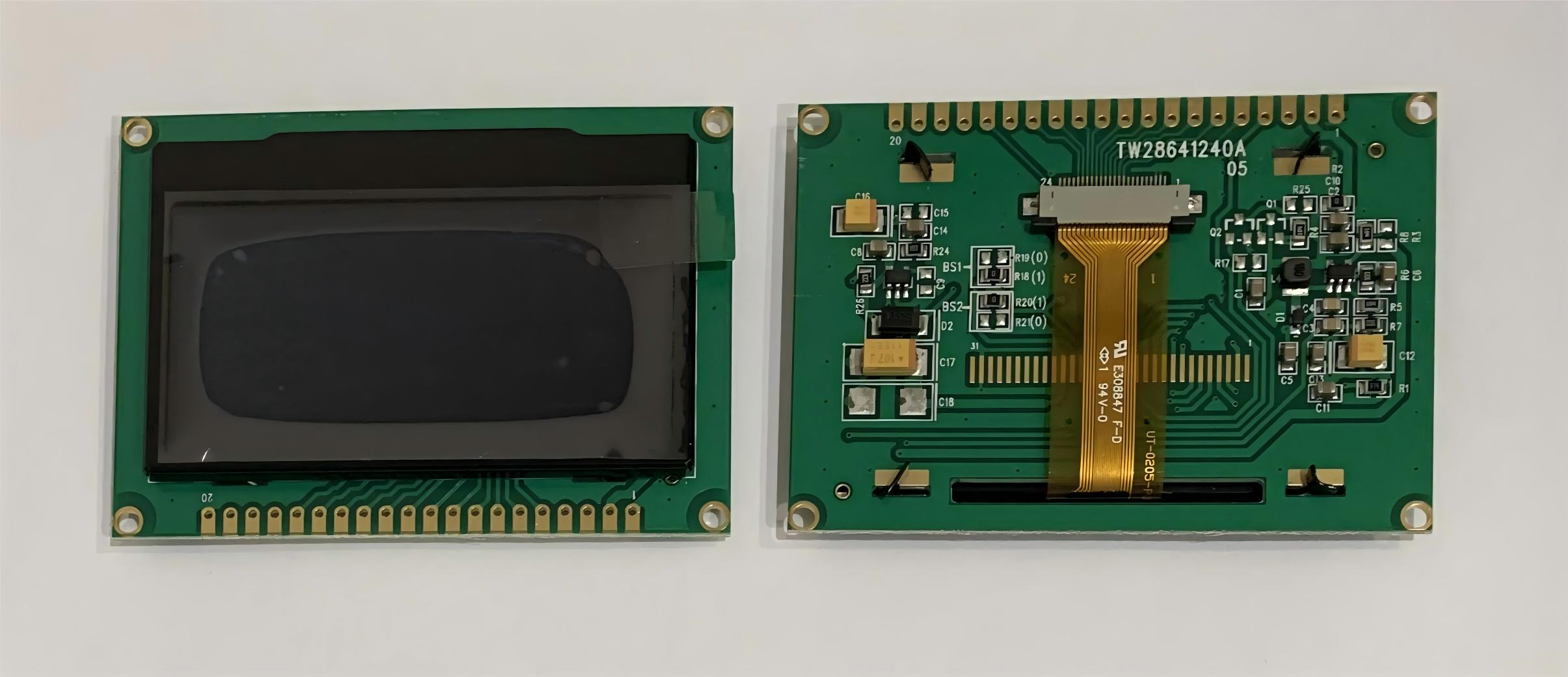

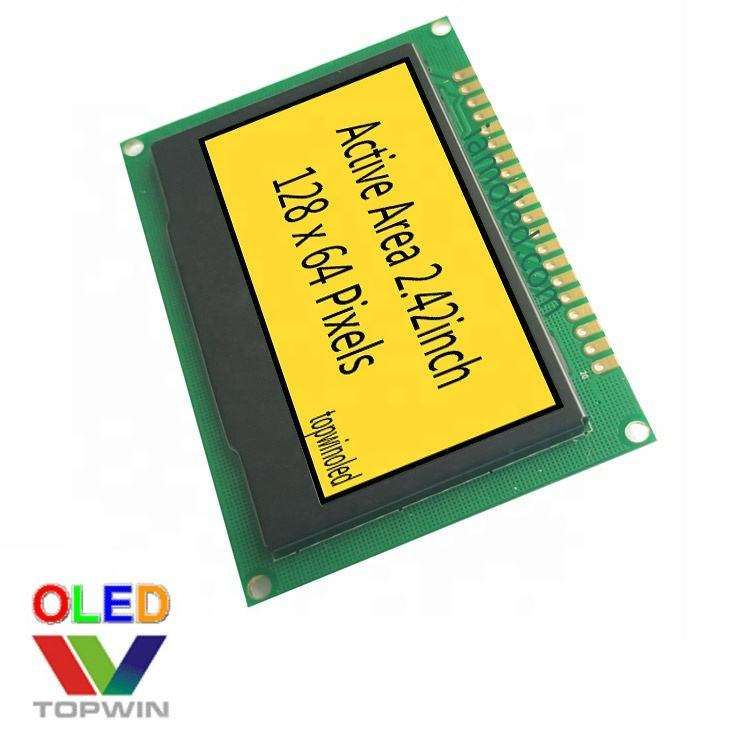

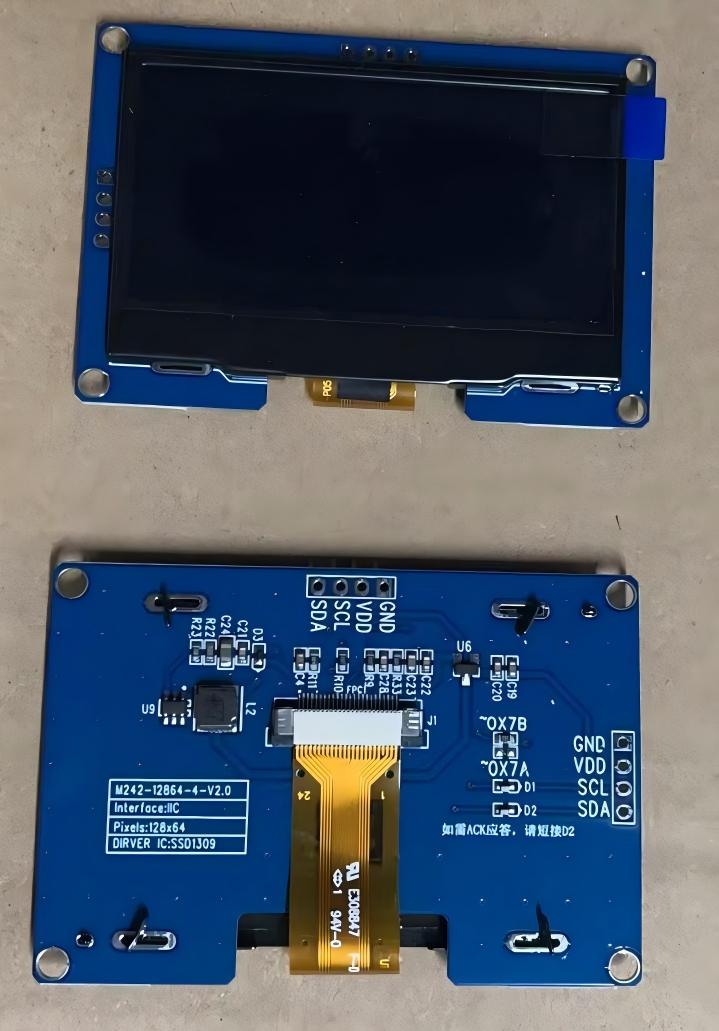

2.42'' 2.42inch 128x64 pixels yellow color oled module ssd1309 SPI parallel with PCB board 20pin 8pin 4pin
- Overview
- Recommended Products
Display Specifications
Display Mode:Passive Matrix—OLED
Interface:8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C
Drive Duty:1/64
Driver IC:SSD1309
Shell:0.5T
Mechanical Specifications

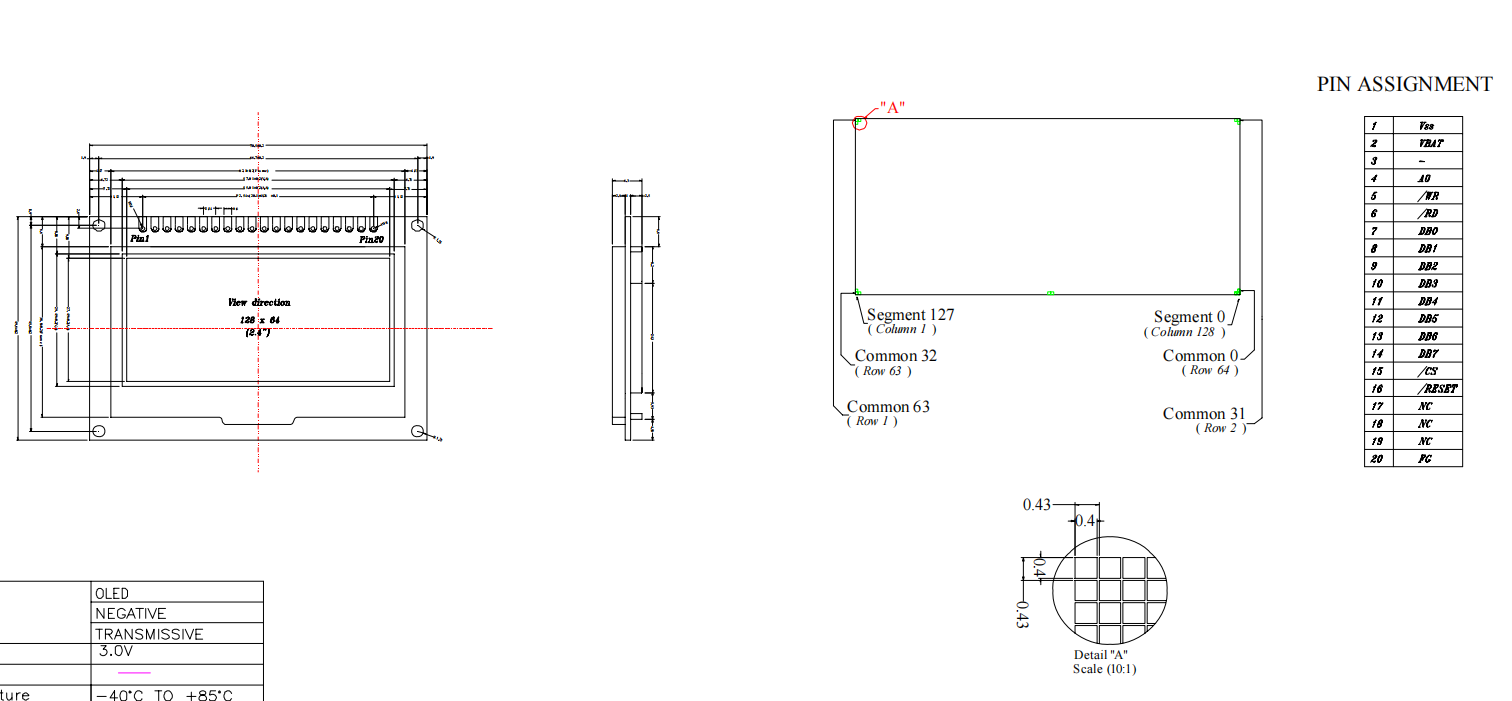

Outline Drawing:70.5(W)x49.6(H)x6.5Max(T) mm
View Area:57.01(W)x29.49(H) mm
Active Area:55.012(W)x27.49(H) mm
Resolution:128dots x 64dots --
Pixel Pitch:0.43(W)x0.43(H) mm
Pixel Size:0.40(W)x0.40(H) mm
