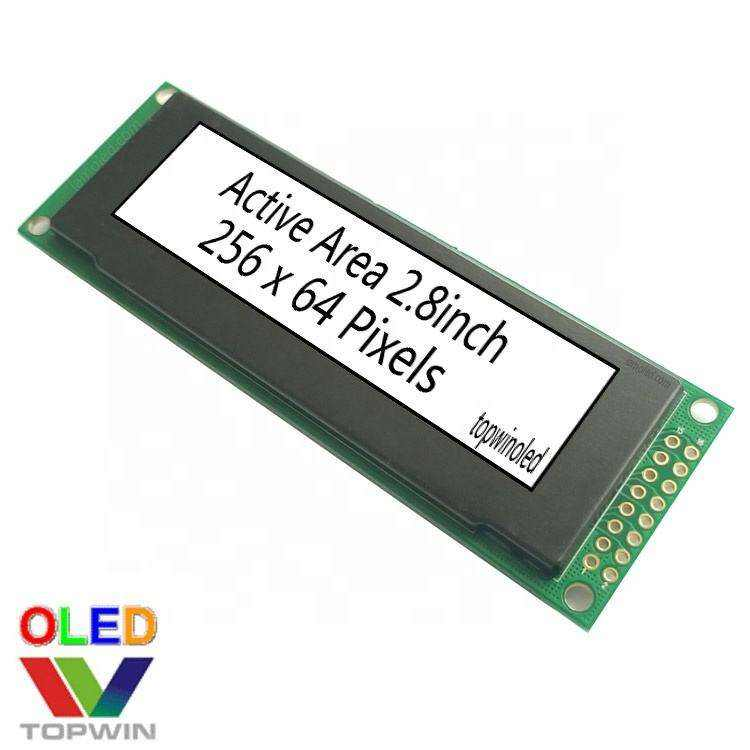

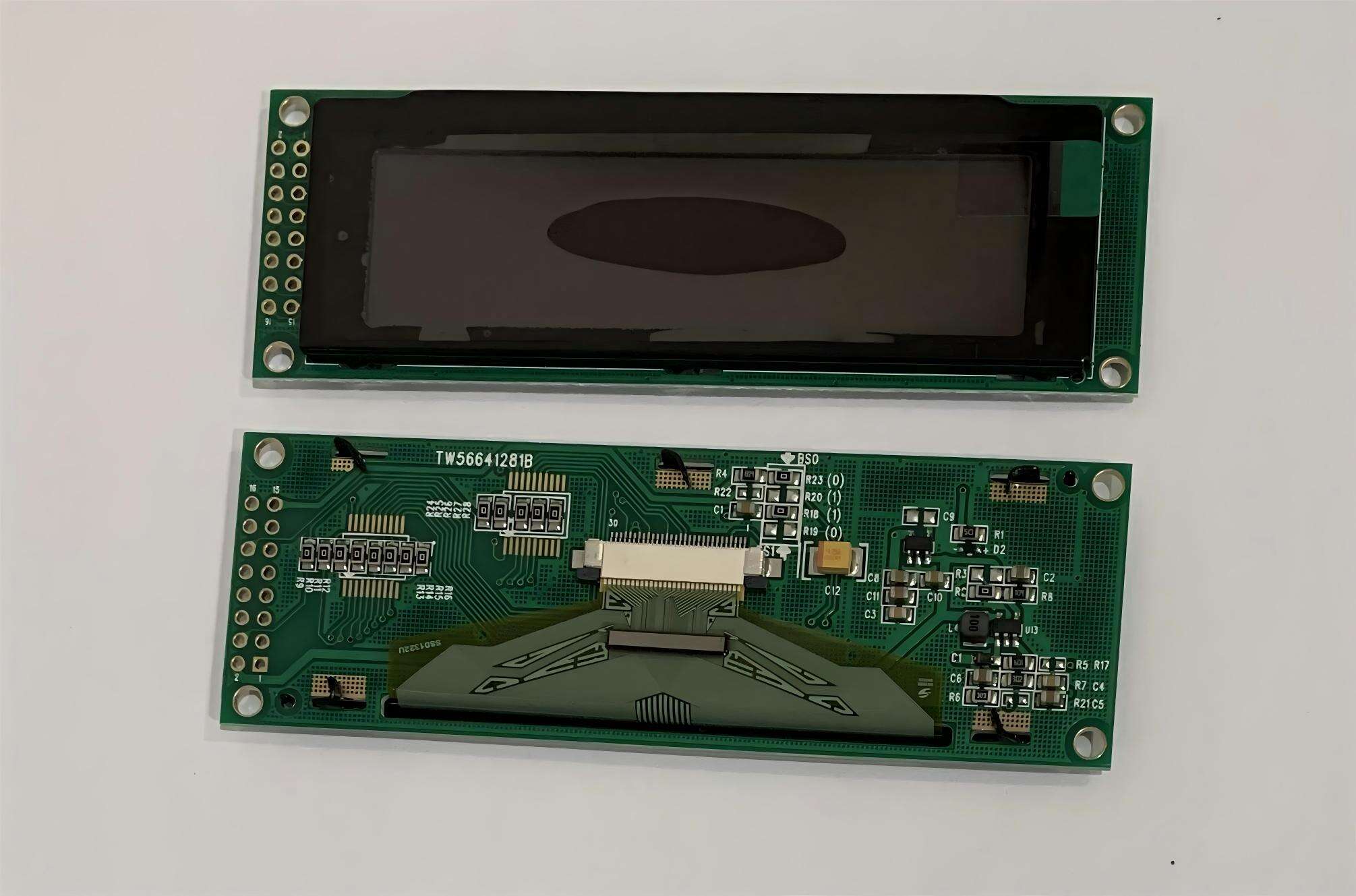

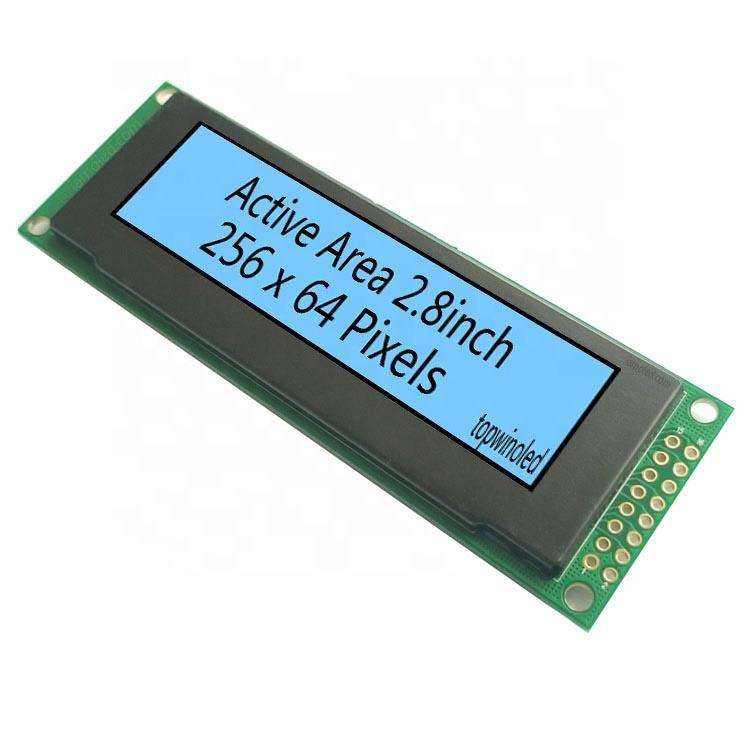

2.8'' 2.8inch 256x64 Pixels 16 Grayscale Blue Color Oled Module Ssd1322 Oled Display with PCB SPI Parallel Interface PCB Board
- Overview
- Recommended Products
1.1 Display Specifications
Item Specs
Display Mode： Passive Matrix—OLED：
Color:Yellow/Blue/White
Interface: 8-Bit 68XX/80XX Parallel、 SPI
Drive Duty: 1/64
Driver IC: SSD1322

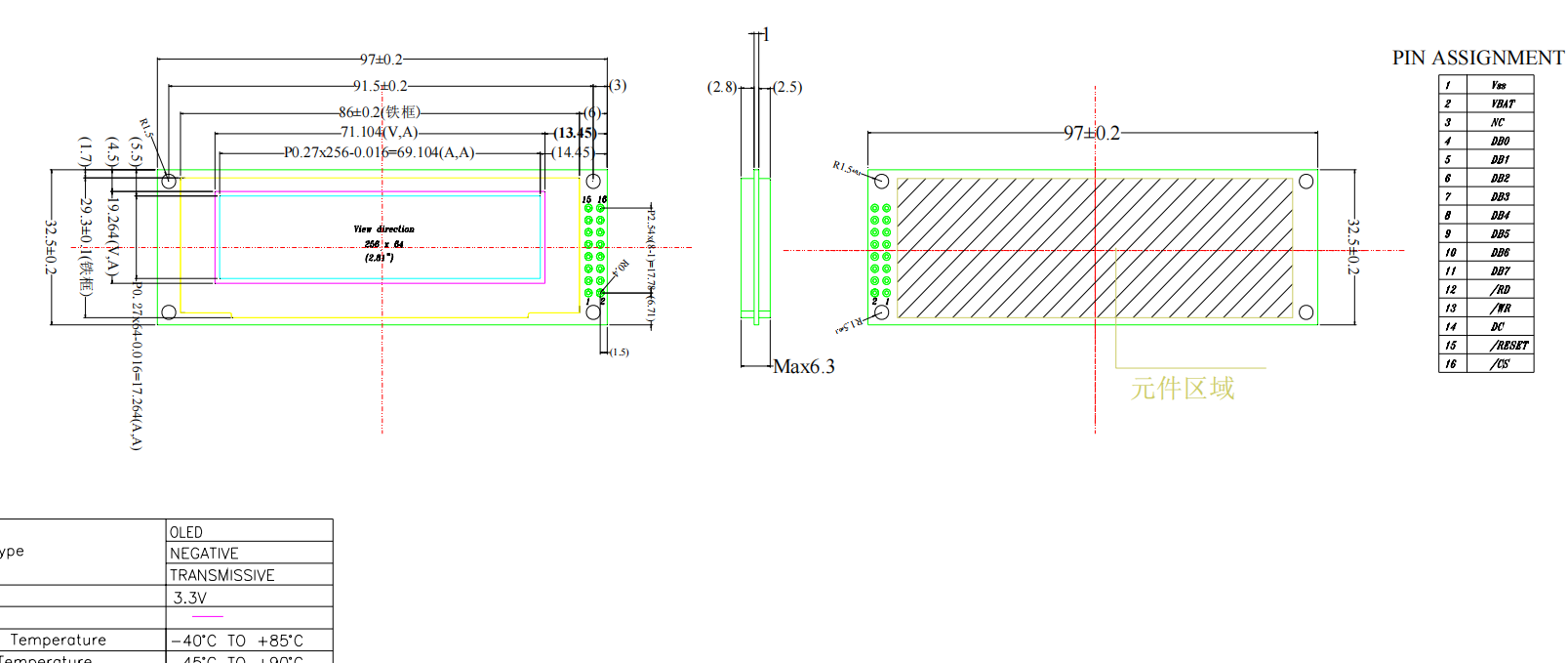

1.2 Mechanical Specifications
Outline Drawing:97.0(W)x32.5(H)x6.3Max(T) mm
View Area 71.104(W)x19.264(H) mm
Active Area:69.104(W)x17.264(H) mm
Lattice:256dots x 64dots
Pixel Pitch:0.30(W)x0.30(H) mm
Pixel Size:0.28(W)x0.28(H) mm
