0.78inch 0.78'' small oled display panel resolution 128X80 SSD1317 white color I2C interface
- Overview
- Recommended Products
Driver IC:SSD1317
Interface:I²C
Color options:White
1.2 Mechanical Specifications

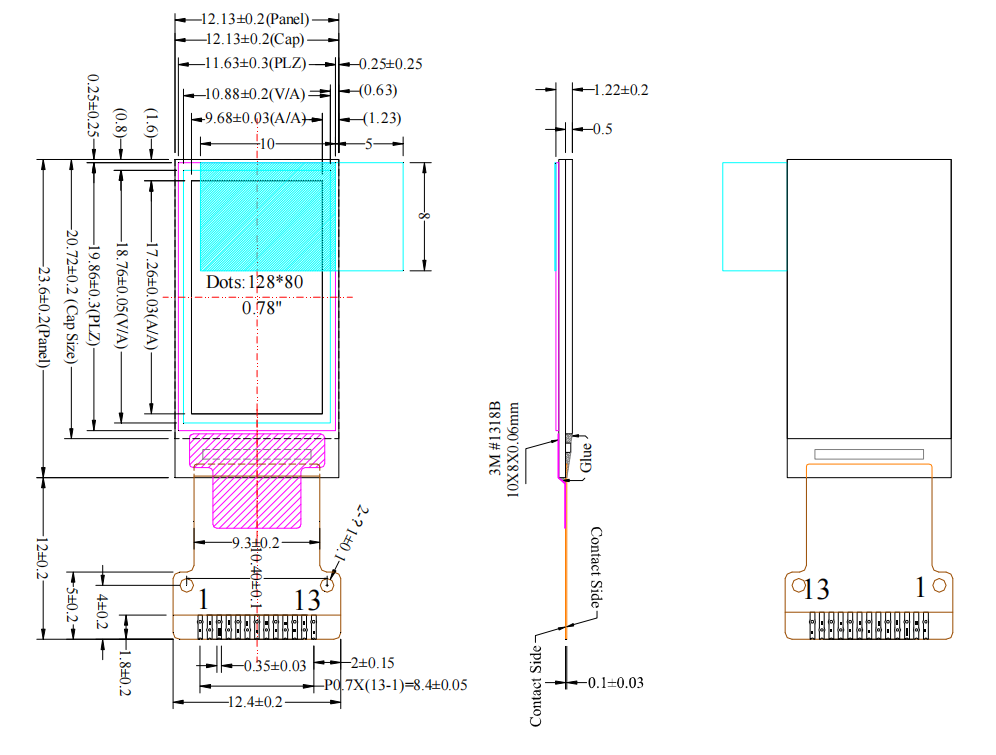

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 128 x 80
3) Panel Size: 12.13 x 23.6 x 1.22 (mm)
4) Active Area: 9.68 x 17.26 (mm)
5) Pixel Pitch: 0.135 x 0.12125 (mm)
6) Pixel Size: 0.115 x 0.10125 (mm)
