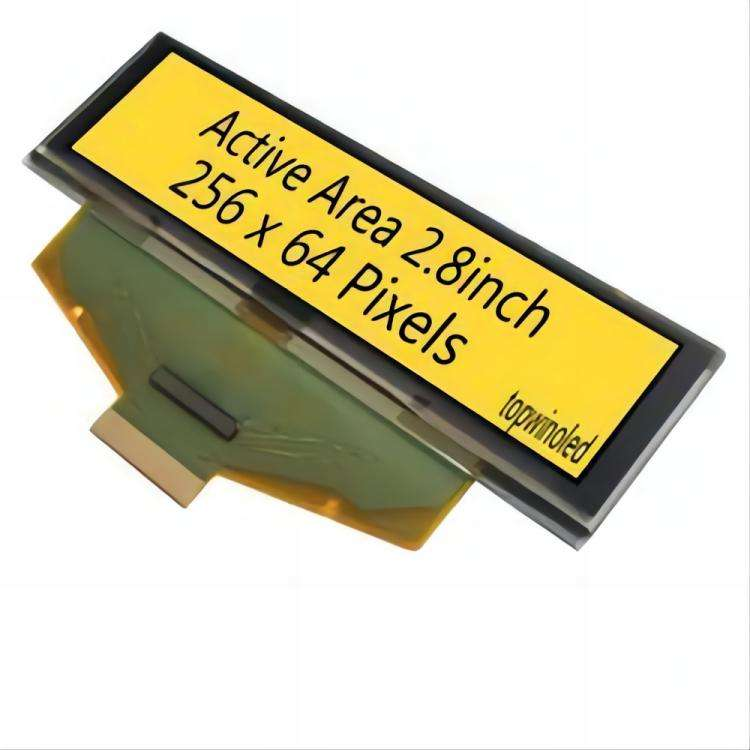

2.8'' 2.8inch 2.8 inch 256x64 resolution 30 pin yellow oled display UG-5664ASYDF01 with I2C SPI parallel Interface SSD1322
- Overview
- Recommended Products
Driver IC:1122

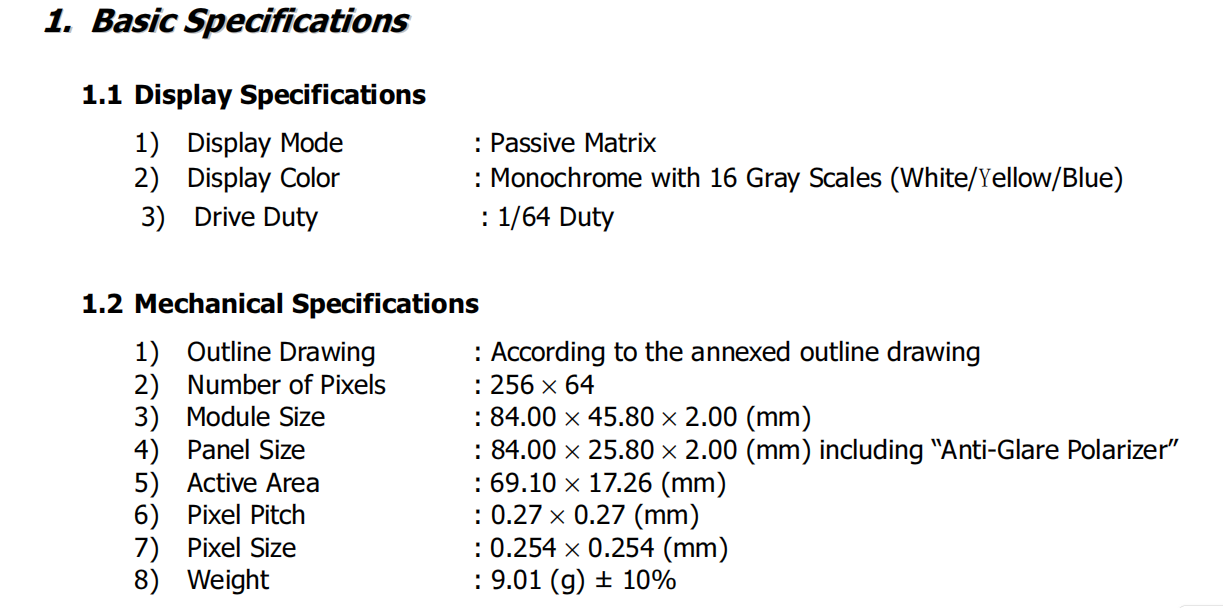

Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : Monochrome with 16 Gray Scales (White/Yellow/Blue)
3) Drive Duty : 1/64 Duty
Mechanical Specifications
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 256 × 64
3) Module Size : 84.00 × 45.80 × 2.00 (mm)
4) Panel Size : 84.00 × 25.80 × 2.00 (mm) including “Anti-Glare Polarizer”
5) Active Area : 69.10 × 17.26 (mm)
6) Pixel Pitch : 0.27 × 0.27 (mm)
7) Pixel Size : 0.254 × 0.254 (mm)
8) Weight : 9.01 (g) ± 10%
