Driver IC: SSD1309
Interface:Parallel/I²C/4-wireSPI

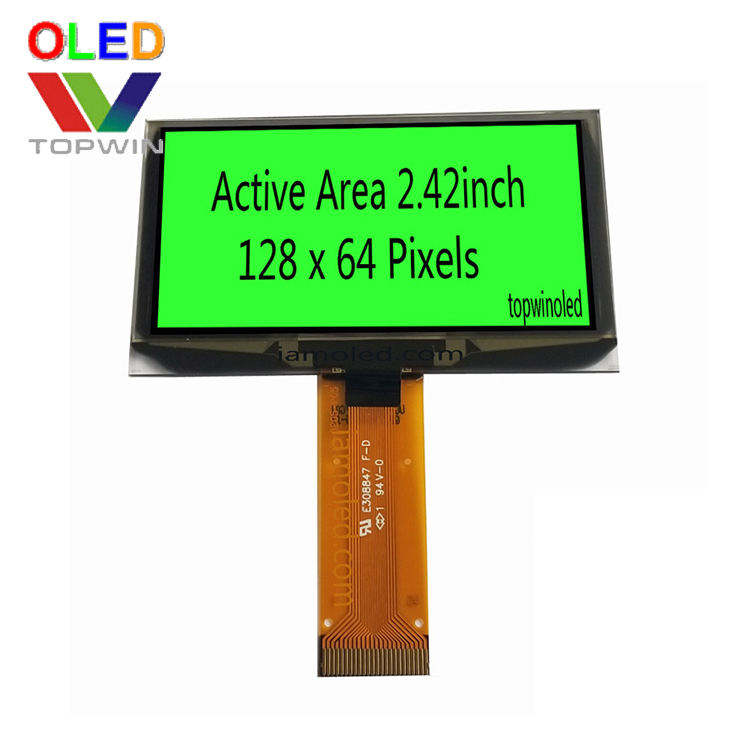

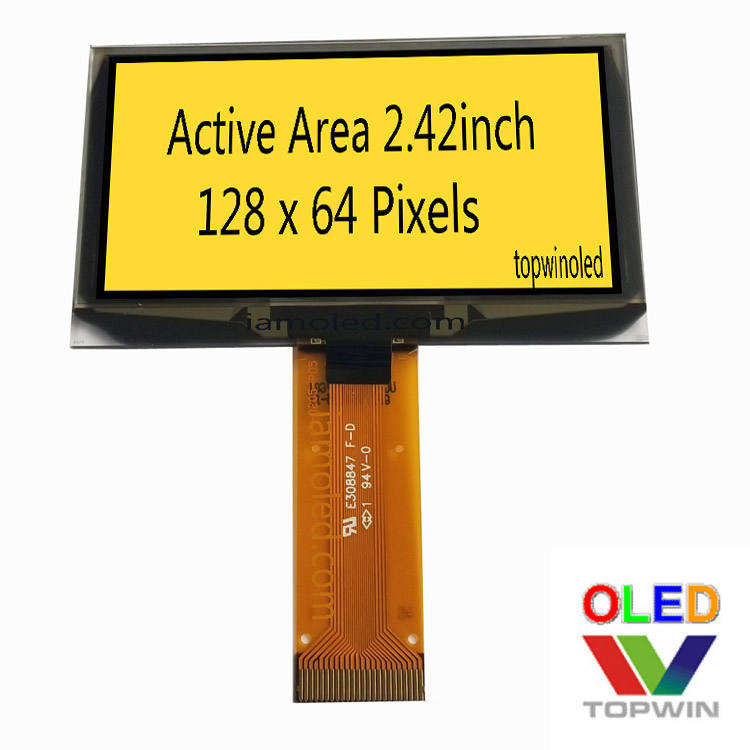

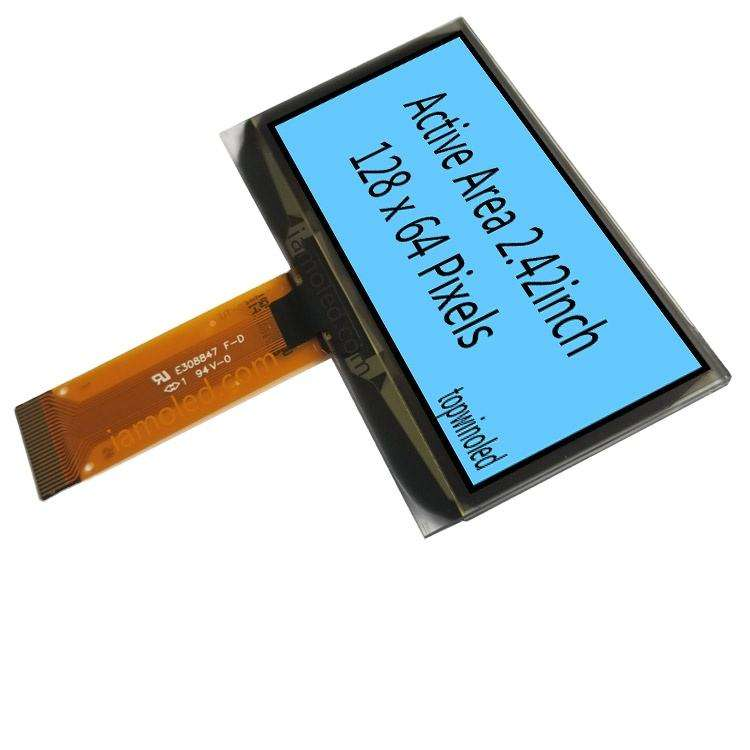

Color options:White/Green/Blue/Yellow
1.1 Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : Monochrome (White/Blue/Yellow/Green)
3) Drive Duty : 1/64 Duty
1.2 Mechanical Specifications

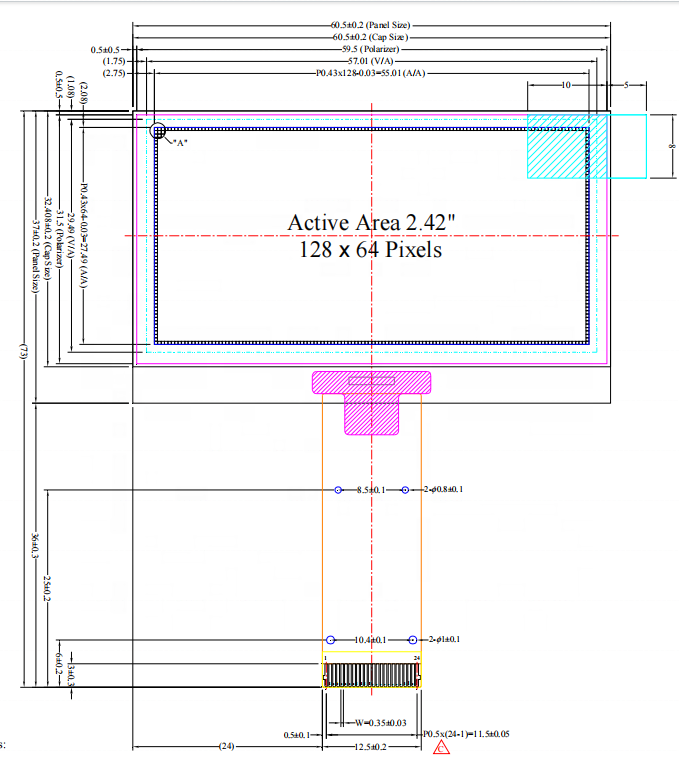

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 64
3) Module Size : 60.50 × 73.00 × 2.00 (mm)
4) Panel Size : 60.50 × 37.00 × 2.00 (mm) including “Anti-Glare Polarizer”
5) Active Area : 55.01 × 27.49 (mm)
6) Pixel Pitch : 0.43 × 0.43 (mm)
7) Pixel Size : 0.40 × 0.40 (mm)
8) Weight : 8.60 (g) ± 10%
