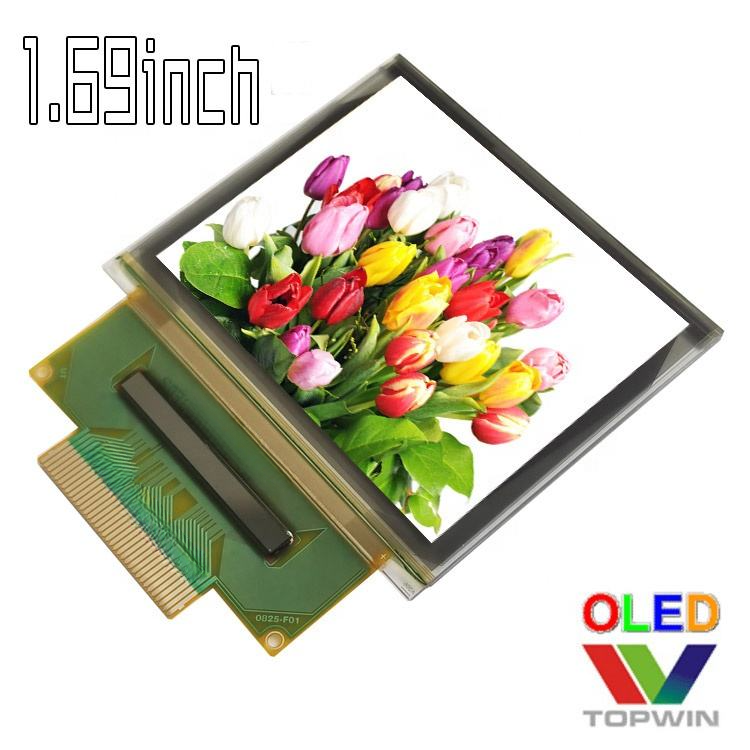

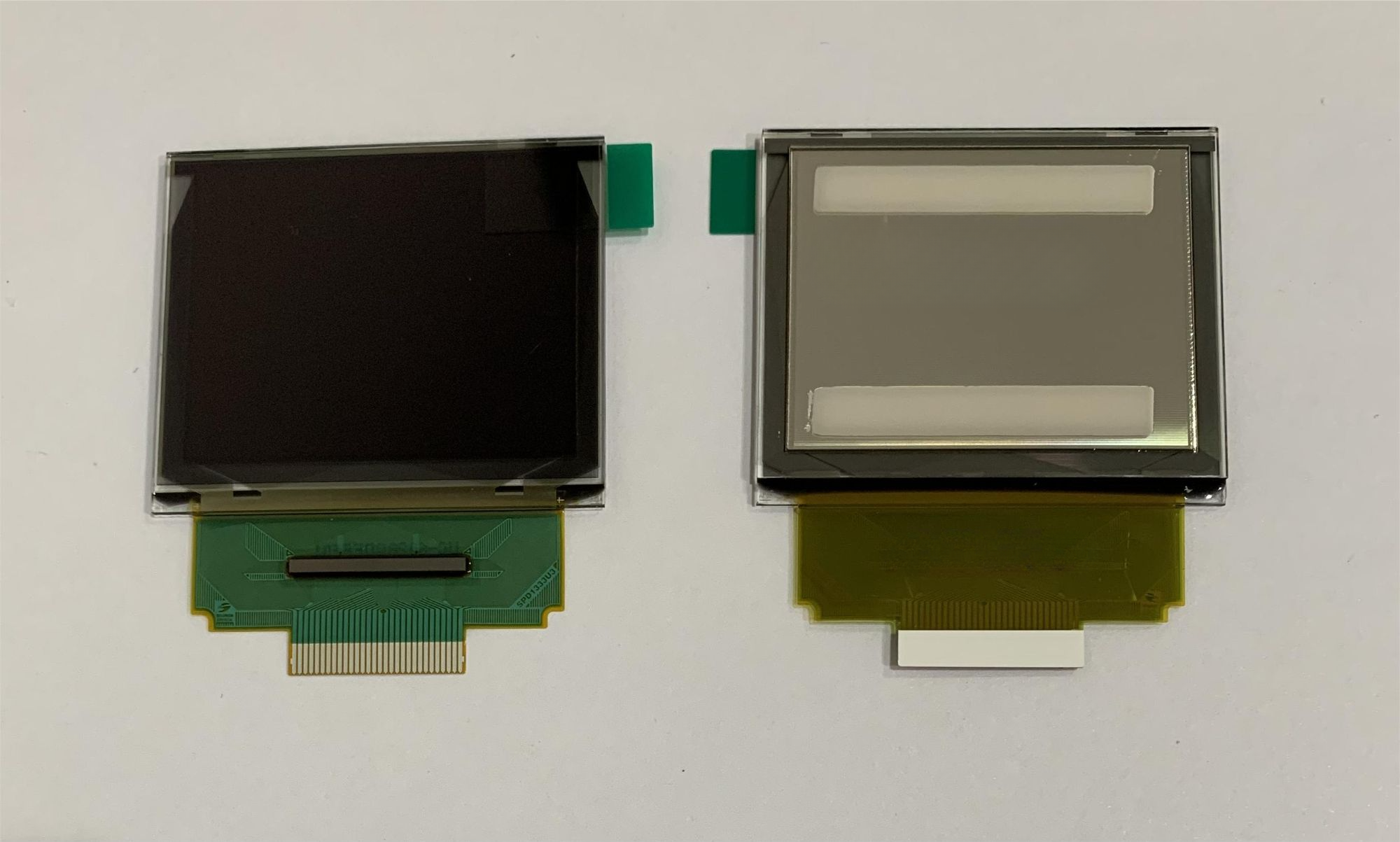

1.69 Inch Oled Screen 160x128 Resolution Small Screens Small Displays UG-6028GDEFF01 Full Color Small Oled Display Panel SSD1333
1) Driver IC:SSD1333
2) Number of Pixels : 160 (RGB) 128
3) Module Size : 39.90 48.50 1.60 (mm)
4) Panel Size : 39.9 0 34.00 1.60 (mm) including ”Anti-Glare polarizer”
5) Active Area : 33.575 26.864 (mm)
6) Pixel Pitch : 0.07 0.21 (mm)
7) Pixel Size : 0.045 0.194 (mm)
8) Weight : TBD (g) ± 10%
9) Interface:8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
- Overview
- Contact us for detailed datasheet and prices
- Recommended Products
Get sample & datasheet
