5.48inch 5.5'' amoled display ONCELL Touch Panel 916X2032 ILI7836A MIPI Interface Full Color Am Oled Display
- Overview
- Recommended Products

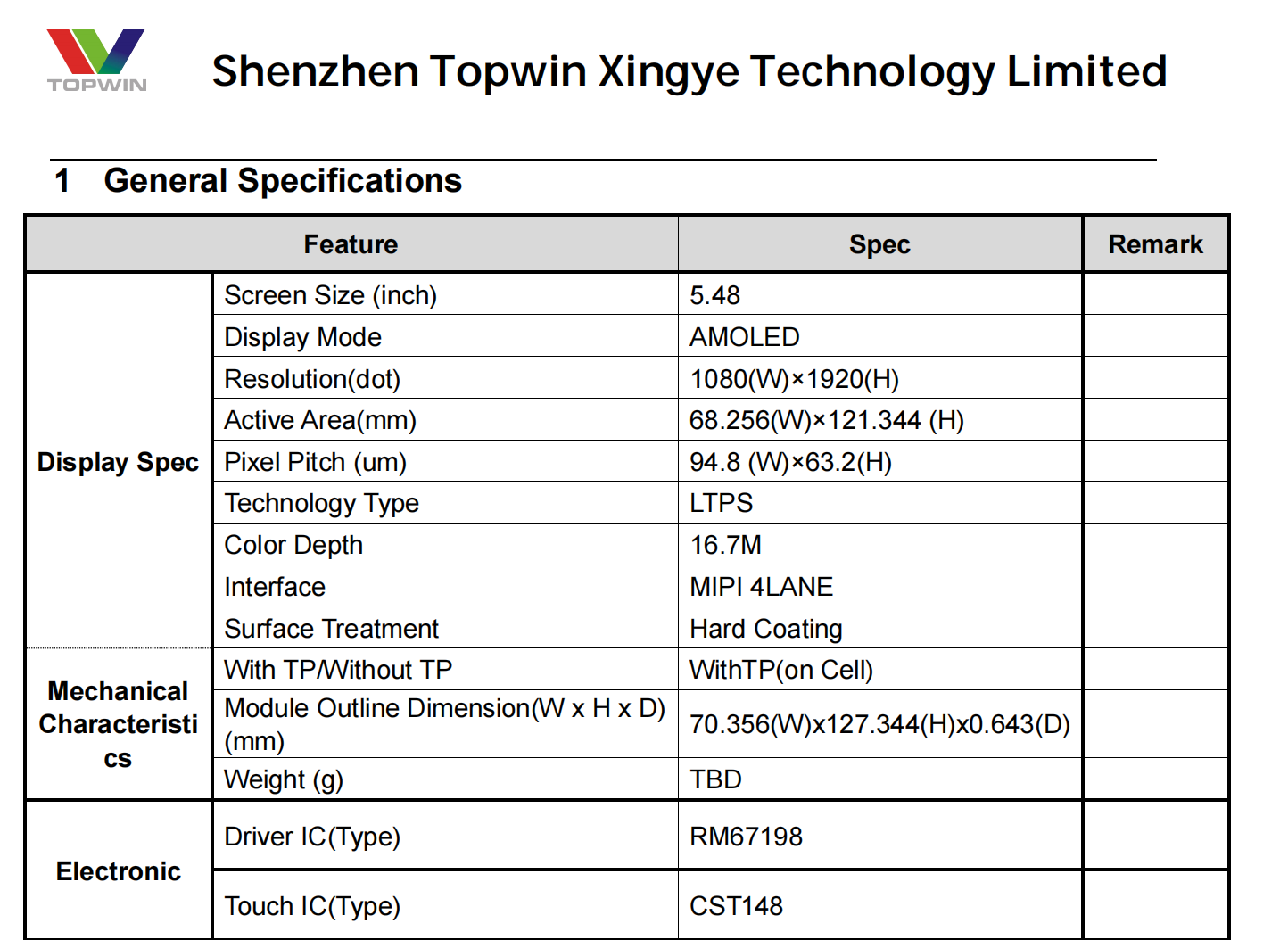

Screen Size (inch) 5.48
Display Mode AMOLED
Resolution(dot) 1080(W)×1920(H)
Active Area(mm) 68.256(W)×121.344 (H)
Pixel Pitch (um) 94.8 (W)×63.2(H)
Technology Type LTPS
Color Depth 16.7M
Interface MIPI 4LANE
Surface Treatment Hard Coating
With TP/Without TP WithTP(on Cell)

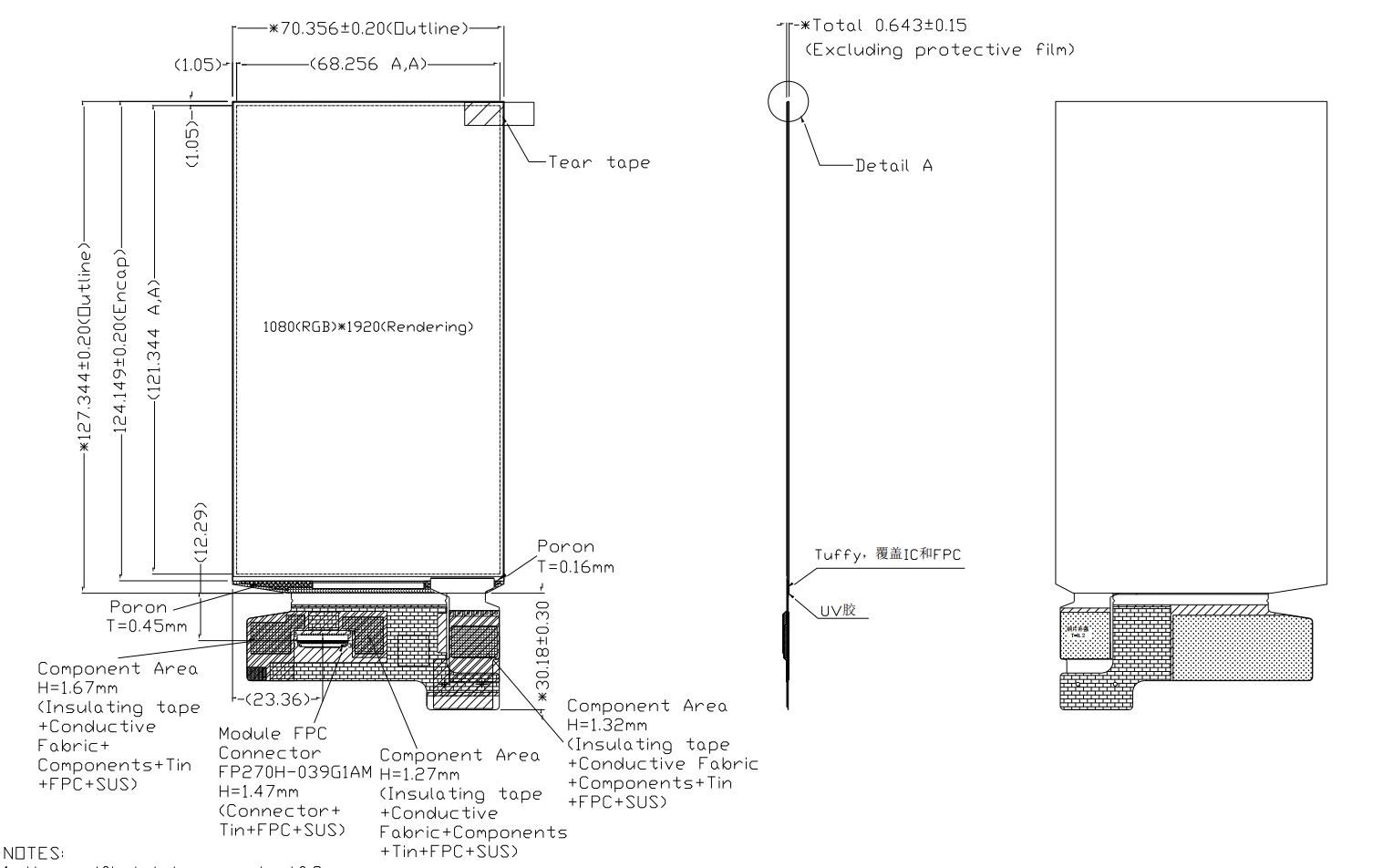

Module Outline Dimension:70.356(W)x127.344(H)x0.643(D)
Driver IC(Type) RM67198
Touch IC(Type) CST148
