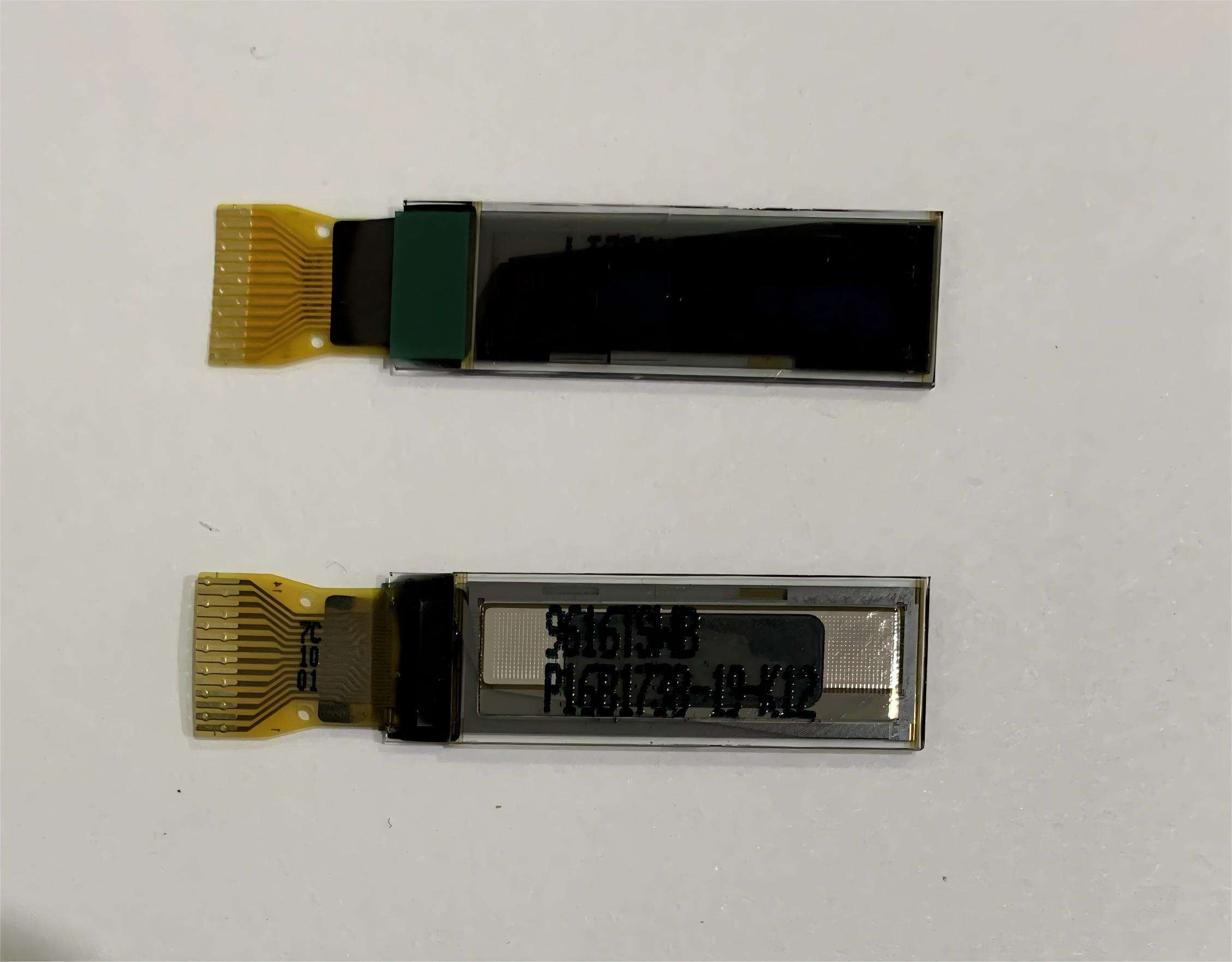

0.84" 0.84 inch white color type 14 pin 96 x 16 resolution oled display panel I2C interface UG-9616TSWBG01
- Overview
- Recommended Products
Driver IC:SSD1306
Interface:I2C
Color options:Blue/White

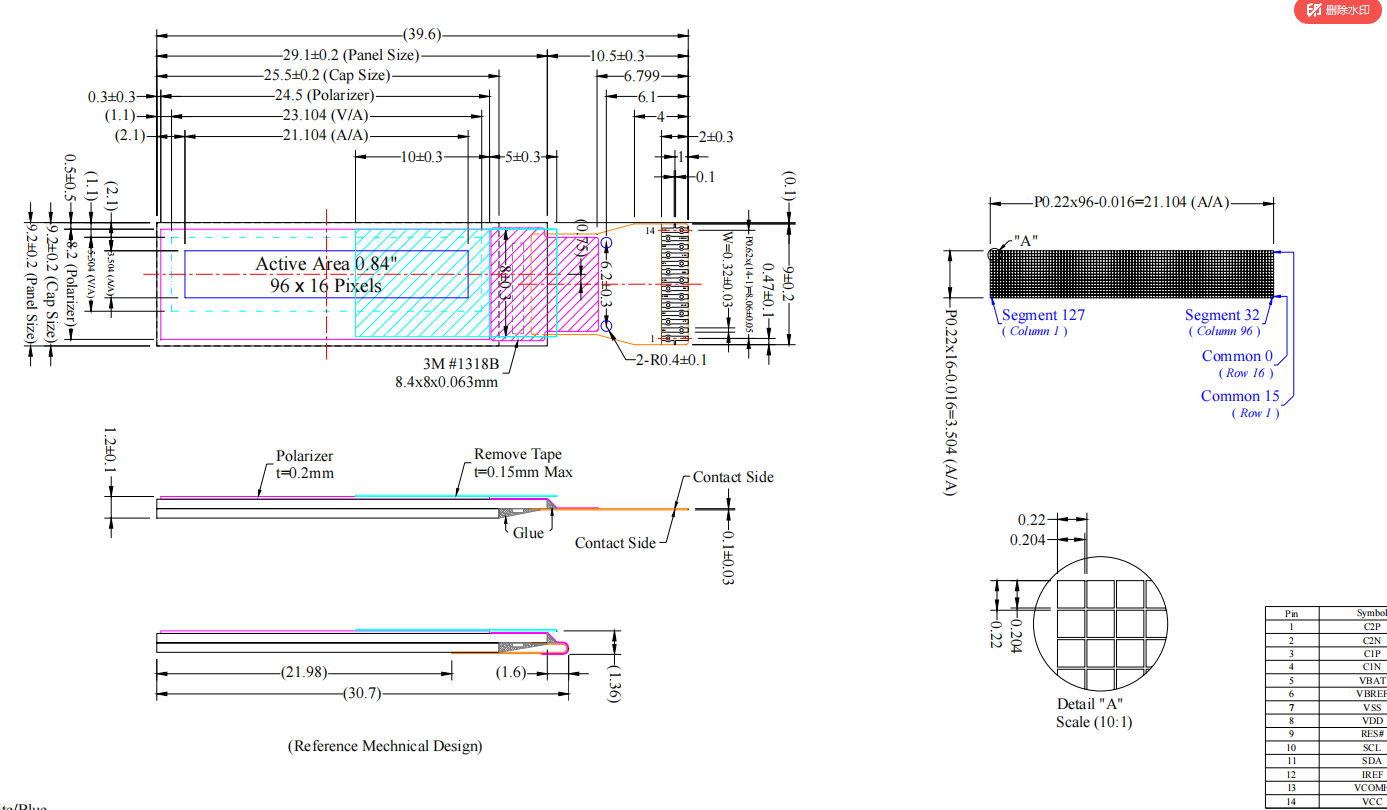

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 96 × 16
3) Panel Size: 29.10 × 9.20 × 1.60 (mm)
4) Active Area: 21.104 × 3.504 (mm)
5) Pixel Pitch: 0.22 × 0.22 (mm)
6) Pixel Size: 0.204 × 0.204 (mm)
7) Weight: 0.89 (g)
