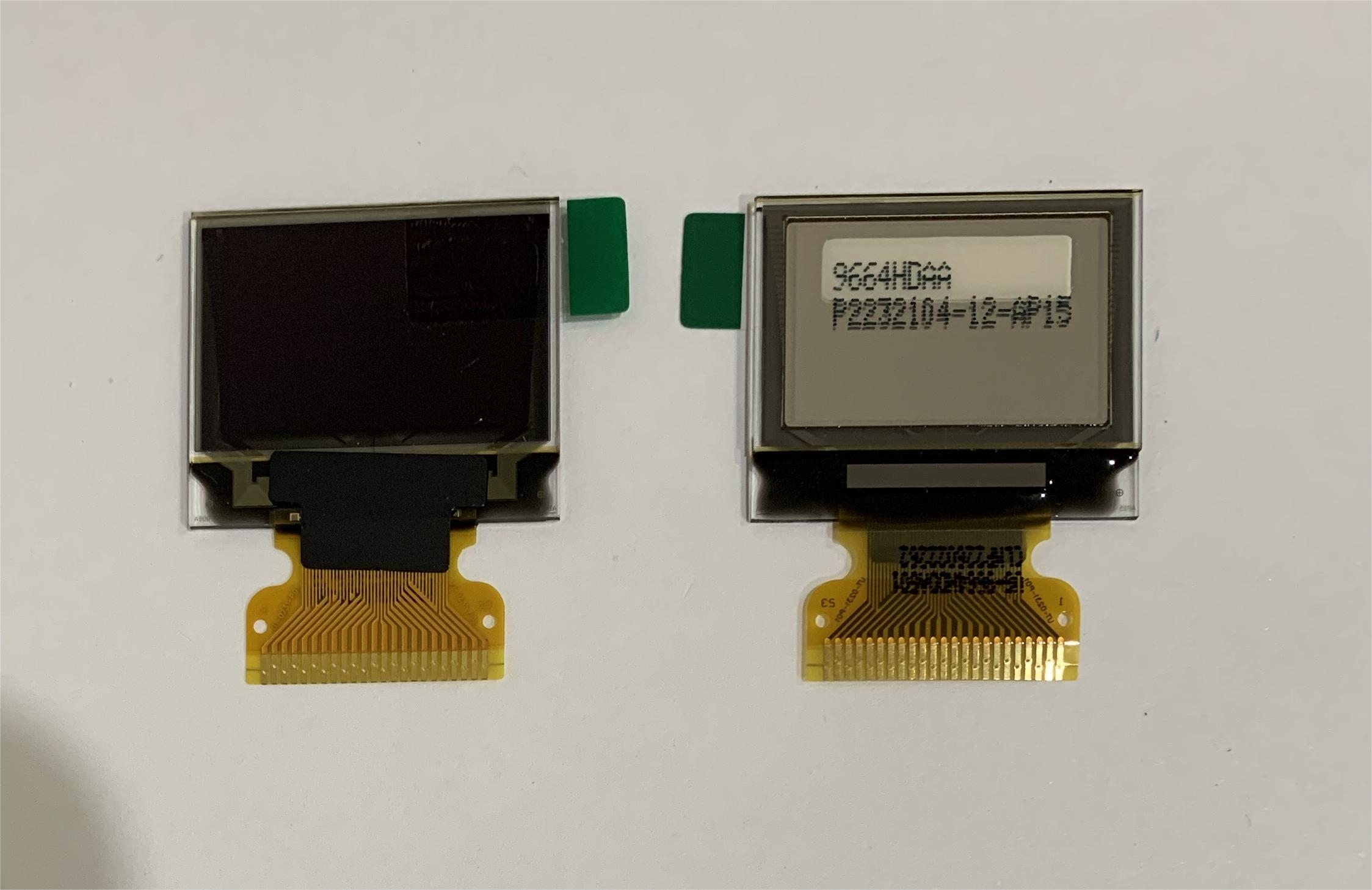

0.95'' 0.95inch 96x64 resolution full color oled display panel UG-9664HDDAG01 mini oled display micro oled
- Overview
- Recommended Products

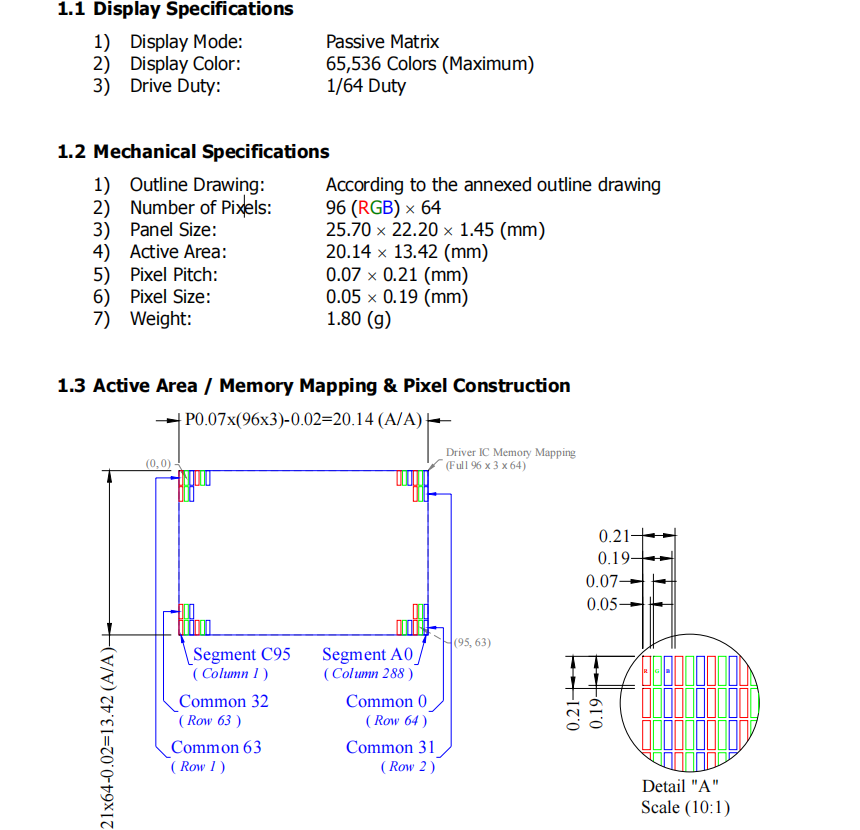

1.1 Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: 65,536 Colors (Maximum)
3) Drive Duty: 1/64 Duty
1.2 Mechanical Specifications

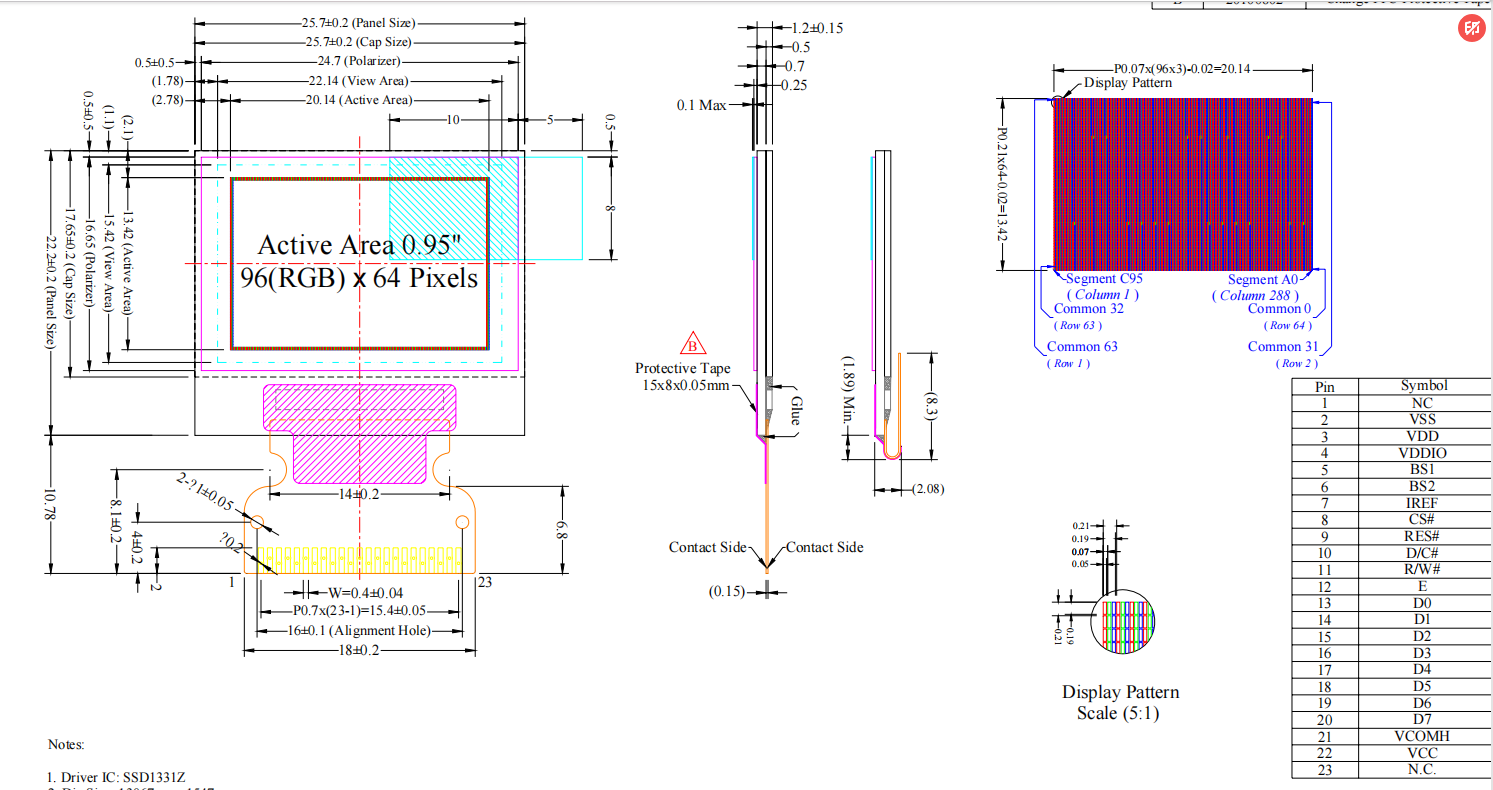

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 96 (RGB) × 64
3) Panel Size: 25.70 × 22.20 × 1.45 (mm)
4) Active Area: 20.14 × 13.42 (mm)
5) Pixel Pitch: 0.07 × 0.21 (mm)
6) Pixel Size: 0.05 × 0.19 (mm)
7) Weight: 1.80 (g)
IC:1351
Interface:Parallel/4-wire SPI
