0.77inch 0.77'' Small Oled Display Panel White Color Oled Display15pin Soldering Type SPI Interface SSD1312
- Overview
- Recommended Products
Driver IC:SSD1312
Interface: SPI, I²C
Color options:White
Mechanical Specifications

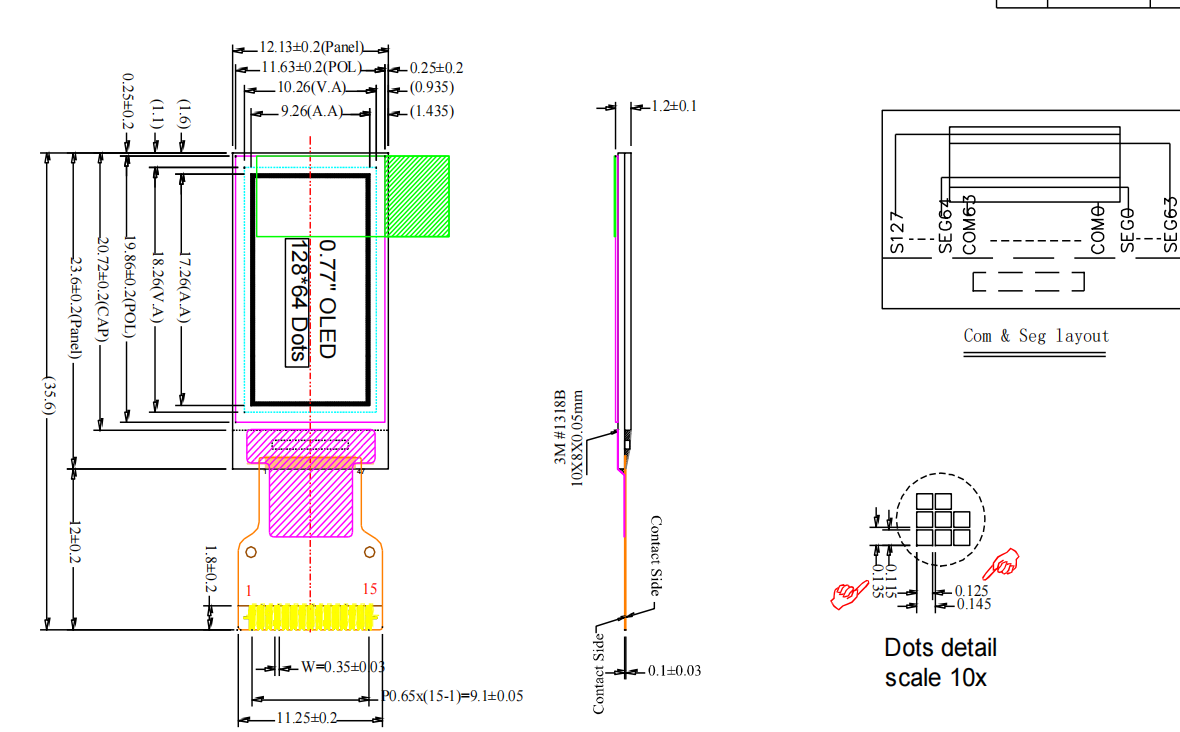

1) Outline Drawing:
According to the annexed outline drawing
2) Number of Pixels:64 x128
3) Panel Size:12.13 x 23.6 x 1.22 (mm)
4) Active Area:9.26 x 17.26 (mm)
5) Pixel Pitch:0.135 x 0.145 (mm)
6) Pixel Size:0.115 x0.125 (mm)
