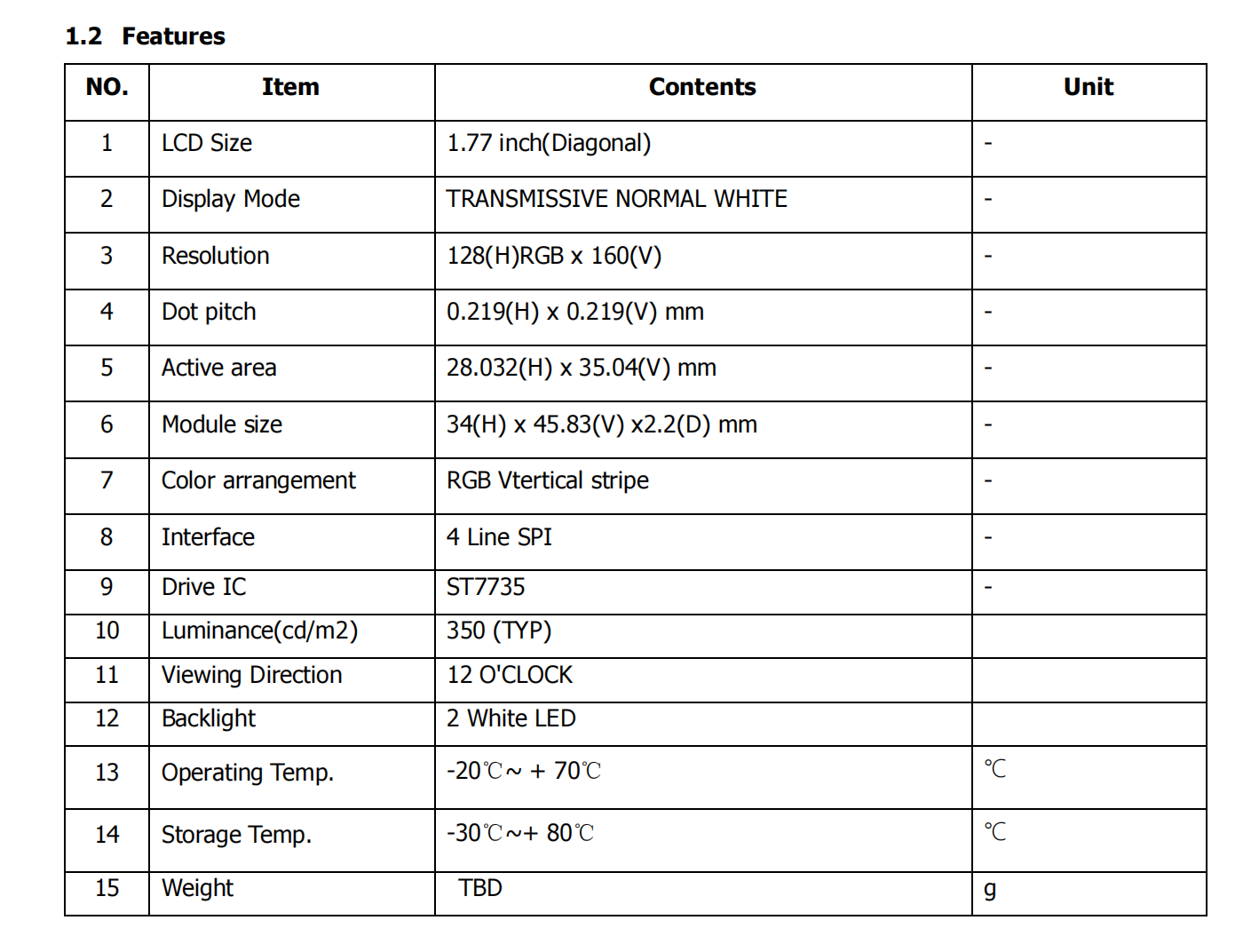

LCD Size：1.77 inch(Diagonal)
Display Mode：TRANSMISSIVE NORMAL WHITE
Resolution：128(H)RGB x 160(V)
Dot pitch：0.219(H) x 0.219(V) mm
Active area：28.032(H) x 35.04(V) mm

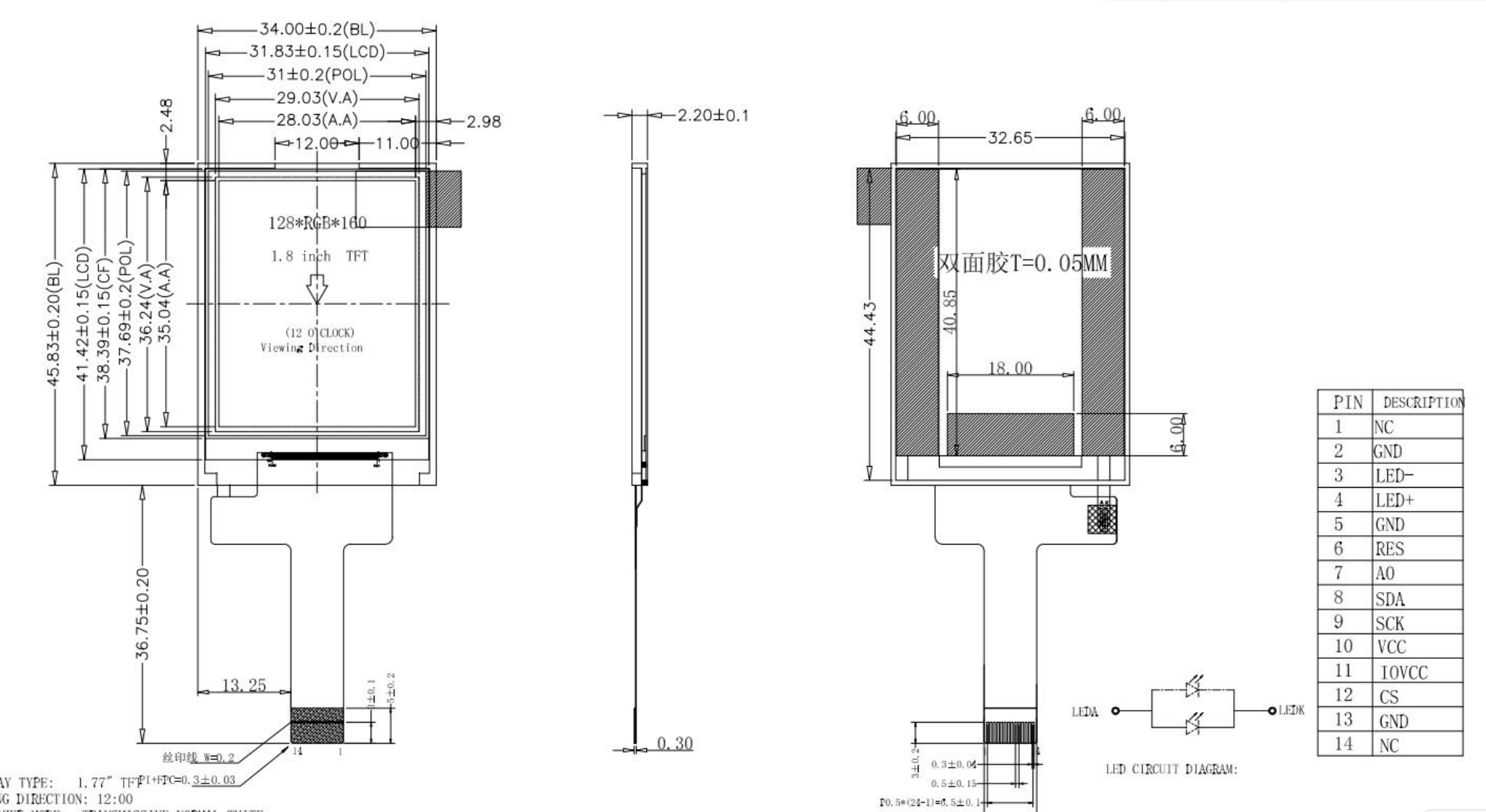

Module size：34(H) x 45.83(V) x2.2(D) mm
Color arrangement：RGB Vtertical stripe
Interface：4 Line SPI
Drive IC：ST7735
Viewing Direction：12 O'CLOCK
Backlight：2 White LED
Operating Temp.-20℃~ + 70℃
Storage Temp.-30℃~+ 80℃
