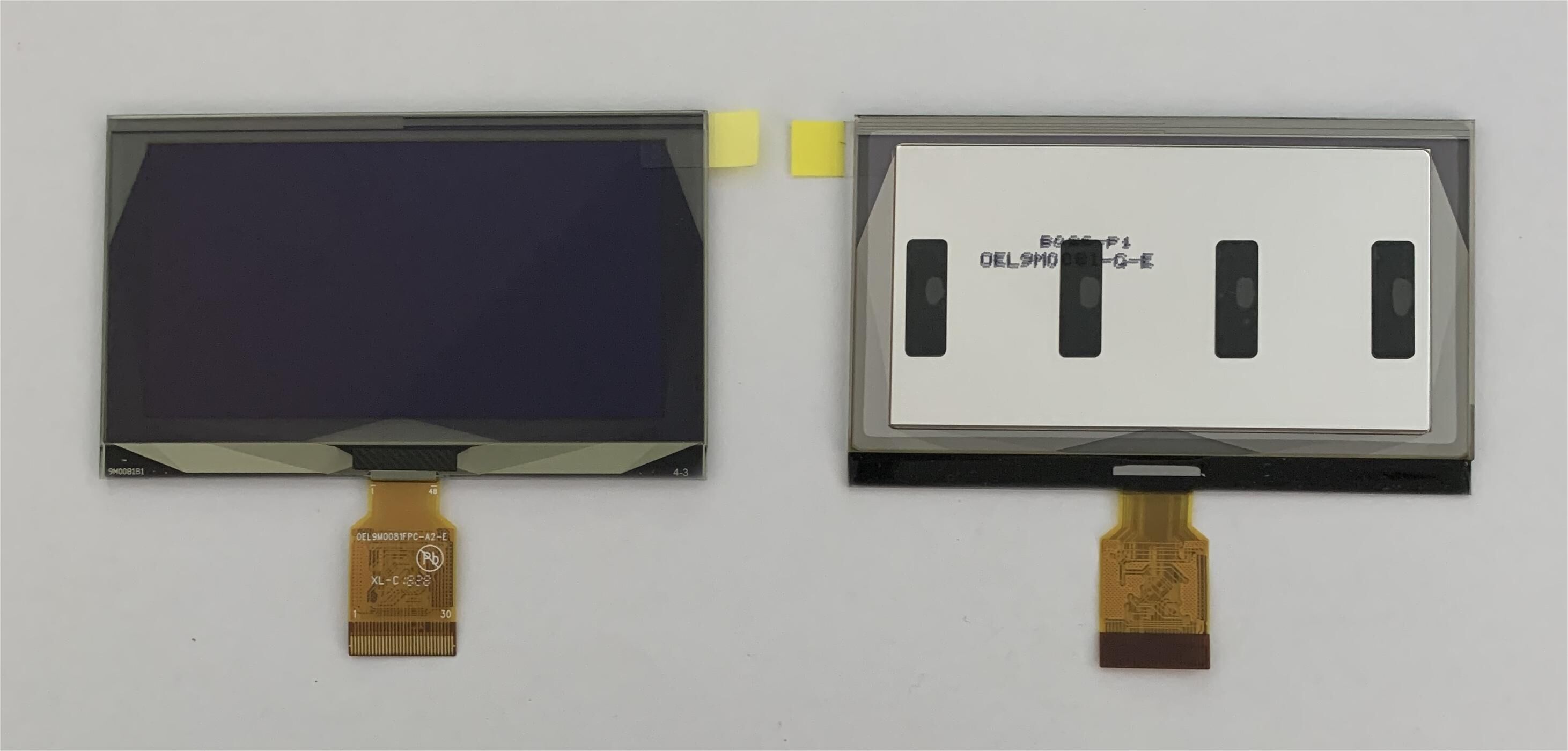

3.37'' 3.37inch 3.4 Inch 240x128 Resolution 16 Grayscale 24 Pin Oled Display QG-4028ASGIG01 Connector Type Ssd1322 Driving
- Overview
- Recommended Products

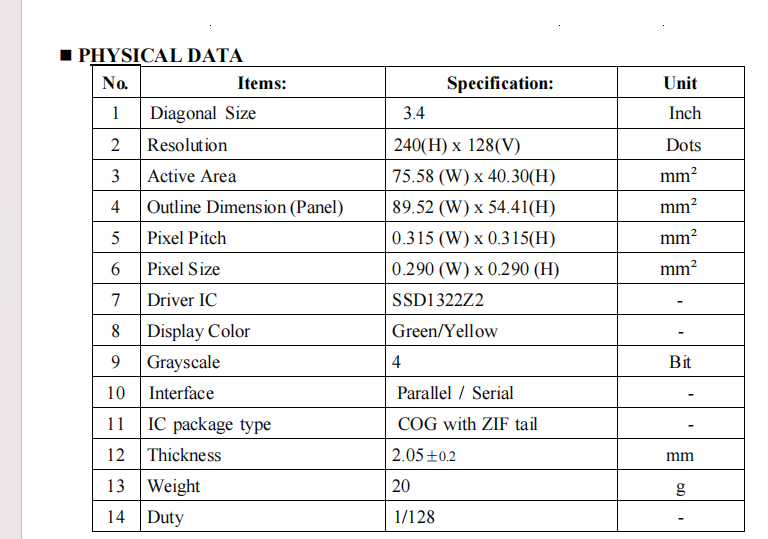

Diagonal Size 3.4 Inch
2 Resolution 240(H) x 128(V) Dots
3 Active Area 75.58 (W) x 40.30(H) mm²

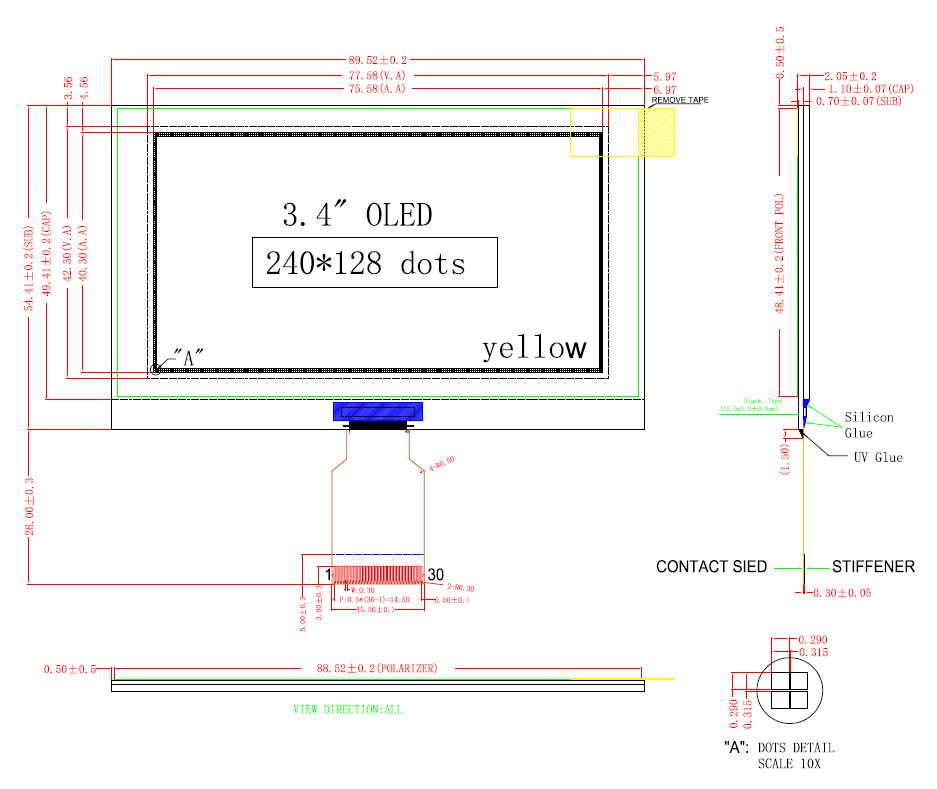

4 Outline Dimension (Panel) 89.52 (W) x 54.41(H) mm²
5 Pixel Pitch 0.315 (W) x 0.315(H) mm²
6 Pixel Size 0.290 (W) x 0.290 (H) mm²
7 Driver IC SSD1322Z2 -
8 Display Color Green/Yellow -
9 Grayscale 4 Bit
10 Interface Parallel / Serial -
11 IC package type COG with ZIF tail -
12 Thickness 2.05±0.2 mm
13 Weight 20 g
14 Duty 1/128 -
