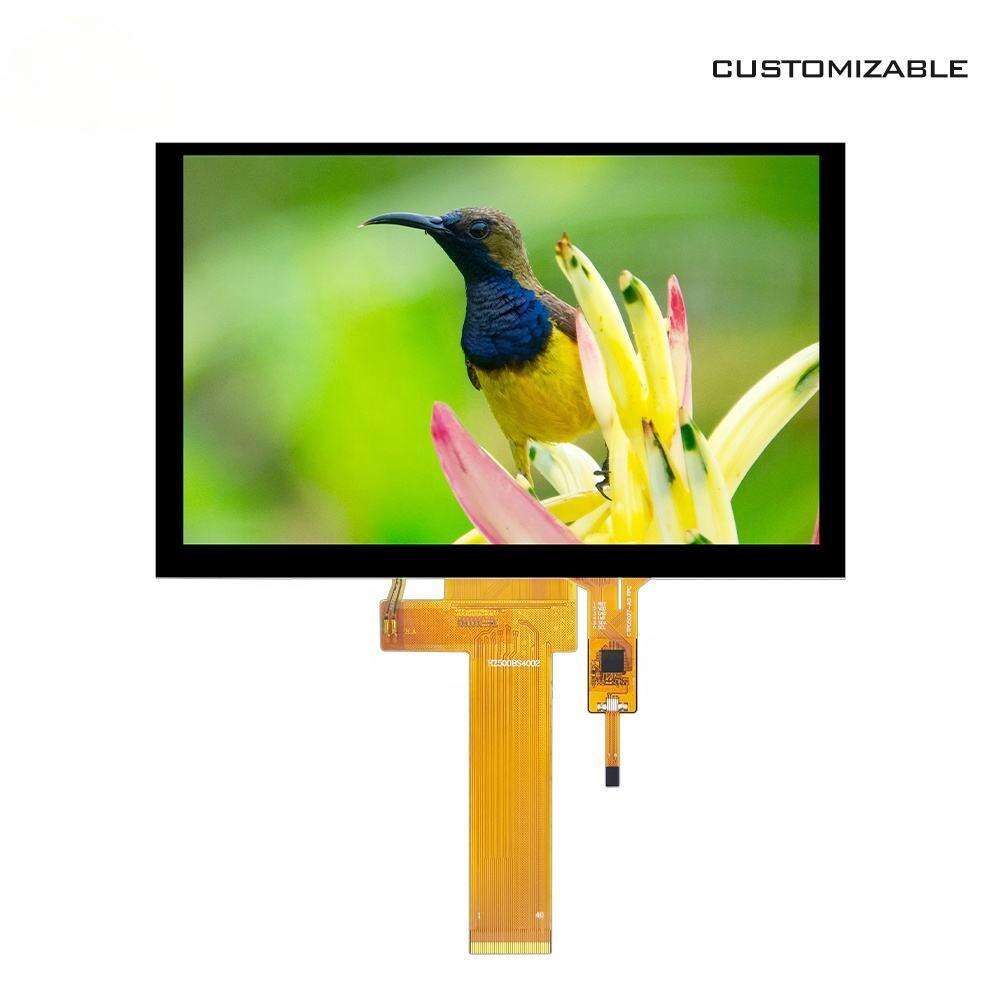

Landscape 5" 5 inch high resolution 800*480 LCD tft display panel IPS full color LVDS interface
- Overview
- Recommended Products

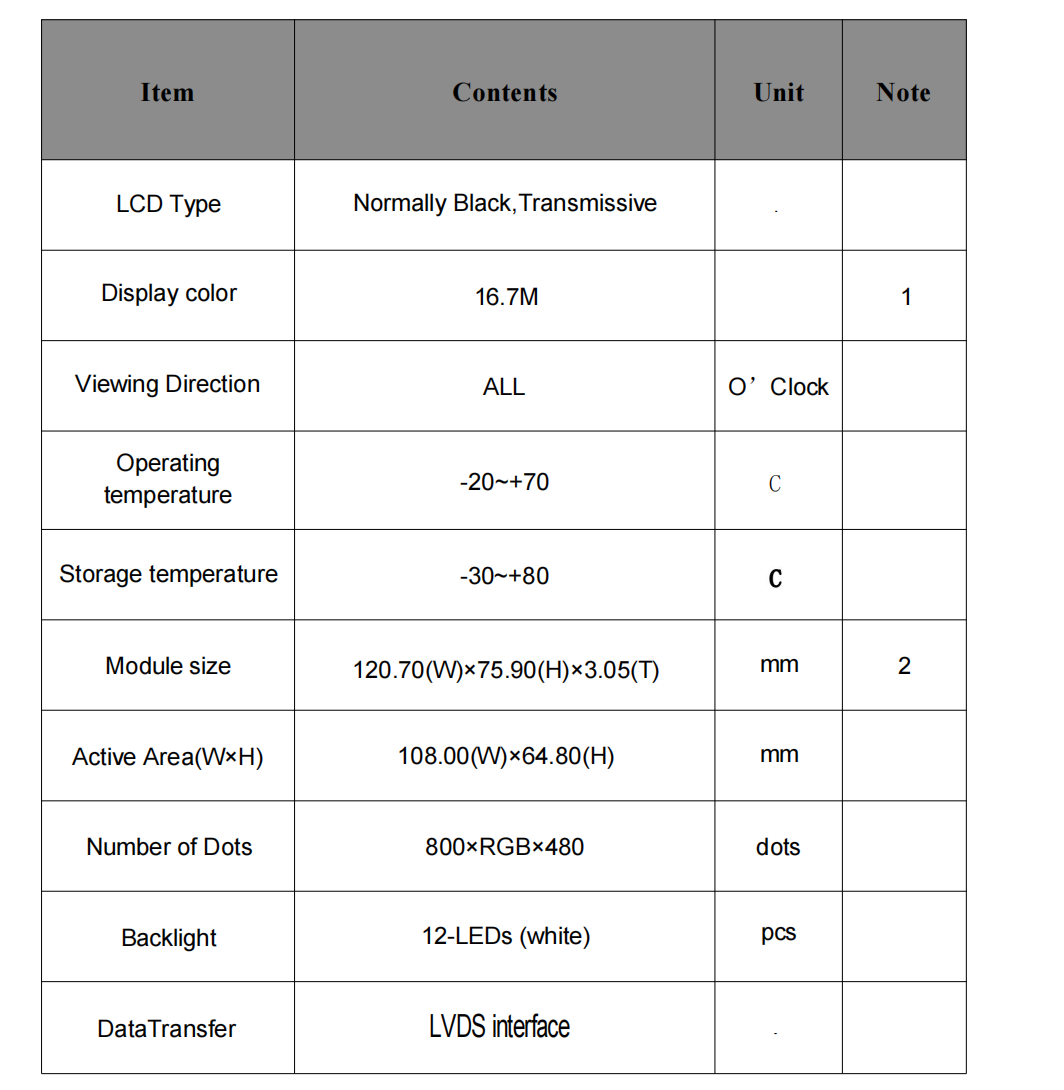

Size:5 inch Landscape LCD display
Resolution：800(H)*480(V)
Active area：108.00(W)×64.80(H)mm

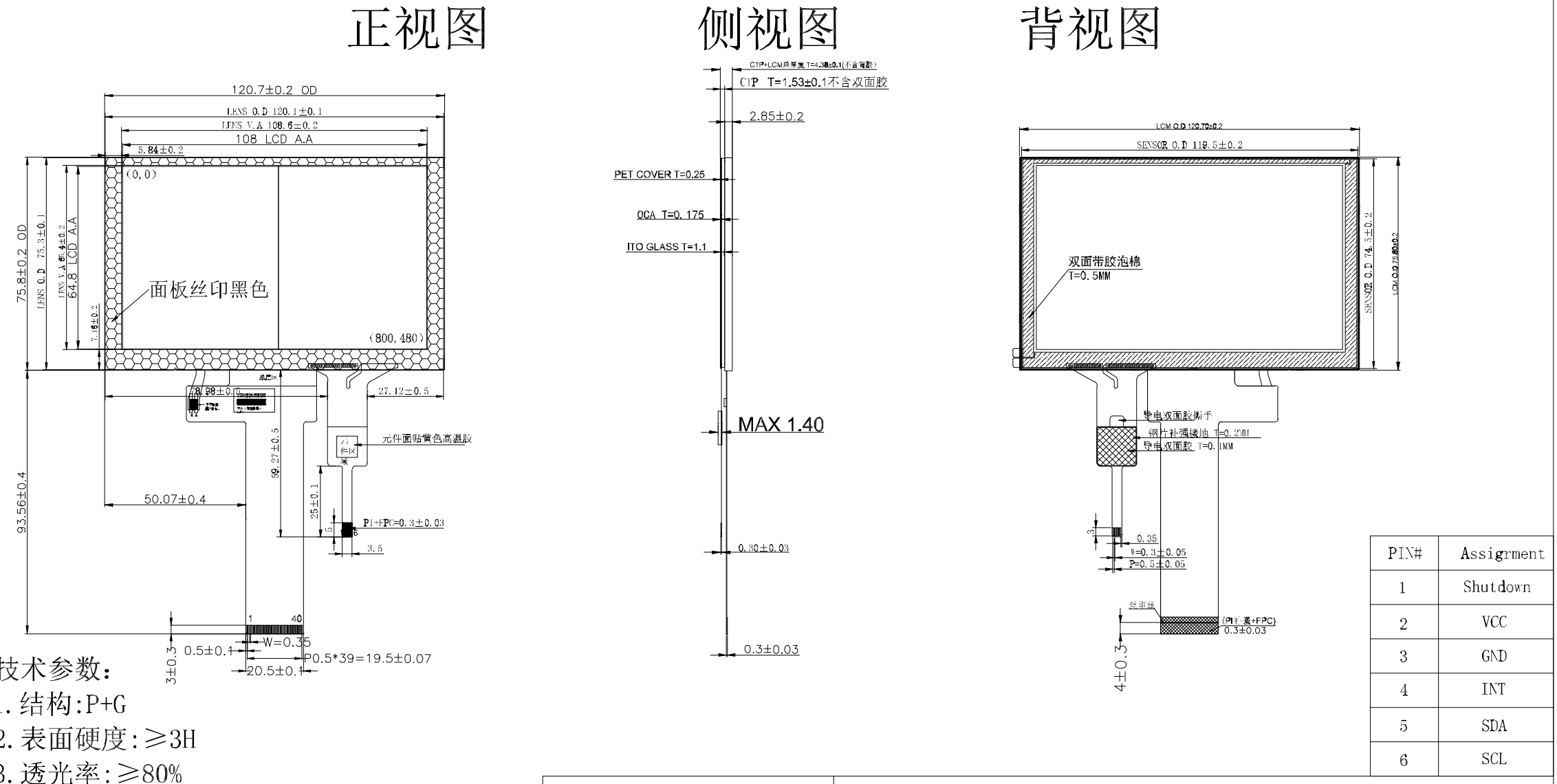

Module outline：120.70(W)×75.90(H)×3.05(T)mm
Pixels arrangement：RGB vertical stripe
Display mode：Normally Black
Viewing direction：All
Display color：16.7M
Backlight Type：12 White LED

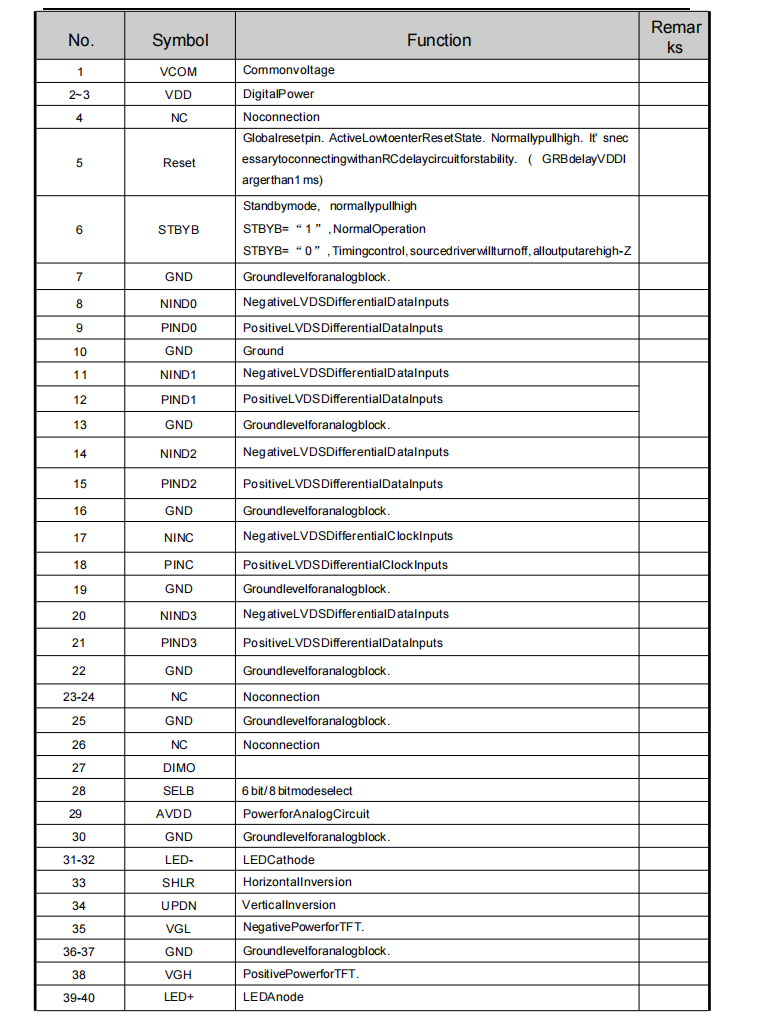

Interface Type：LVDS
Operation Temperature：-20~70℃
Storage Temperature：-30~80℃
