Driver IC:SSD1327
Interface:SPI
Color options:White

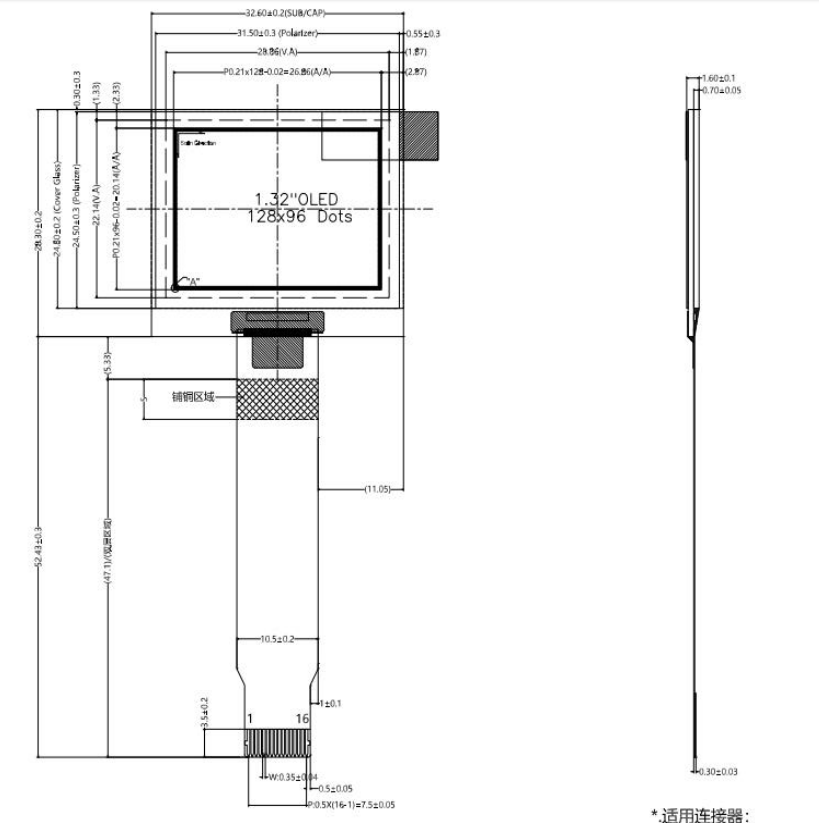

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 96
3) Module Size : 32.60 x 79.40 x 1.60 (mm)
4) Panel Size : 32.60 × 28.30 × 1.40 (mm)
5) Active Area : 26.86 × 20.14 (mm)
6) Pixel Pitch : 0.21 × 0.21 (mm)
7) Pixel Size : 0.19 × 0.19 (mm)
