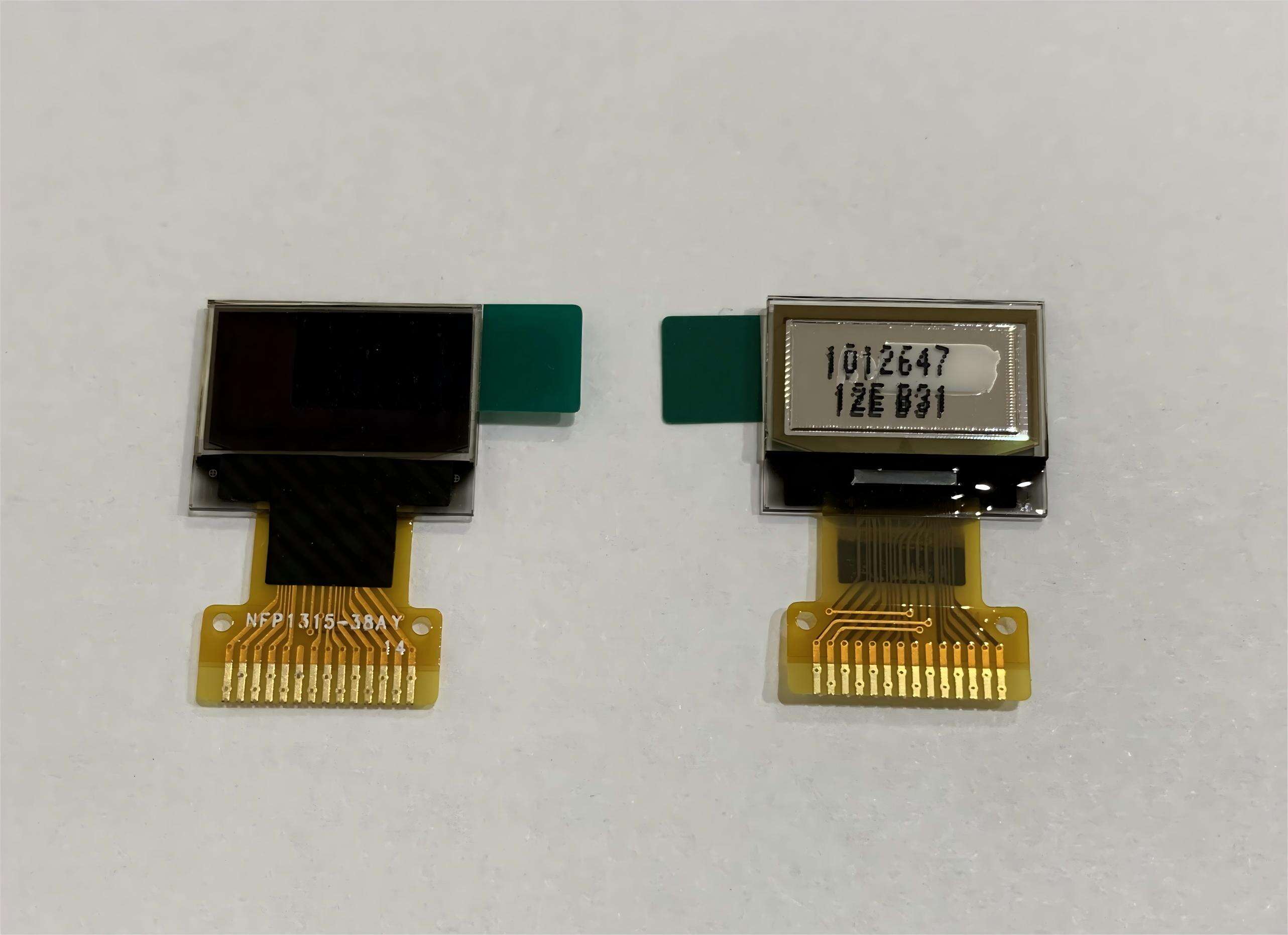

0.49 inch oled display panel 64x32 pixels white color 14 pin connector type oled screen 15mm length FPC oled panel
- Overview
- Recommended Products
Driver IC:SSD1315
Interface:I²C
Color options:Blue/White
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/32 Duty
Mechanical Specifications
1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 64 x 32
3) Panel Size: 14.5 x 11.6 x 1.21 (mm)
4) Active Area: 11.18x5.58 (mm)
5) Pixel Pitch: 0.175 x 0.175 (mm)
6) Pixel Size: 0.155 x 0.155 (mm)
