Type:4.58inch LCD display panel
Drive element:a-Si TFT

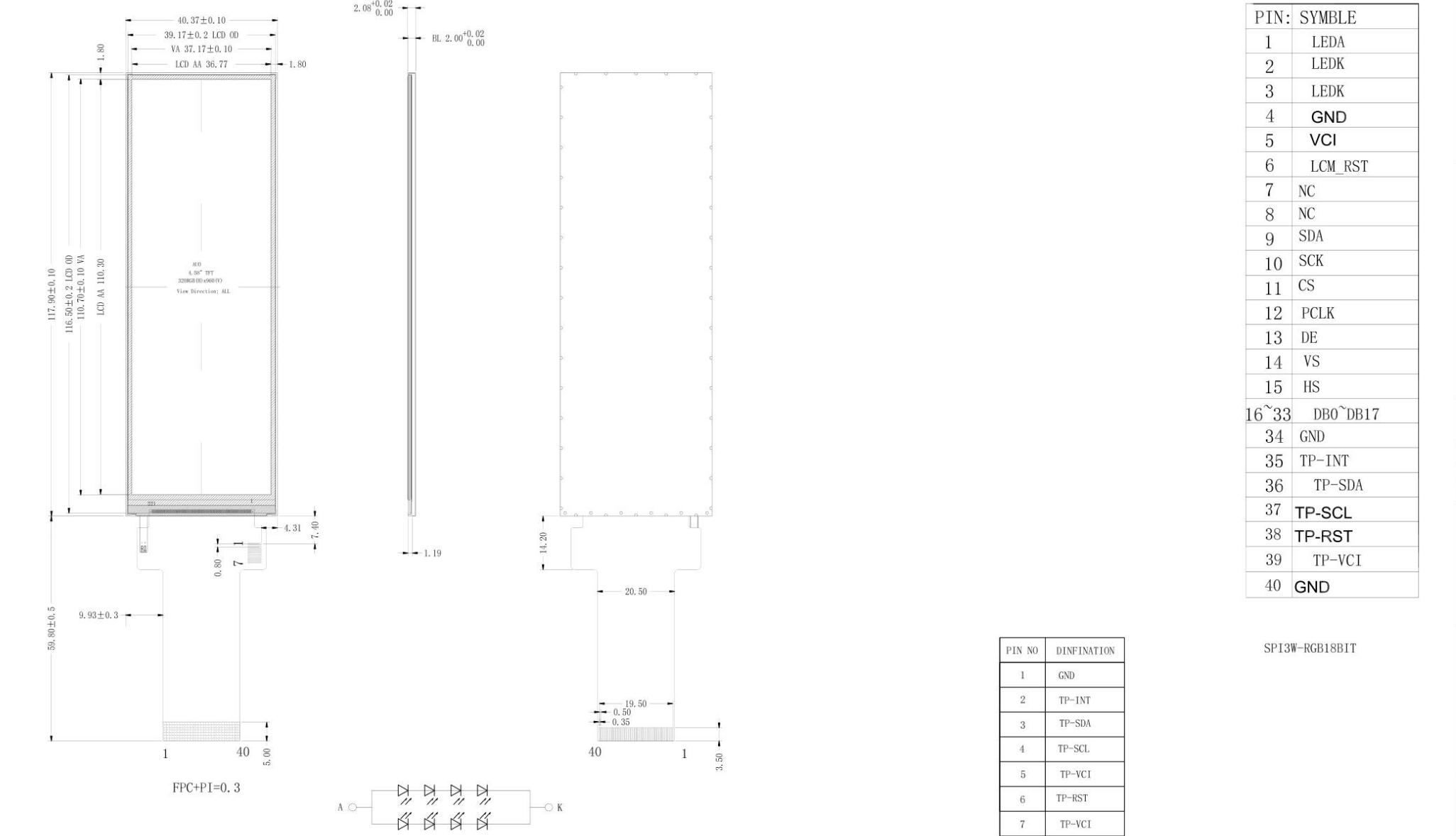

LCM outline size:40.37 (H) x 117.90 (V)mm
Active area:36.77 (H) x 110.30 (V)mm
Number of pixels:320(H)X960(V)pixels
Pixel arrangement:RGB stripe
Pixel Pitch:114.9x114.9um
display color:16.7m color
Viewing direction:ALL
Controller / Driver:ST7701S
Data interface:SPI3W+RGB18bit
Backlight:8 White LEDs In Parallels
