1 LCD Size: 0.85inch(Diagonal)
2 Display Mode :Normally black
3 Resolution :128(H)RGB x 128(V)
4 Dot pitch: 39.6 (H) x 118.8(V) um
5 Active area :15.2064(H) x 15.2064 (V) mm

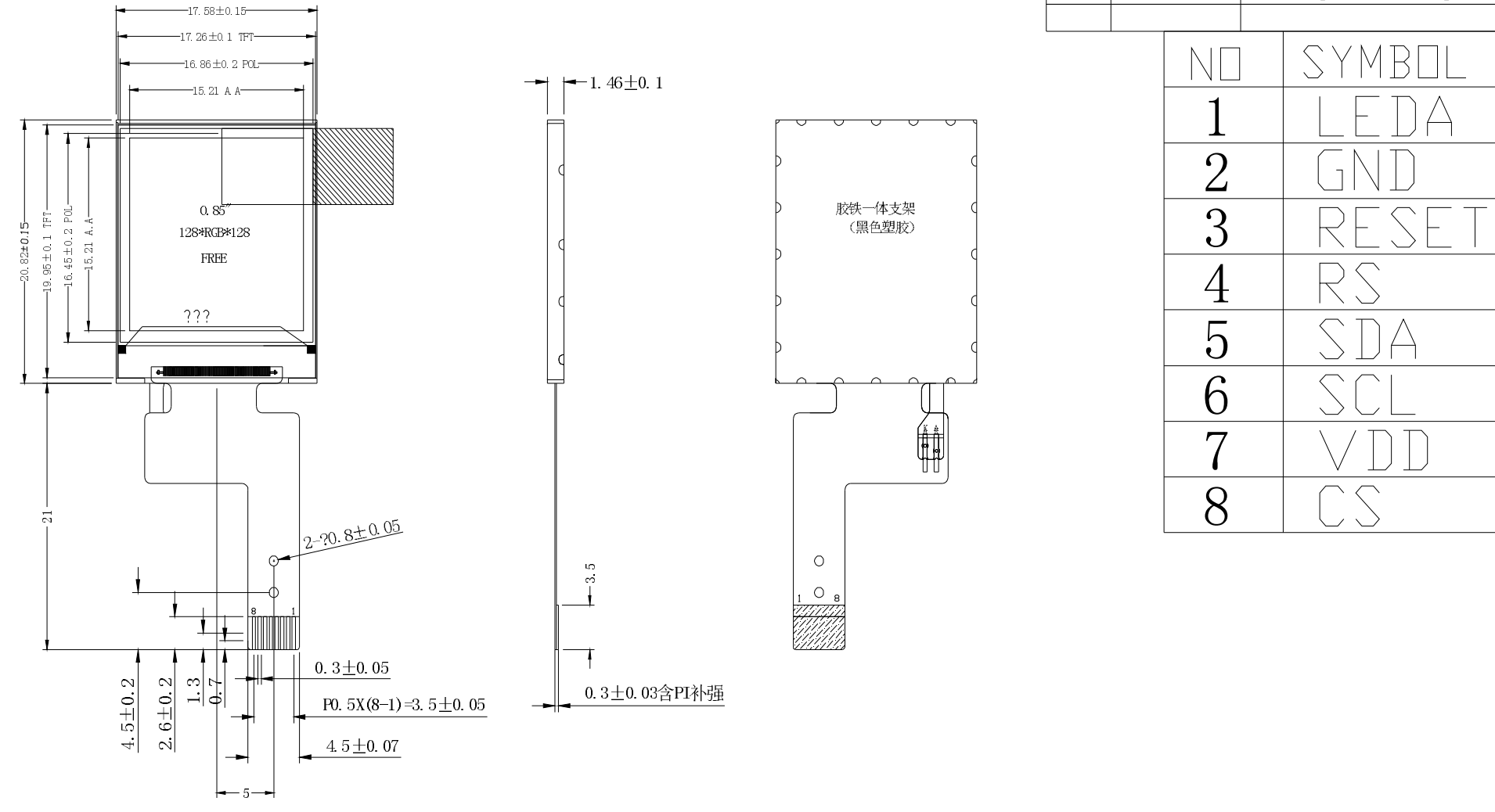

6 Module size :17.58(H) x 20.82(V) x1.5(D) mm
7 Color arrangement: RGB Vtertical stripe
8 Interface: SPI4 LINE
9 Drive IC: GC9107
11 Viewing Direction :All View
12 Backlight: 1 White LED
13 Operating Temp.-20℃~ + 70℃
14 Storage Temp.-30℃~+ 80℃
