Driver IC: SSD1363
Interface:Parallel/I²C/4-wireSPI
Color options:Yellow/White
1.1 Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome with 16 Gray Scales (Yellow)
3) Drive Duty: 1/128 Duty
1.2 Mechanical Specifications

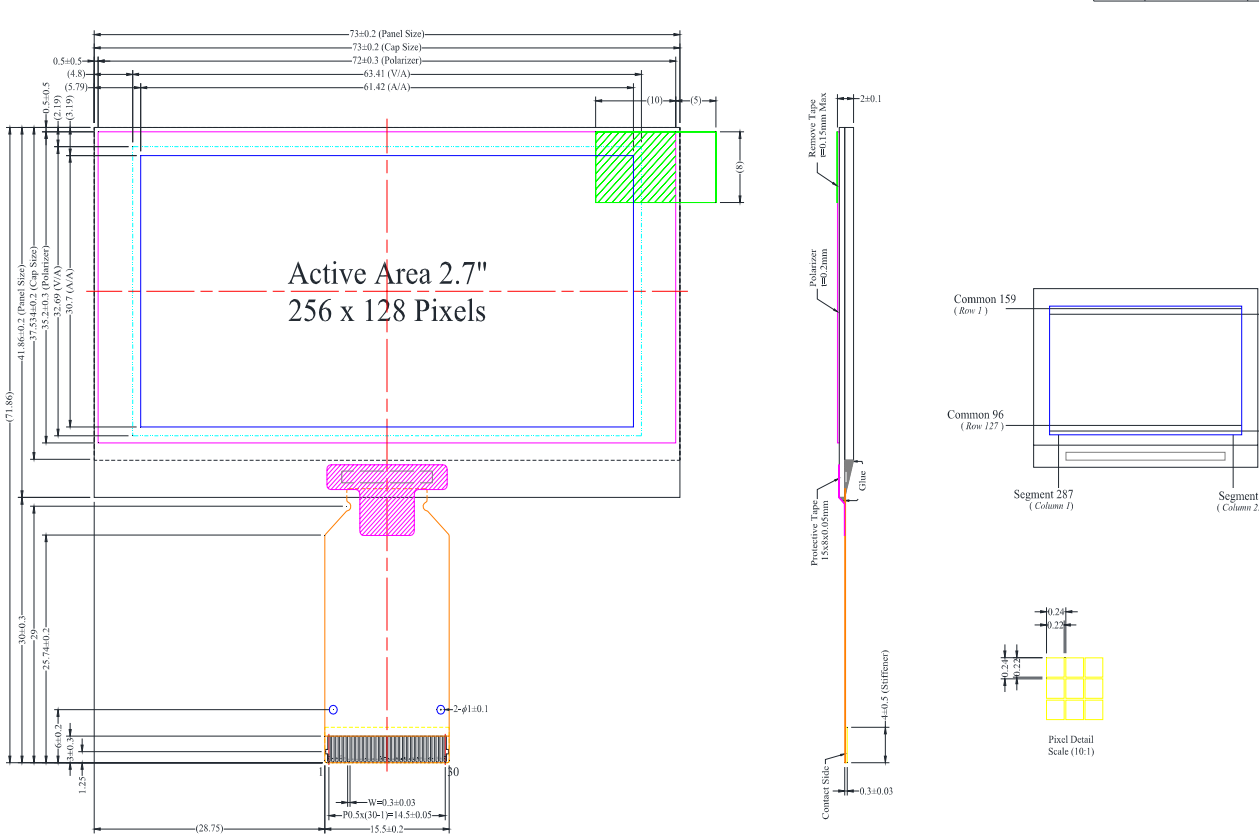

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 256 × 128
3) Module Size: 71.86 × 73.00 × 2.00 (mm)
4) Panel Size: 41.86 × 73.00 × 2.00 (mm) including “Polarizer”
5) Active Area: 30.70 × 61.42 (mm)
6) Pixel Pitch: 0.24 × 0.24 (mm)
7) Pixel Size: 0.22 × 0.22 (mm)
8) Weight: 12.4 (g) ±10%
