Driver IC:SSD1312
Interface:Parallel/I²C/4-wireSPI
Color options:White
1.1 Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : Monochrome (White)
3) Drive Duty : 1/32 Duty
1.2 Mechanical Specifications

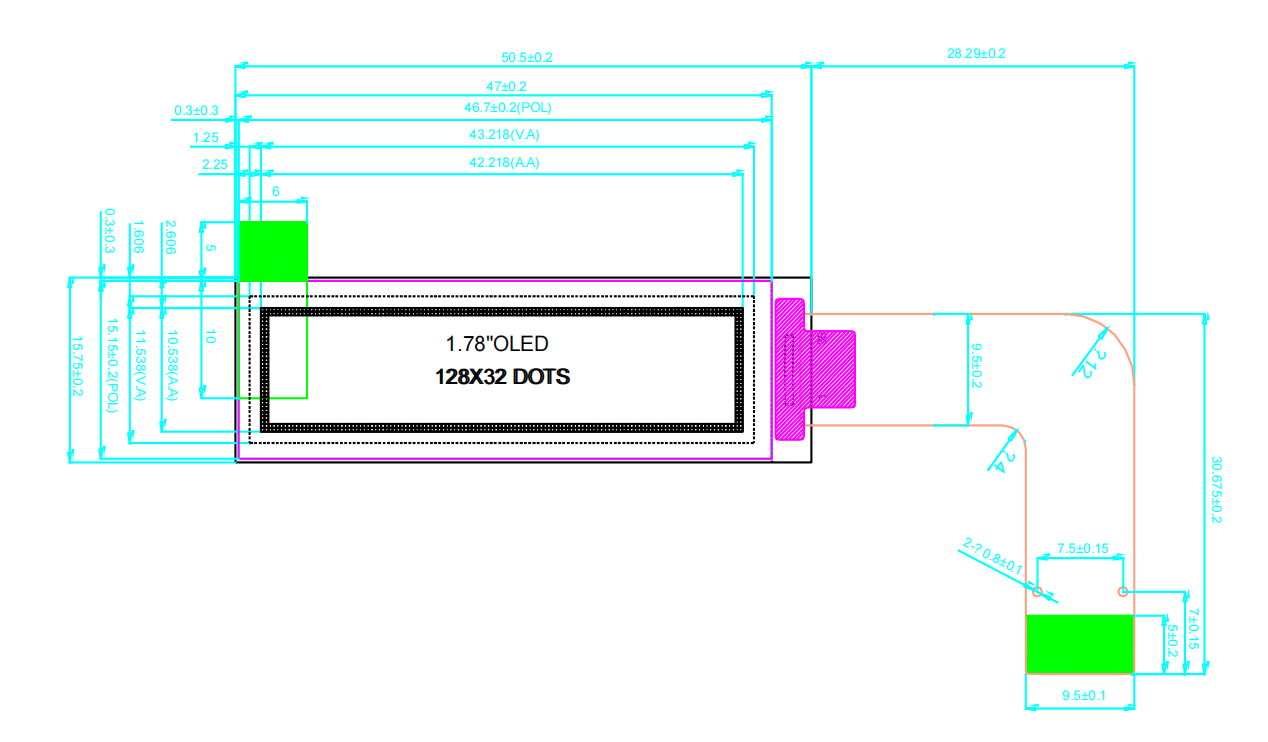

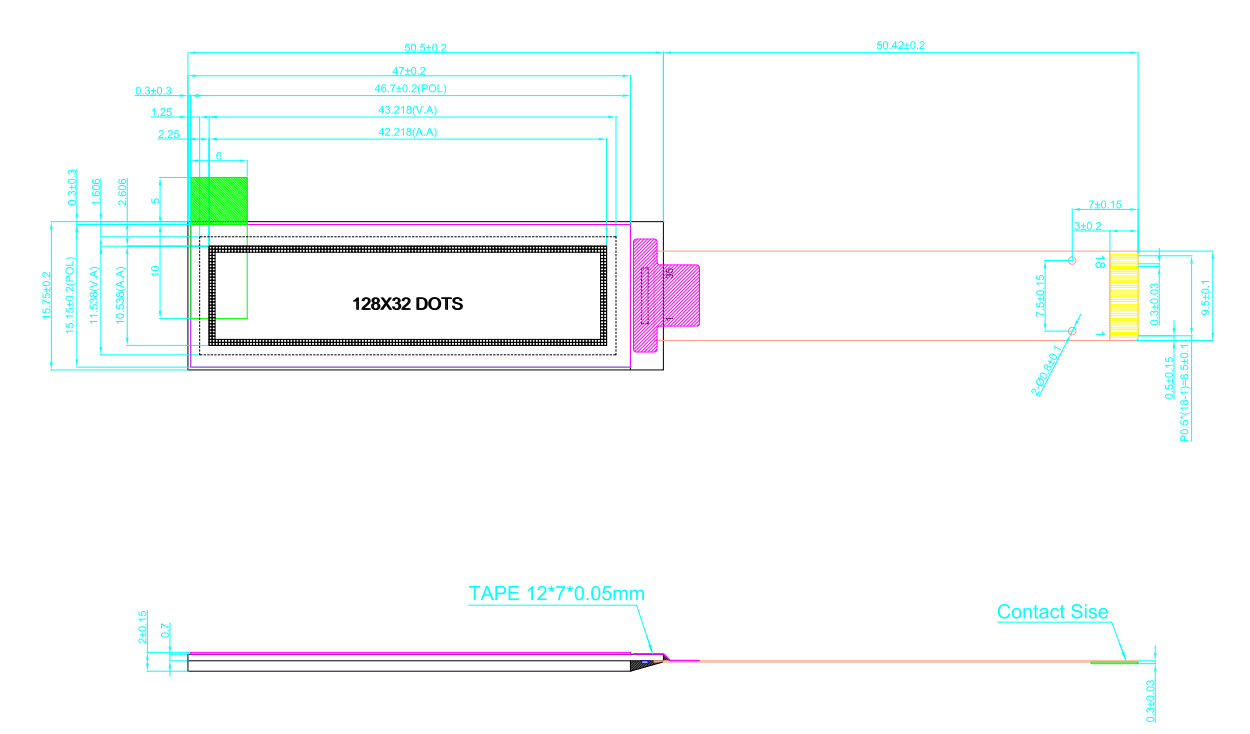

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 32
3) Module Size : 170.5 × 15.75 × 2.00 (mm)
4) Panel Size : 50.50 × 15.75 × 2.00 (mm) including “Anti-glare Polarizer”
5) Active Area : 42.22 × 10.54 (mm)
6) Pixel Pitch : 0.33 × 0.33 (mm)
7) Pixel Size : 0.31 × 0.31 (mm)
8) Weight : 3.40 (g) ± 10%
