1.54 inch 1.54" 200x200 eink screen resolution white black color E-ink Display module E-paper EPD e ink display panel for ESL
Screen Size:1.54
Resolution:200*200 Pixels
Active Area:27.00*27.00
Pixel pitch:0.135*0.135mm
Active area: 27*27mm

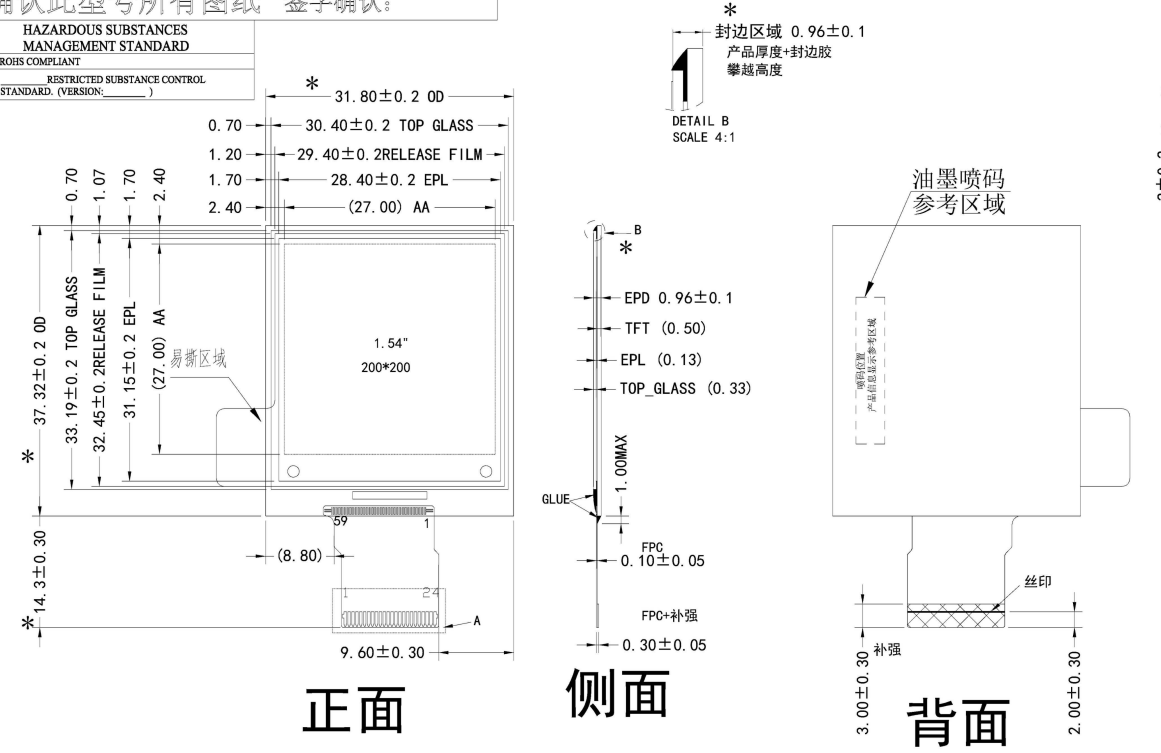

Outline Dimension: 31.8*37.32*0.96mm
Interface:SPI
Color options:BW/BWR/BWYR
Color options:BW/BWR/BWYR
- Overview
- Recommended Products
- 1.54 inch E-ink display module with 200x200 resolution
- White and black monochrome display for clear text and graphics
- Electronic paper technology with bistable image retention
- SPI interface for straightforward system integration
- Ultra-low power consumption for battery-powered devices
- Compact size suitable for ESL, smart labels, and portable terminals
- Wide viewing angle with readable performance in different lighting conditions
- RoHS and ISO-aligned manufacturing support
- OEM and customization options available for B2B projects
-
Stable performance for industrial and commercial applications
- Electronic shelf labels (ESL) for retail pricing and product information
- Smart labels for warehouse and logistics management
- Wearable devices such as smart tags and fitness accessories
- Industrial instruments and portable measurement tools
- Smart home control panels and sensor displays
- Access control cards, name badges, and digital tags
- Medical and healthcare devices requiring readable static information
-
IoT terminals and low-power information panels
Product Overview
The 1.54 inch 1.54" 200x200 eink screen is a compact monochrome E-ink display module designed for ESL, smart labels, industrial instruments, and low-power information panels. With a 200x200 resolution, white and black color support, and SPI interface, this E-paper display panel delivers clear static content with ultra-low power consumption. It is an ideal EPD module for B2B customers seeking reliable, readable, and energy-efficient electronic paper display solutions for OEM and customization projects.
Detailed Product Description
The 1.54 inch 1.54" 200x200 eink screen resolution white black color E-ink Display module is a high-performance E-paper display panel developed for applications that require crisp monochrome content, long battery life, and stable visual performance. As a professional E-ink display module, it combines a 1.54-inch active area with a 200x200 pixel resolution, producing sharp text, simple graphics, and clearly defined barcodes or icons. The white and black color scheme supports high contrast readability, making it suitable for electronic shelf labels, wearable devices, smart home terminals, and portable industrial equipment.
This EPD e ink display panel uses electronic paper technology, which means the image remains visible even when power is removed. That characteristic is especially valuable for ESL systems, where labels need to show pricing or product information continuously while consuming minimal energy. The module is engineered for easy integration, with a standard SPI interface that supports fast communication with common microcontrollers. Its compact outline and lightweight structure allow designers to fit it into space-constrained products without sacrificing display clarity.
For B2B buyers, this 1.54 inch E-ink display module offers a practical balance between size, resolution, power efficiency, and cost. It is suitable for mass production, OEM projects, and customized display solutions. Topwin Technology provides engineering support, customization capability, and reliable manufacturing to help customers match the display to their equipment and market requirements.
Key Features
Technical Advantages
The 1.54 inch 200x200 E-ink display panel stands out for its combination of electronic paper characteristics and practical integration features. Unlike conventional LCD modules, this EPD e ink display panel does not require a backlight, which helps reduce power demand and supports longer operating time in battery-driven products. The bistable nature of E-ink technology allows the display to hold content without continuous refreshing, making it highly efficient for static information such as shelf labels, name tags, sensor readings, and access credentials.
The 200x200 resolution provides enough detail for alphanumeric content, small icons, and simple QR or barcode patterns. The white and black color mode delivers strong contrast, which supports readability in retail, warehouse, office, and industrial environments. The SPI interface is widely supported by mainstream microcontrollers, reducing development time and simplifying hardware design. For customers comparing E-ink display solutions, this module offers a reliable combination of size, clarity, and low-power operation.
From a manufacturing perspective, the module is designed for consistent quality and scalable production. Topwin Technology has more than 21 years of experience in electronic display manufacturing and provides OEM service, customized displays, and engineering support for different industries. This makes the 1.54 inch E-ink display module suitable not only for standard products but also for specialized B2B projects that require adjustments in interface, cover lens, connector, or operating behavior.

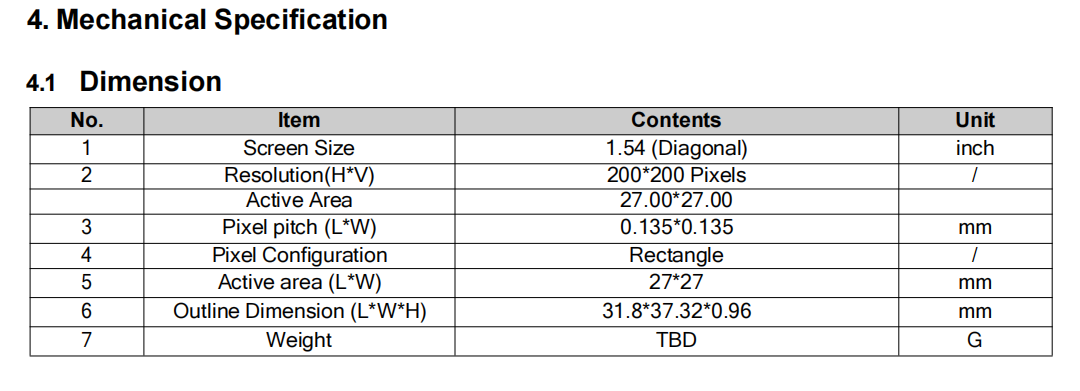

Specifications
Parameter |
Specification |
Screen Size |
1.54 inch |
Resolution |
200 × 200 Pixels |
Active Area |
27.00 × 27.00 mm |
Pixel Pitch |
0.135 × 0.135 mm |
Outline Dimension |
31.8 × 37.32 × 0.96 mm |
Interface |
SPI |
Color Options |
BW / BWR / BWYR |
Applications
The 1.54 inch 1.54" 200x200 eink screen is widely used in applications where compact size, low power, and clear monochrome display performance are important. Common use cases include:
For B2B customers, this E-paper display panel can be adapted to different product designs. Its small footprint makes it suitable for devices where space is limited, while the 200x200 resolution supports legible content without increasing the overall module size. In ESL systems, the display can show price, unit, barcode, and promotional markers. In industrial equipment, it can present status, measurement values, or operating instructions. This flexibility makes the module a practical choice for OEM projects and customized display solutions.
Business Value
Choosing the right E-ink display module affects product performance, user experience, and long-term operating costs. This 1.54 inch E-ink display module helps businesses create products that are easy to read, energy efficient, and suitable for continuous information display. For ESL manufacturers, smart label providers, and industrial device makers, the display supports faster product development and smoother integration.
The low power requirement can help extend battery life in portable and wireless products, which is important for IoT devices and remote monitoring systems. The bistable image retention supports static content display without constant power, making the module suitable for applications where power availability is limited. The white and black color mode keeps content clear and professional, which is valuable for retail, logistics, healthcare, and industrial environments.
Topwin Technology’s 21+ years of manufacturing experience, OEM capability, and ISO and RoHS aligned processes provide additional confidence for B2B buyers. Customers can work with the engineering team to customize displays for different equipment and industries. This combination of product performance, customization support, and manufacturing reliability creates strong commercial value for businesses building ESL, smart label, and low-power display products.
FAQ
Q1: What is the resolution of this 1.54 inch E-ink display module?
A1: It has a 200x200 resolution, suitable for clear text, icons, and simple graphics.
Q2: What colors does this E-paper display support?
A2: This model supports white and black monochrome display.
Q3: What interface does the EPD e ink display panel use?
A3: It uses an SPI interface, which is widely supported by common microcontrollers.
Q4: Can the display keep content without power?
A4: Yes. As an E-ink display, it uses bistable technology, so the image remains visible without continuous power.
Q5: Is this module suitable for ESL applications?
A5: Yes. Its compact size, low power consumption, and clear monochrome display make it well suited for electronic shelf labels and smart labels.
Q6: Can Topwin Technology provide OEM or customized displays?
A6: Yes. Topwin Technology offers OEM service and customized display solutions for different industries and equipment requirements.
Q7: What certifications are associated with the manufacturing process?
A7: The company follows ISO and RoHS aligned manufacturing practices.
