Display Specifications
Display Mode:

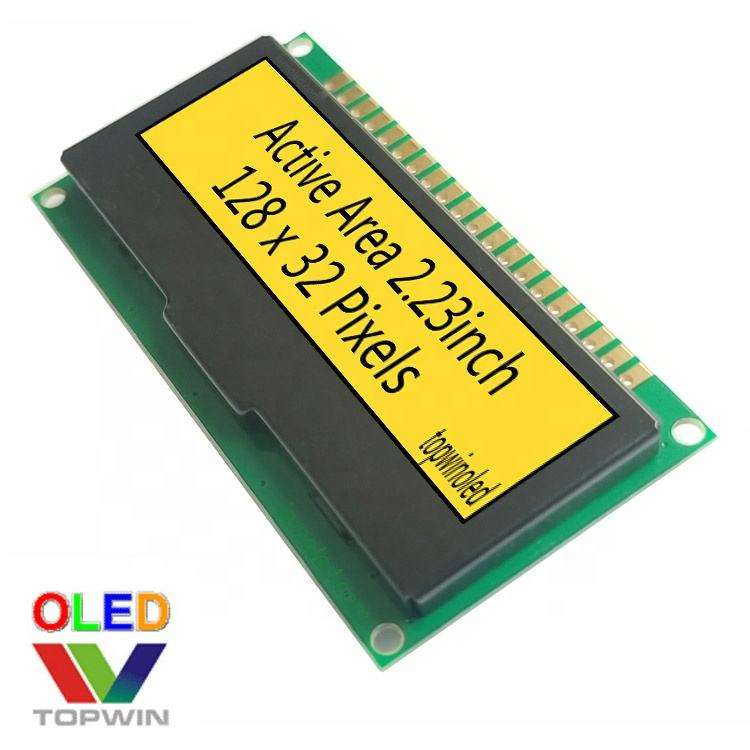

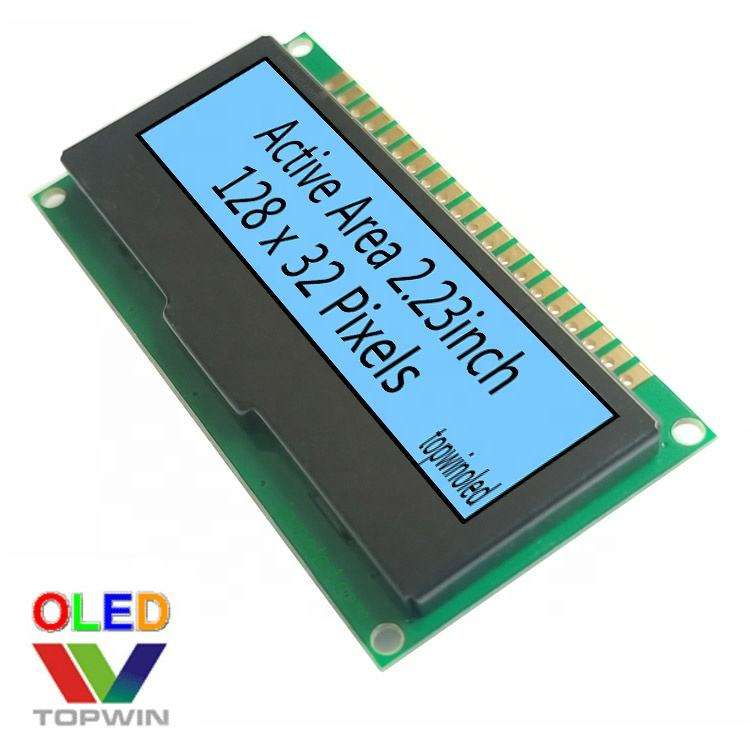

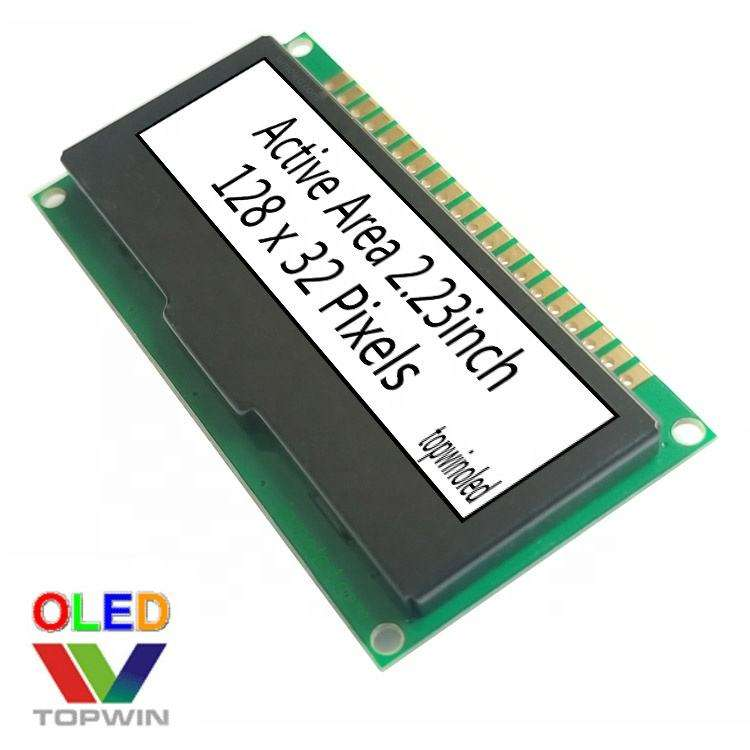

Passive Matrix：Green/Blue/Yellow/White
Interface:8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C
Drive Duty:1/32
Driver IC:SSD1305/1309
Shell:0.5T
Mechanical Specifications

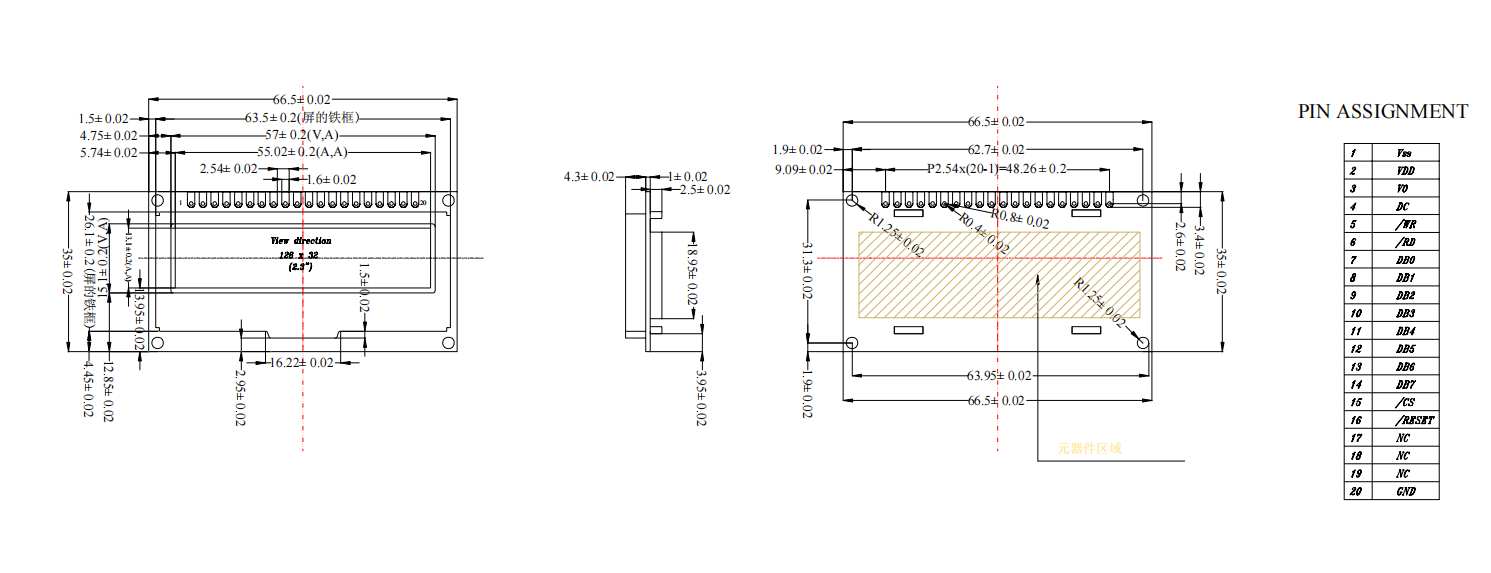

Outline Drawing:66.5(W)x35(H)x7.8Max(T) mm
View Area:57.0(W)x15.1(H) mm
Active Area:55.02(W)x13.1(H) mm
Resolution:128dots x 32dots
Pixel Pitch:0.43(W)x0.41(H) mm
Pixel Size:0.41(W)x0.39(H) mm
